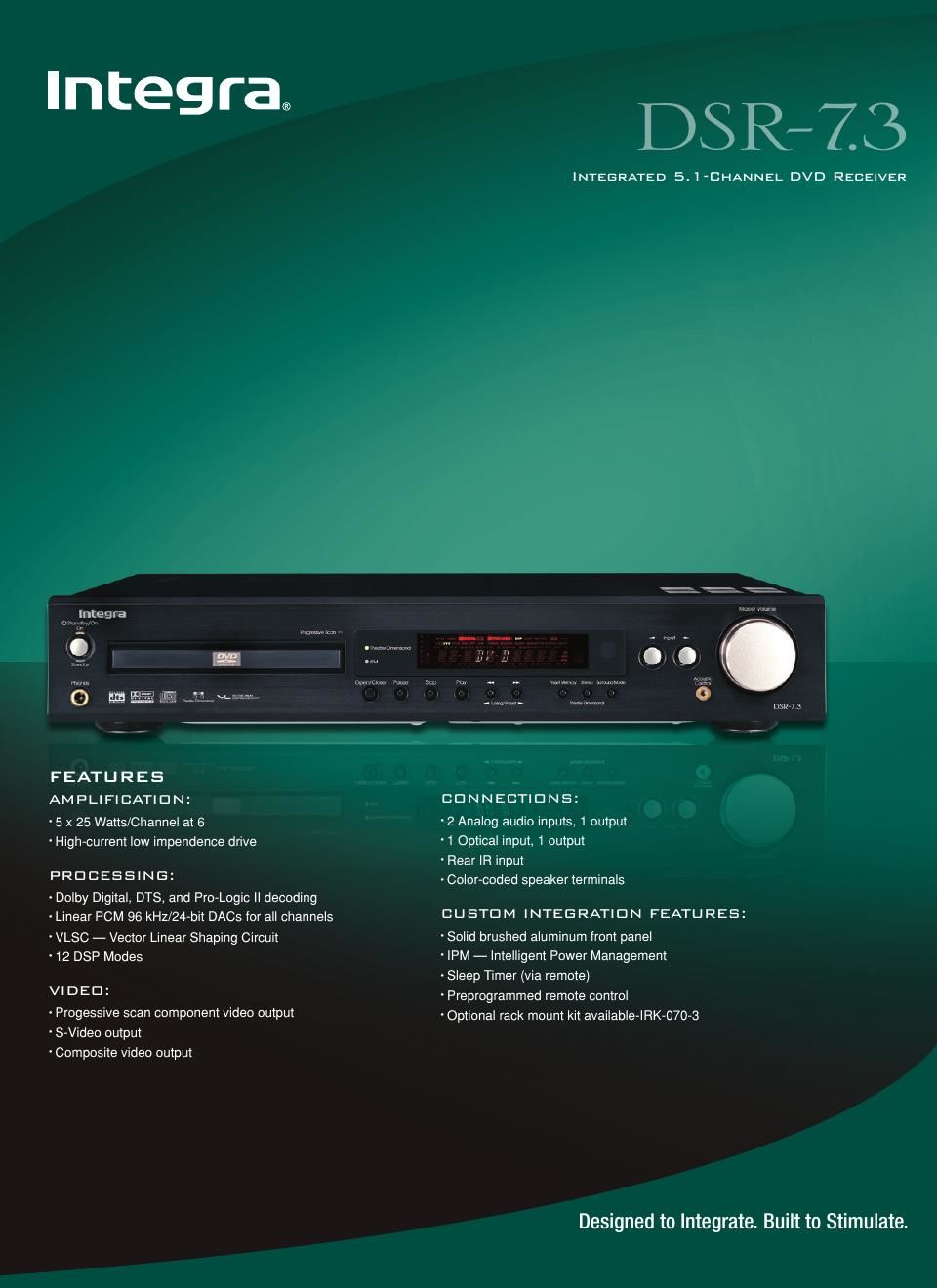

Integra dsr 7 3 brochure

Page 1

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 25 W per channel min. RMS into 6Ω, two channels driven, 1,000 Hz with no more than 10% total harmonic distortion. Frequency response: 20 Hz to 30 kHz: +/- 0.8 dB Signal-to-noise ratio: 100 dB (IHF A, 0.5 V input) Total harmonic distortion: 10% at rated power IM distortion: 10% at rated power Damping factor: 40 at 8Ω Acoustic control: 1: +9 dB at 82 Hz 2: +9 dB at 82 Hz +6 dB at 10,000 Hz Muting: -50 dB INPUT SENSITIVITY AND IMPEDANCE Line (TV/Line, MD/CDR/Tape): 200 mV/50 kΩ OUTPUT LEVEL AND IMPEDANCE Rec out (MD/CDR/Tape): 200 mV, 2.2 kΩ Pre out: 1 V 470Ω VIDEO OUTPUTS Component video: Y: 1.0 V (p-p), 75Ω, negative sync, RCA x 1 PB /PR: 0.7 V (p-p), 75Ω S-Video: Y: 1.0 V (p-p), 75Ω, negative sync, 4-pin mini DIN x 1 C: 0.286 V (p-p), 75Ω Composite video: 1.0 V (p-p), 75Ω, negative sync, RCA x 1 DVD PERFORMANCE Frequency response: 10 Hz to 44 kHz (96 kHz) Signal-to-noise ratio (digital audio): >100 dB Audio dynamic range (digital audio): >93 dB Harmonic distortion (digital audio): Less than 0.025% Wow and flutter: Below threshold of measurability FM Tuning range: 87.50-108.00 MHz (50-kHz steps) Usable sensitivity, stereo: 17.2 dBf, 2.0 µV (75 ohms IHF) AM Tuning range: 530–1710 kHz (10-kHz steps) Usable sensitivity: 30 µV) GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 130 W Dimensions (W x H x D): 17-1/8 x 3-3/16 x 14-7/16 435 x 81 x 366 mm Weight: 15.4 lbs. (7.0 kg) Optional mounting kit: IRK-070-3 U dimension: 2U * Some formats not supported.Product features and specifications subject to change without notice. Integrated 5.1-Channel DVD Receiver DSR-7.3
