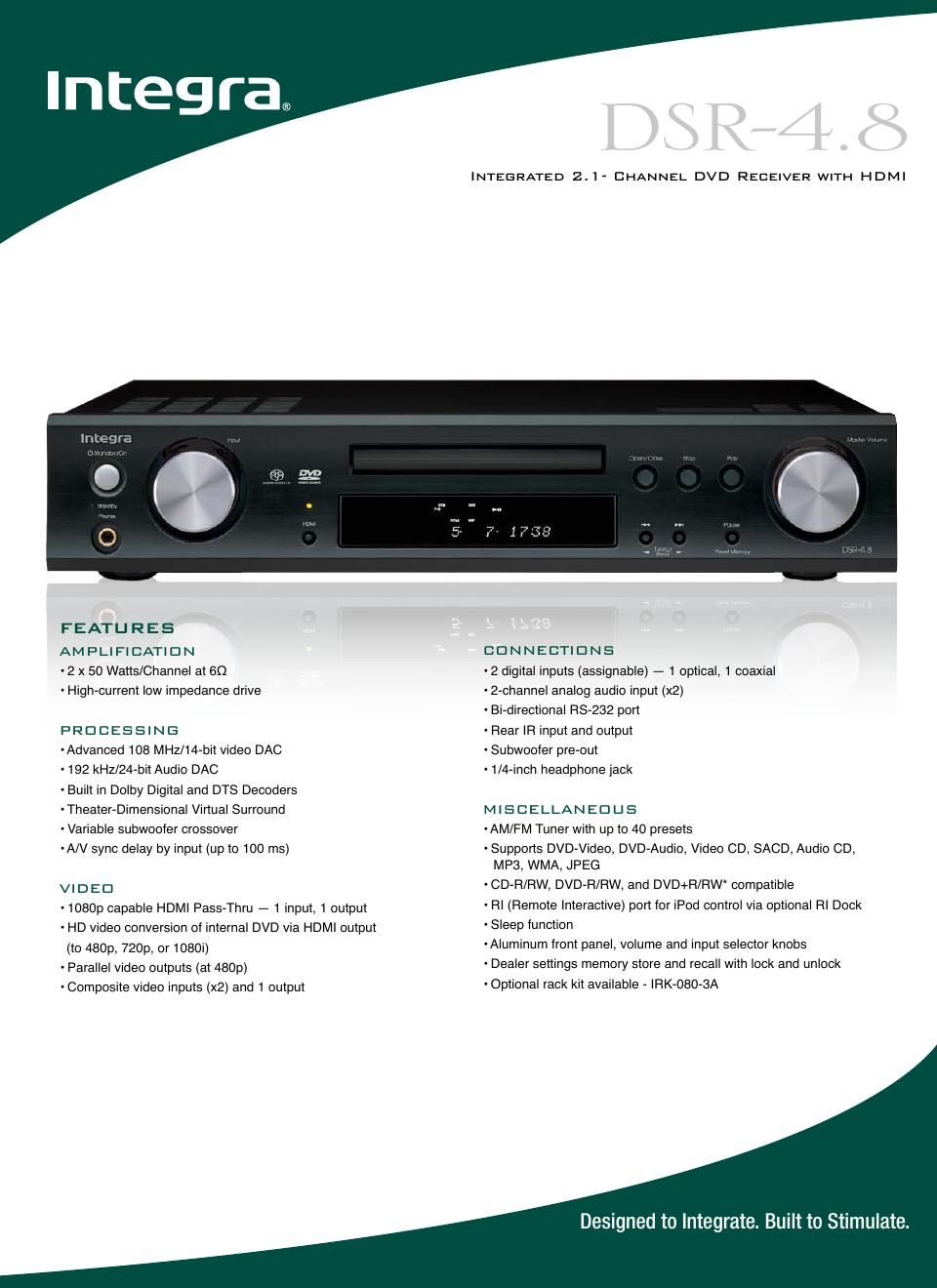

Integra dsr 4 8 brochure

Page 1

Designed to Integrate. Built to Stimulate. www.integrahometheater.com SPECIFICATIONS AMPLIFIER Continuous average power output (FTC) All channels: 50 W per channel min. RMS into 6Ω, two channels driven, 40 Hz - 20 kHz with no more than 0.9% total harmonic distortion. Frequency response: 20 Hz - 100 kHz/+0 dB - 1.5 dB (Direct mode) Signal-to-noise ratio: 106 dB (LINE, IHF-A) Total harmonic distortion: 0.9% (Power Rated) 0.08% (1 kHz, 1 W) Input Sensitivity: 200 mV/47 k (LINE) Signal to Noise Ratio: 106 dB (LINE, IHF-A) Speaker Impedance: 6 ohm - 16 ohm VIDEO OUTPUTS Component video: Y: 1.0 V (p-p), 75Ω, negative sync PB /PR: 0.7 V (p-p), 75Ω Composite video: 1.0 V (p-p), 75Ω, negative sync TUNER FM Tuning range: 87.5-107.9 MHz AM Tuning range: 530–1710 kHz GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 118 W Dimensions (W x H x D): 17-1/8 x 3-9/16 x 16-5/16 435 x 90 x 415 mm Weight: 19 lbs. (8.6 kg) * Some formats not supported. Discs that have not been properly finalized may not be playable. Integrated 2.1- Channel DVD Receiver with HDMI Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. All trademarks and registered trademarks are the property of their respective holders. 12/2007 Printed in the USA DSR-4.8
