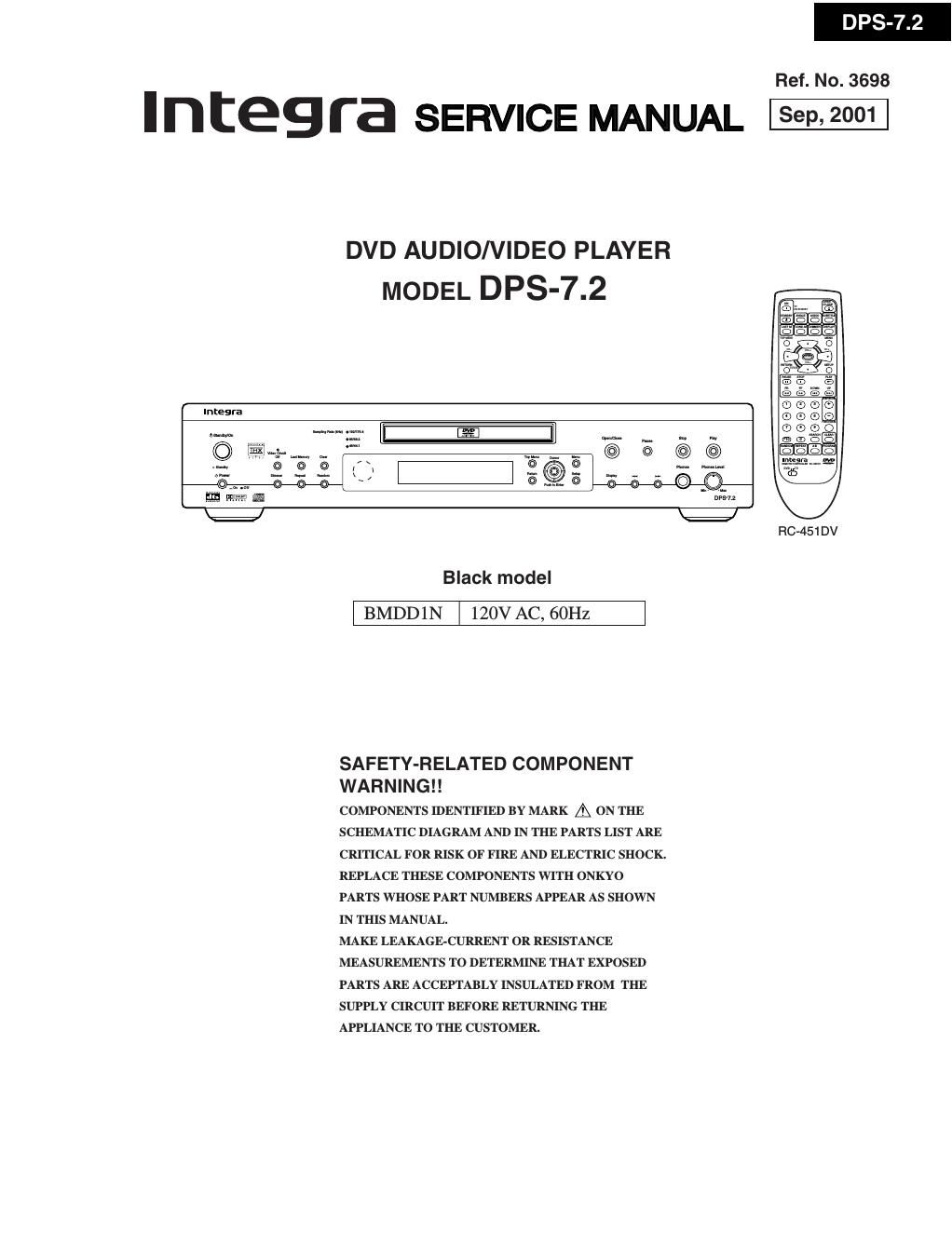

Page 1

Ref. No. 3698

Integ r a SERVICE MANUAL Sen, 2001

DVD AUDIONIDEO PLAYER
MODEL DPS-7.2

' Integra

RC-451DV

Black model
BMDDIN 120V AC, 60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS To DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Page 2

SPECIFICATIONS

l DVD Player

Power supply

Power consumption
Weight

External dimensions
Signal system

Regional restriction code
Laser

Frequency range (digital audio)

Signal-to-noise ratio (digital audio)
Audio dynamic range (digital audio)
Harmonic distortion (digital audio)
Wow and flutter

Operating conditions

I Outputs

Video output

S-video output
Component video output

Audio output (digital output Optical)
Audio output (digital output Coaxial)

Audio output (analog audio)

Audio output (5.1 channel analog audio)

AC 120 V, 60 Hz

16 W

3.6 kg, 7.9 lbs.

435 X 91 X 314 mm (W/H/D), 17-1/8" >< 3-9/16" >< 12-3/8
Standard NTSC

1

Semiconductor laser, wavelength 650 nm

DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz
DVD-Audio: 192 kHz sampling 4 Hz to 96 kHz
Audio CD: 4 Hz to 20 kHz

More than 106 dB

More than 100 dB

Less than 0.005 %

Below measurable level (less than 10.001 70 (W.PEAK))
Temperature: 5°C to 35°C, Operation status: Horizontal

1.0 V (p-p), 75 Q, negative sync., pin jack>< 2

(Y) 1.0 V (p-p), 75 Q, negative sync., Mini DIN 4-pin X 2

(C) 0.286 V (p-p), 75Q

(Y) 1.0 V (p-p), 75 Q, negative sync., pinjack X 2

(PB)/(PR) 0.7 V (p-p), 75 Q

Optical connecterx 2

0.5 V (p-p), 75 Q, pinjack><1

2.0 V (rms), 470 Q , pinjack (L, R) X 2

2.0 V (rins), 470 Q, pin jack (FRONT L, FRONT R, CENTER, SURR L,
SURR R, SUB WOOFER) X 1

Specifications and features are subject to change without notice.
