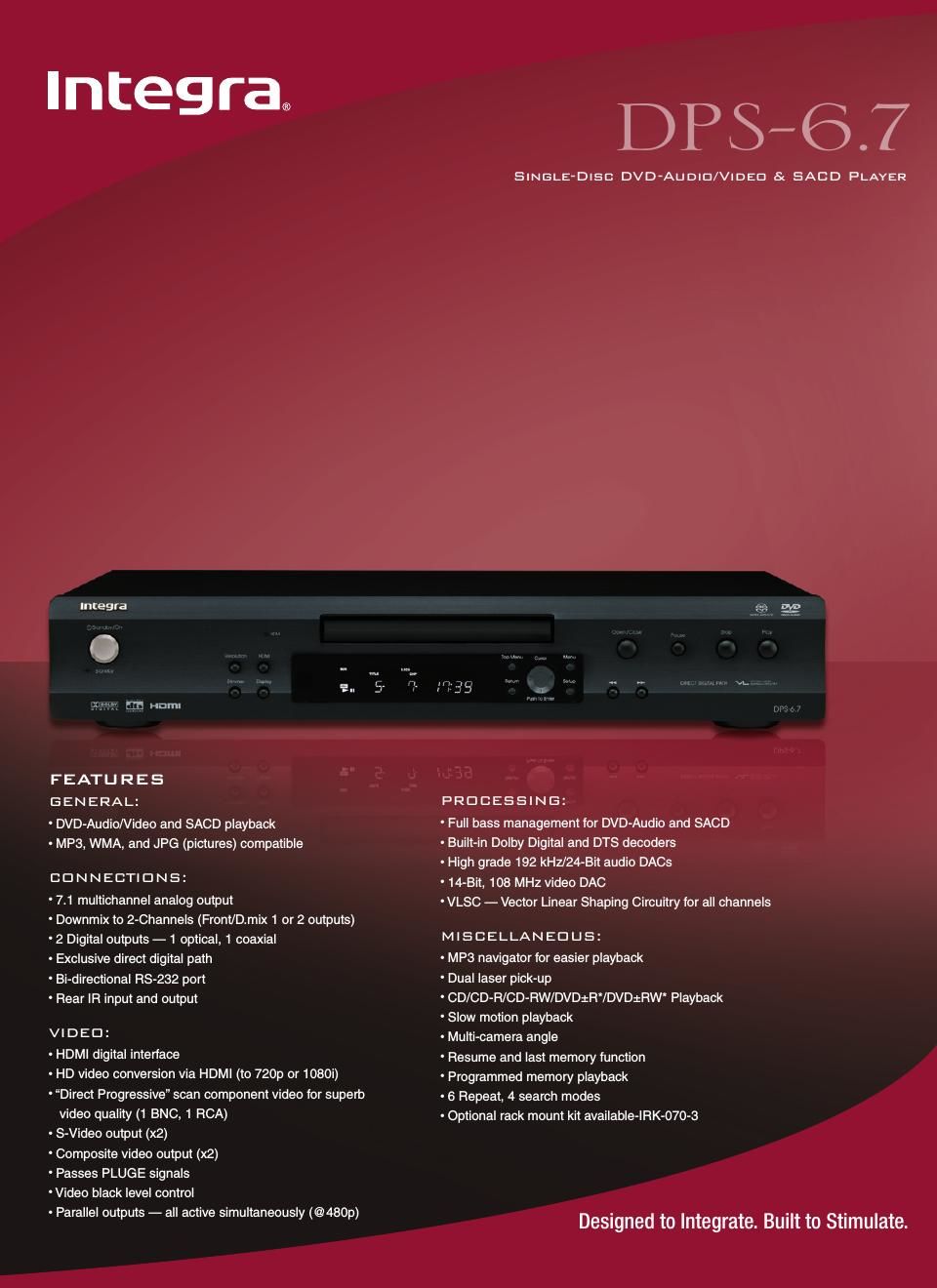

Integra dps 6 7 brochure

Page 1

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AUDIO PERFORMACE Frequency response DVD linear audio: 4 Hz-22 kHz @ 48 kHz sampling rate 4 Hz-44 kHz @ 96 kHz sampling rate DVD-Audio: 4 Hz-88 kHz @ 192 kHz sampling rate SACD: 4 Hz-88 kHz CD audio: 4 Hz-20 kHz Signal-to-noise ratio: 106 dB Audio dynamic range: 96 dB Harmonic distortion (digital audio): 0.003% Wow and flutter: Below threshold of measurability VIDEO OUTPUTS Component video: Y: 1.0 V (p-p), 75 Ω, negative sync, RCA x 1, BNC x 1 P B/PR: 0.7 V (p-p), 75 Ω S-Video: Y: 1.0 V (p-p), 75 Ω, negative sync, 4-pin mini DIN x 2 C: 0.286 V (p-p), 75 Ω Composite video: 1.0 V (p-p), 75 Ω, negative sync, RCA x 2 AUDIO OUTPUTS Optical: –22.5 dBm, optical connector x 1 Coaxial: 0.5 V (p-p), 75 Ω, RCA x 1 Analog, Front D.MIX/CTR/SUB: 2.0 V RMS, 440 Ω Surround 1,2: 2.0 V RMS, 440 Ω (Surr Mode 1) 1.4 V RMS, 440 Ω (Surr Mode 1 + 2) GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 17 W (0.4 W Standby) Dimensions (W x H x D): 17-1/8 x 3-3/16 x 12-5/16 435 x 81 x 312 mm Weight: 8.2 lbs. (3.7 kg) Optional mounting kit: IRK-070-3 U dimension: 2U * Some formats not supported.Product features and specifications subject to change without notice. Single-Disc DVD-Audio/Video & SACD Player DPS-6.7
