Integra dps 5 2 service manual

Page 1

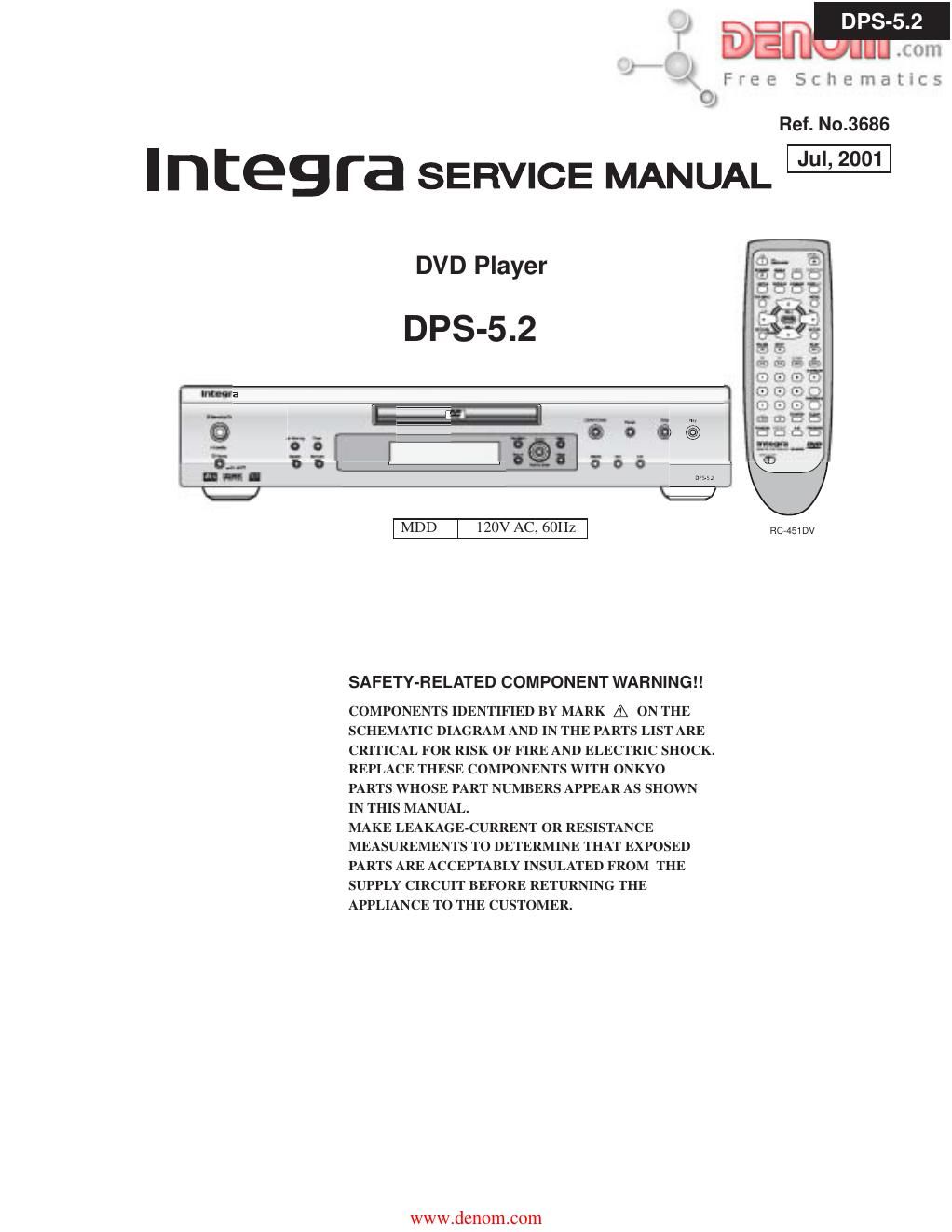

Integ r a SERVICE MANUAL """2°°

*' Frer: Schematms

Ref. No.3686

DVD Player

DPS-5.2

ima
0 ~ _ o
* 2 2 E Q
3.- o o P
I U I
bl
120V AC, 60Hz RCVASIDV

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

www.den0m.com

Page 2

SPECIFICATIONS " " C F 3 E 3: h "1 5 i

l DVD Player

Power supply AC 120 V, 60 Hz

Power consumption 14 W

Weight 3.4 kg, 7.5 lbs.

External dimensions 435 x 91 x 312 mm (W/H/D), 17-1/8" x 3-9/16" x 12-5/16"

Signal system Standard NTSC

Regional restriction code 1

Laser Semiconductor laser, wavelength 650 nm

Frequency range (digital audio) DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

Audio CD: 4 Hz to 20 kHz

Signal-to-noise ratio (digital audio) More than 100 dB

Audio dynamic range (digital audio) More than 96 dB

Harmonic distortion (digital audio) Less than 0.015 %

Wow and flutter Below measurable level (less than $0.001 % (W.PEAK))

Operating conditions Temperature: 5°C to 35°C (41° F to 95°F), Operation status: Horizontal

I Outputs

Video output 1.0 V (p-p), 75 ohm, negative sync., pin jack 1

S-video output (Y) 1.0 V (p-p), 75 ohm. negative sync, Mini DIN 4-pin 1
(C) 0.286 V (p-p). 75 ohm

Component video output (Y) 1.0 V (p-p), 75 ohm, negative sync., pin jack 1
(PB)/(PR) 0.7 v (p-p), 75 ohm

Audio output (digital output Optical) -22.5 dBm 1

Audio output (digital output Coaxial) 0.5 V (p-p), 75 ohm , pin jack 1

Audio output (analog audio) 2.0 V (rms), 470 ohm, pin jack (L, Ft) 2

Audio output (Mono) 2.0 V (rms), 470 ohm. pin jack 1

Specifications and features are subject to change without notice.
