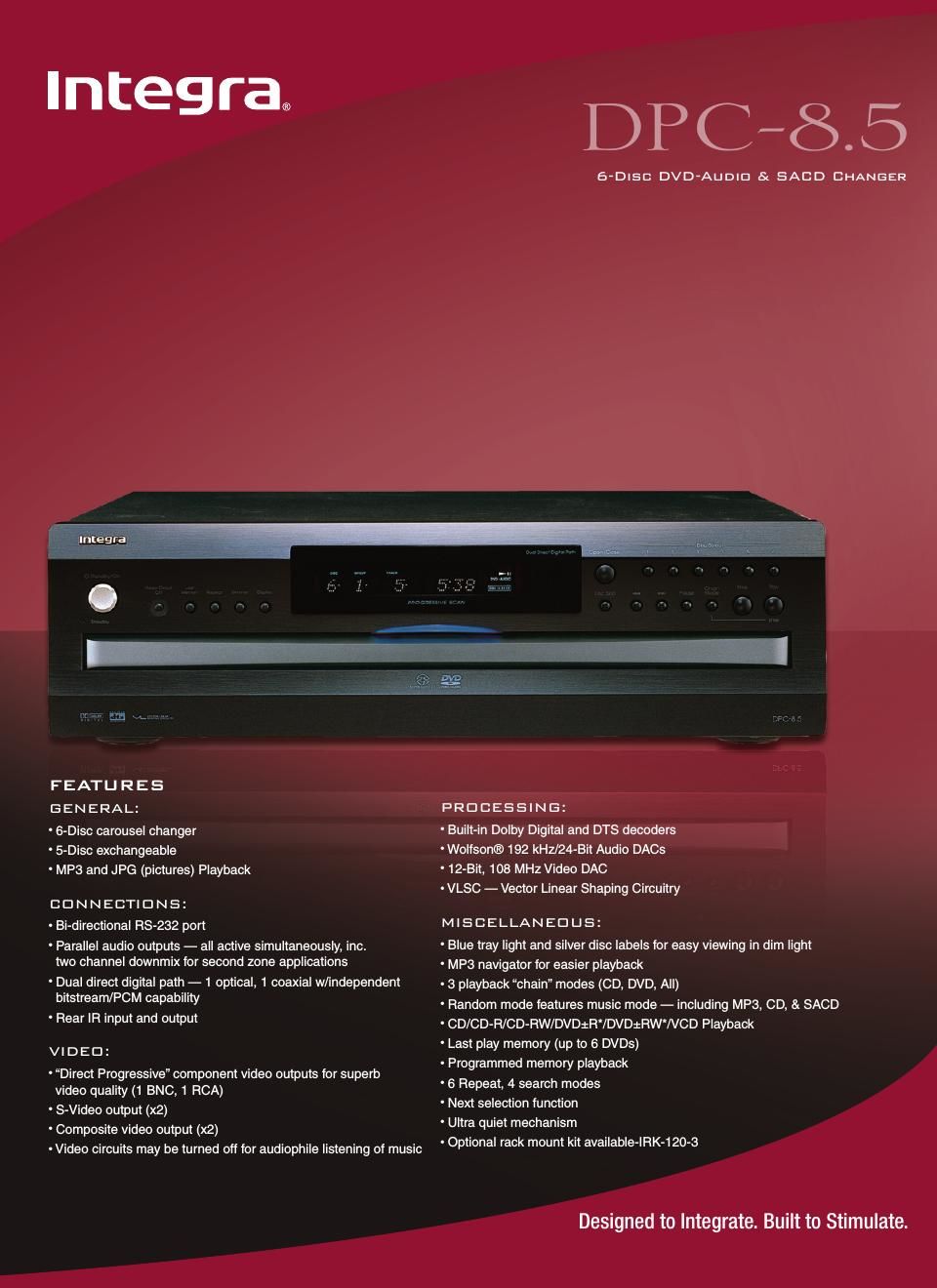

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AUDIO PERFORMANCE Frequency response DVD linear audio: 4 Hz-22 kHz @ 48 kHz sampling rate 4 Hz-44 kHz @ 96 kHz sampling rate DVD-Audio: 4 Hz-96 kHz @ 192 kHz sampling rate CD audio: 4 Hz-20 kHz SACD: 4 Hz-96 kHz Signal-to-noise ratio (digital audio): 110 dB Audio dynamic range (digital audio): 99 dB Harmonic distortion (digital audio): 0.004% Wow and flutter: Below measurable level [±0.001% (w/peak) or less] VIDEO OUTPUTS Component video: Y: 1.0 V (p-p), 75 Ω, negative sync, RCA x 1, BNC x 1 P B/PR: 0.7 V (p-p), 75 Ω S-Video: Y: 1.0 V (p-p), 75 Ω, negative sync, 4-pin mini DIN x 2 C: 0.286 V (p-p), 75 Ω Composite video: 1.0 V (p-p), 75 Ω, negative sync, RCA x 2 AUDIO OUTPUTS Optical: -22.5 dBm, optical connector x 1 Coaxial: 0.5 V (p-p), 75 Ω, RCA x 1 Analog: 2.0 V RMS, 600 Ω, RCA x 1 Multi-channel: 2.0 V RMS, 60 0Ω , RCA x 6 (L,C,R,SL1,SR1,SW) 1.4 V RMS, 60 0Ω , RCA x 2 (SL2,SR2) GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 21 W Dimensions (W x H x D): 17-1/8 x 5-3/16 x 17-3/16 435 x 131 x 436 mm Weight: 16.1 lbs. (7.3 kg) Optional mounting kit: IRK-120-3 U dimension: 4U * Some formats not supported. Product features and specifications subject to change without notice. 6-Disc DVD-Audio & SACD Changer DPC-8.5
