Integra dpc 7 9 brochure

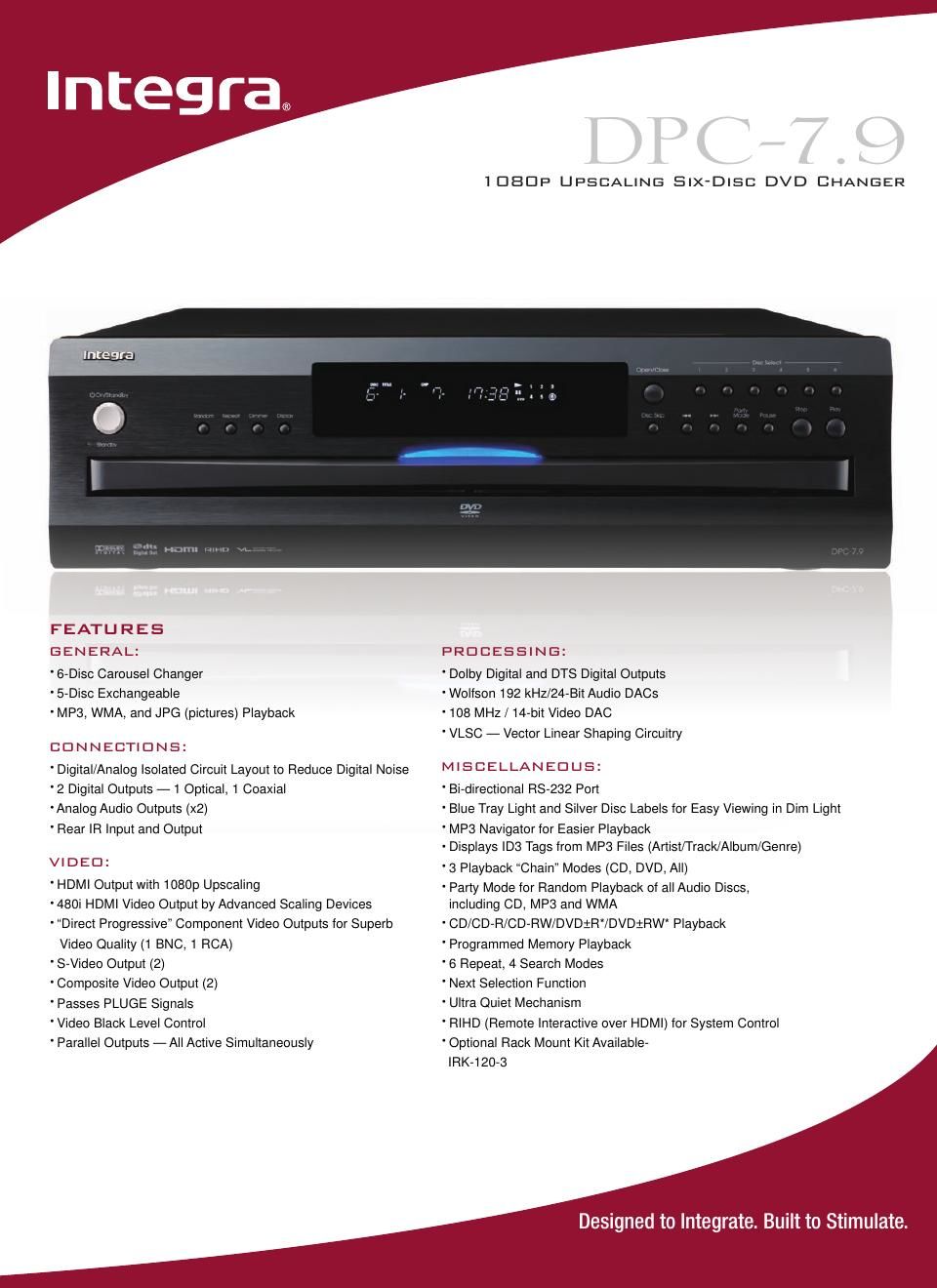

Page 1

SPECIFICATIONS AUDIO PERFORMANCE Frequency response: DVD linear audio: 4 Hz-22 kHz @ 48 kHz sampling rate 4 Hz-44 kHz @ 96 kHz sampling rate CD audio: 4 Hz-20 kHz Signal-to-noise ratio (digital audio): 95 dB Audio dynamic range (digital audio): 95 dB Harmonic distortion (digital audio): 0.007% Wow and flutter: Below measurable level [±0.001% (w/peak) or less] VIDEO OUTPUTS HDMI HD video conversion via HDMI (to 480p, 720p, 1080i, or 1080p) Native mode via HDMI (480i) Component video: Y: 1.0 V (p-p), 75Ω, negative sync, RCA x 1, BNC x 1 PB/PR: 0.7 V (p-p), 75Ω S-Video: Y: 1.0 V (p-p), 75Ω, negative sync, 4-pin mini DIN x 2 C: 0.286 V (p-p), 75Ω Composite video: 1.0 V (p-p), 75Ω, negative sync, RCA x 2 AUDIO OUTPUTS Optical: -22.5 dBm, optical connector x 1 Coaxial: 0.5 V (p-p), 75Ω, RCA x 1 Analog: 2.0 V RMS, 470Ω, RCA x 2 GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 15 W Dimensions (W x H x D): 17-1/8 x 5-3/16 x 17-3/16 435 x 131 x 436 mm Weight: 11.7 lbs. (5.3 kg) Optional mounting kit: IRK-120-3 U dimension: 4U * Some formats not supported. Designed to Integrate. Built to Stimulate. www.integrahometheater.com 1080p Upscaling Six-Disc DVD Changer 360 [14.17] 435 [17.13] 436 [17.17] 297 [1.69] 49 [1,92] 131 [5.16] 120 [4.72] Due to a policy of continuous product improvement, Integra reserves the \ right tochange specifications and appearance without notice. All trademarks are the property of their respective holder 09/2008 Printed in the USA DPC-7.9 DPC-7.9
