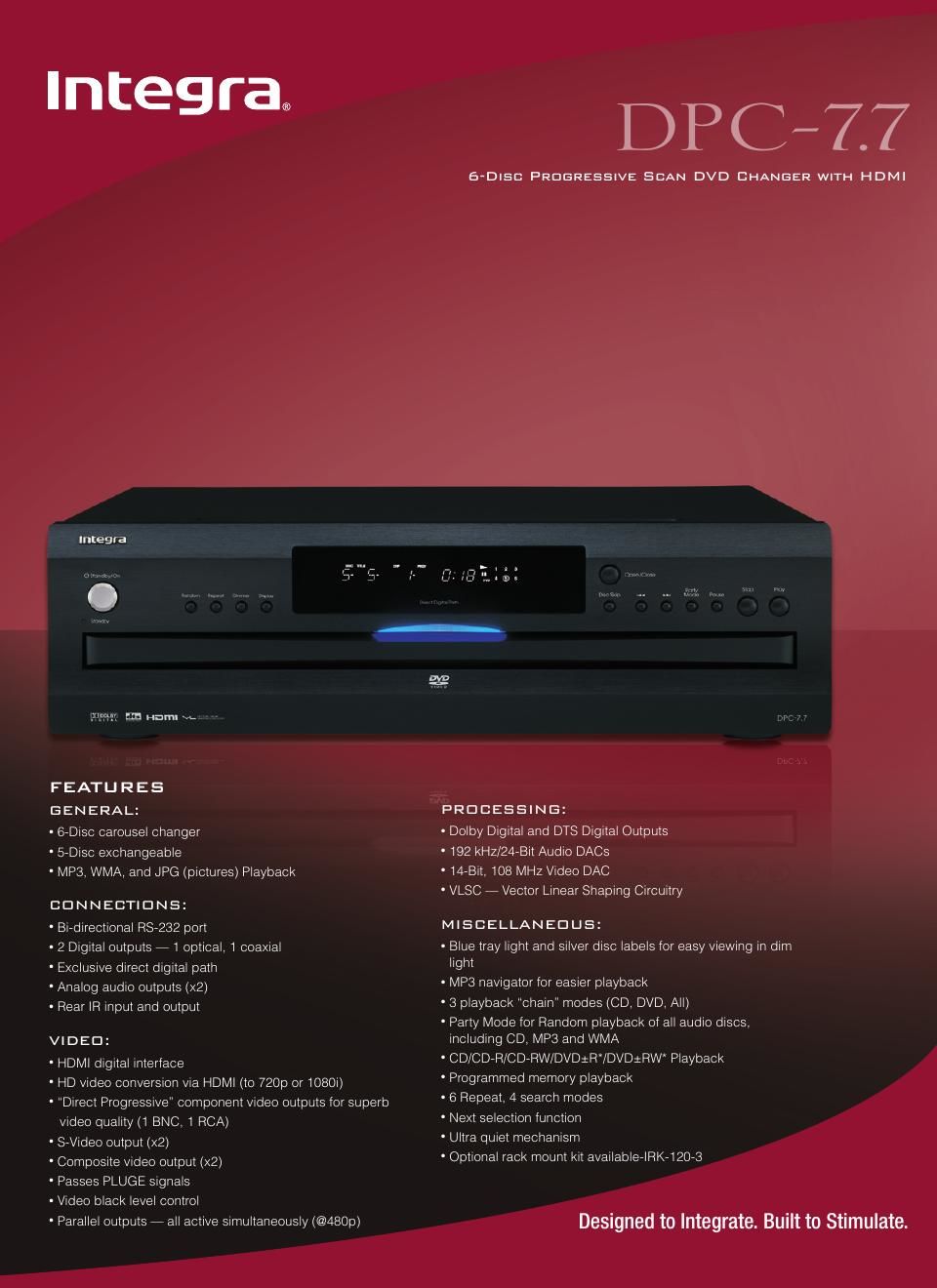

Integra dpc 7 7 brochure

Page 1

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AUDIO PERFORMACE Frequency response DVD linear audio: 4 Hz-22 kHz @ 48 kHz sampling rate 4 Hz-44 kHz @ 96 kHz sampling rate CD audio: 4 Hz-20 kHz Signal-to-noise ratio: 95 dB Audio dynamic range: 95 dB Harmonic distortion: 0.007% Wow and flutter: Below threshold of measurability VIDEO OUTPUTS Component video: Y: 1.0 V (p-p), 75 Ω, negative sync, RCA x 1, BNC x 1 P B/PR: 0.7 V (p-p), 75 Ω S-Video: Y: 1.0 V (p-p), 75 ohm, negative sync, 4-pin mini DIN x 2 C: 0.286 V (p-p), 75 Ω Composite video: 1.0 V (p-p), 75 Ω, negative sync, RCA x 2 AUDIO OUTPUTS Optical: -22.5 dBm, optical connector x 1 Coaxial: 0.5 V (p-p), 75 ohm, RCA x 1 Analog: 2.0 V RMS, 540 ohm, RCA (L/ R) x 2 GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 13 W (.35 W Standby) Dimensions (W x H x D): 17-1/8 x 5-3/16 x 17-3/16 435 x 131 x 436 mm Weight: 14.3 lbs. (6.5 kg) Optional mounting kit: IRK-120-3 U dimension: 4U * Some formats not supported. Product features and specifications subject to change without notice. 6-Disc Progressive Scan DVD Changer with HDMI DPC-7.7
