Integra dpc 7 5 owners manual
This is the 48 pages manual for integra dpc 7 5 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from integra dpc 7 5 owners manual (Ocr-read)

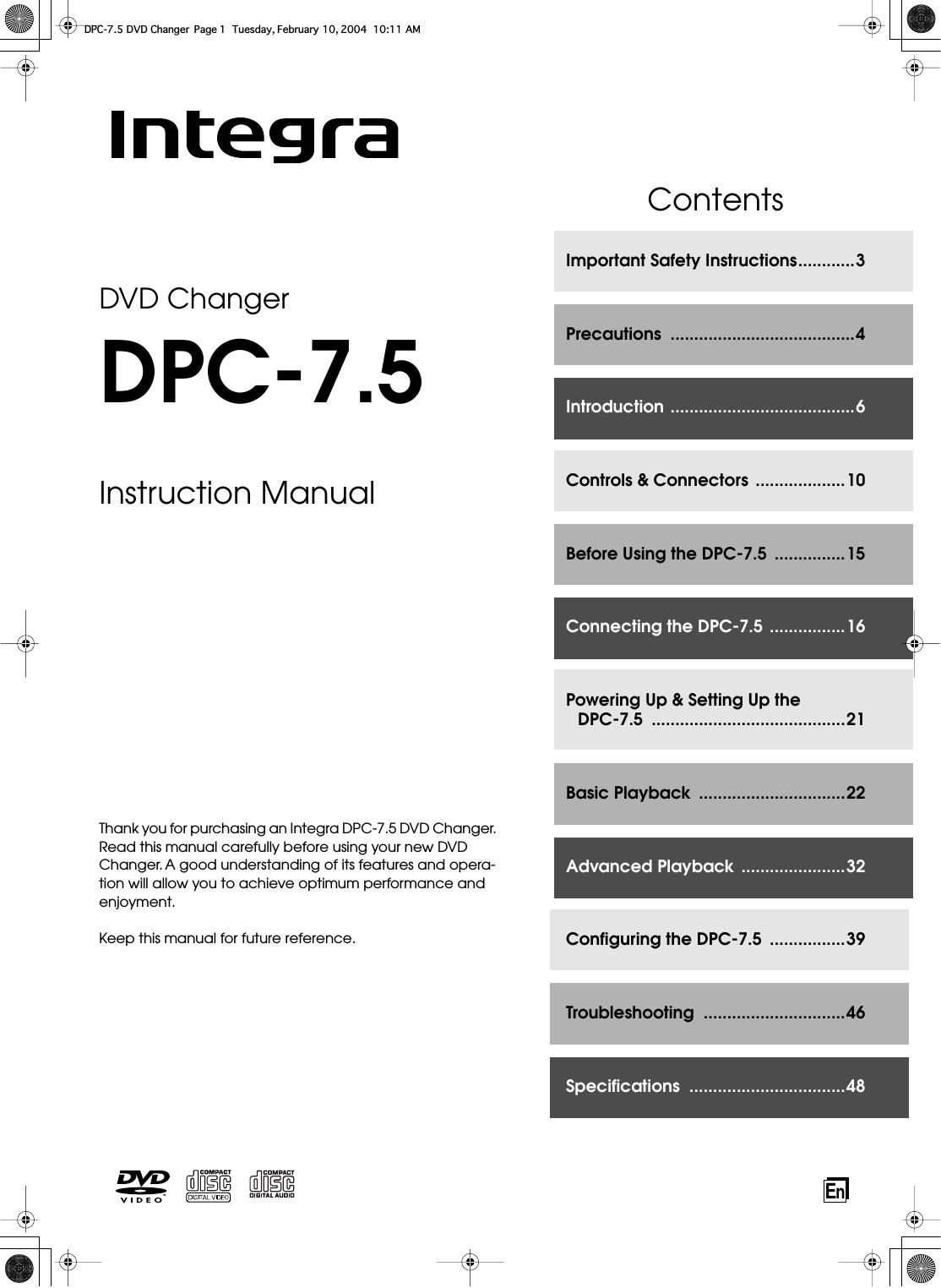

Page 1
2 Contents Important Safety Instructions ............................3 Precautions .........................................................4 Introduction .........................................................6 Supplied Accessories.........................................6 DPC-7.5 Features ..............................................6 Disc Notes..........................................................7 DPC-7.5-related Terminology ............................9 Controls & Connectors......................................10 Front Panel .......................................................10 Display ..............................................................11 Rear Panel ........................................................12 Remote Controller .............................................13 Before Using the DPC-7.5 .................................15 Installing the Remote Controllers Batteries ......15 Using the Remote Controller.............................15 Connecting the DPC-7.5 ....................................16 Before Making Any Connections.......................16 AV Cables & Connectors ..................................16 Connecting Your TV or Projector ......................17 Connecting Your Hi-Fi Amp ..............................18 Connecting for Dolby Digital or DTS .................18 Connecting -compatible AV Components ...19 Plug the supplied power cord into the AC INLET ..........................................19 Controlling AV Components that are Out of Range ....................................20 Powering Up & Setting Up the DPC-7.5 ...........21 Powering Up the DPC-7.5.................................21 First Time Setup................................................21 Basic Playback ...................................................22 Loading & Removing Discs ...............................22 Loading Discs During Playback ........................22 Selecting Discs .................................................23 Starting, Pausing & Stopping Playback ............23 Navigating Disc Menus .....................................25 Selecting Titles & Chapters by Number ............26 Using the Disc Navigator ..................................27 Memory Playback in the Disc Navigator ...........28 Selecting Tracks by Number .............................29 Fast Forward & Reverse ...................................29 Frame-by-Frame Playback ...............................30 Slow-motion Playback.......................................30 Adjusting the Display Brightness ......................30 Using JPEG CDs ..............................................31 Using Chain Mode ............................................31 Advanced Playback ........................................... 32 Locating Specific Points in Time ...................... 32 Repeat Playback .............................................. 32 A–B Repeat Playback ...................................... 33 Random Playback ............................................ 33 Memory Playback............................................. 34 Selecting Camera Angles................................. 35 Selecting Languages & Audio Formats ............ 36 Selecting Subtitles............................................ 36 Using Progressive Scanning ............................ 36 Using Last Memory .......................................... 37 Displaying Information...................................... 38 Configuring the DPC-7.5 ................................... 39 Using the Onscreen Setup Menus ................... 40 Picture Menu .................................................... 40 Audio Menu ...................................................... 42 Language Menu ............................................... 42 Display Menu ................................................... 43 Operation Setting Menu ................................... 44 Initial Setup Menu ............................................ 45 Selecting Other Languages.............................. 45 Language Code List ......................................... 45 Troubleshooting ................................................ 46 Specifications .................................................... 48
Page 2
3 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat reg- isters, stoves, or other apparatus (including amplifiers) that pro- duce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched partic- ularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufac- turer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manu- facturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate nor- mally, or has been dropped.15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjust- ment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F.When the apparatus exhibits a distinct change in perfor- mance this indicates a need for service. 16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short- out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Dont put candles or other burning objects on top of this unit. 17. Batteries Always consider the environmental issues and follow local reg- ulations when disposing of batteries. 18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
