Integra dpc 7 4 service manual

This is the 64 pages manual for integra dpc 7 4 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 64

Extracted text from integra dpc 7 4 service manual (Ocr-read)

Page 1

V l' ': fﬁeﬁNbssTSE 1 I 'i

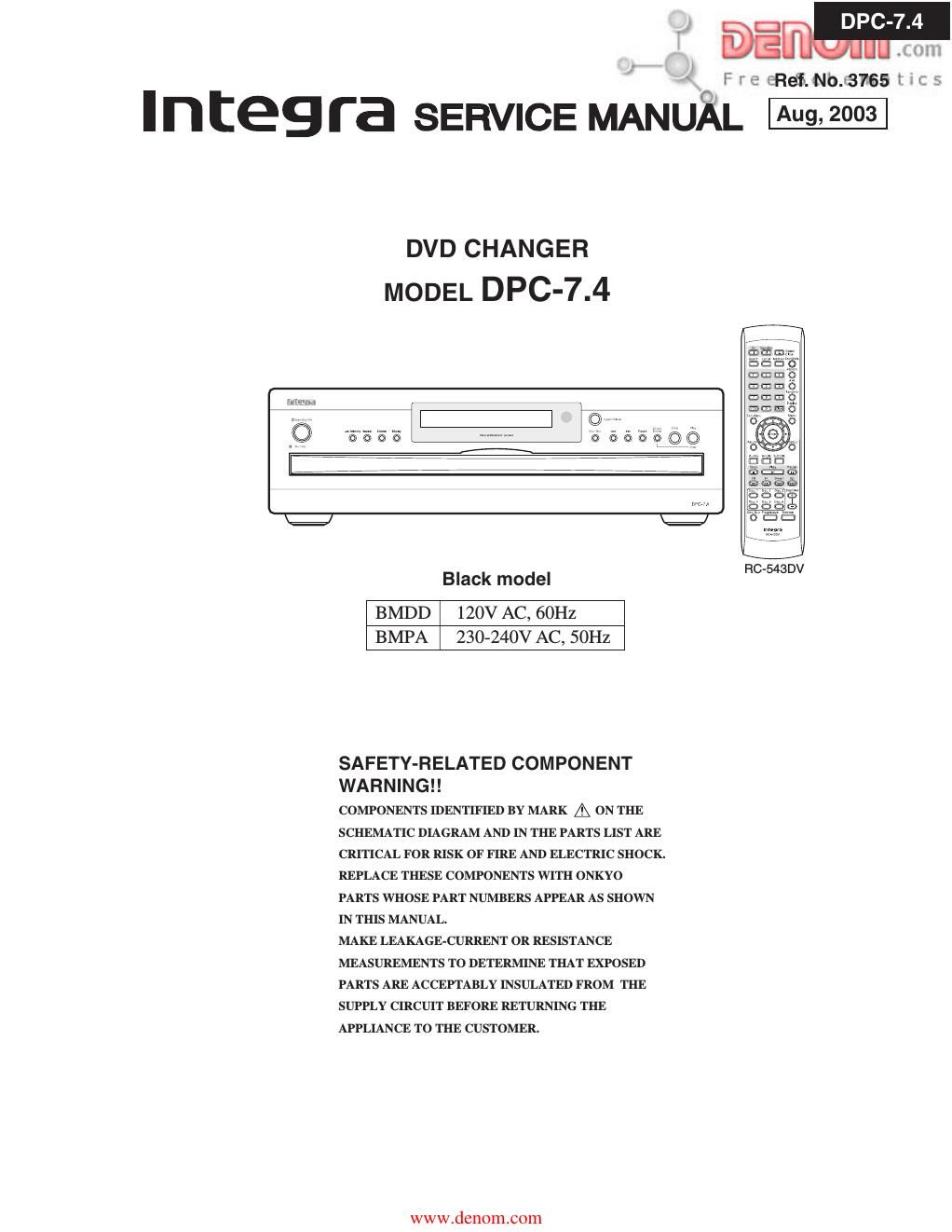

Integr a SERVICE MANUAL Aug,2ooa

DVD CHANGER
MODEL DPC-7.4

Twig-4w W
Q asasaza sMOO

[Tiff 7 - 7 777i]

\:/ \:J

RC-543DV

Black model

BMDD 120V AC, 6OHZ
BMPA 230-240V AC, SOHZ

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
