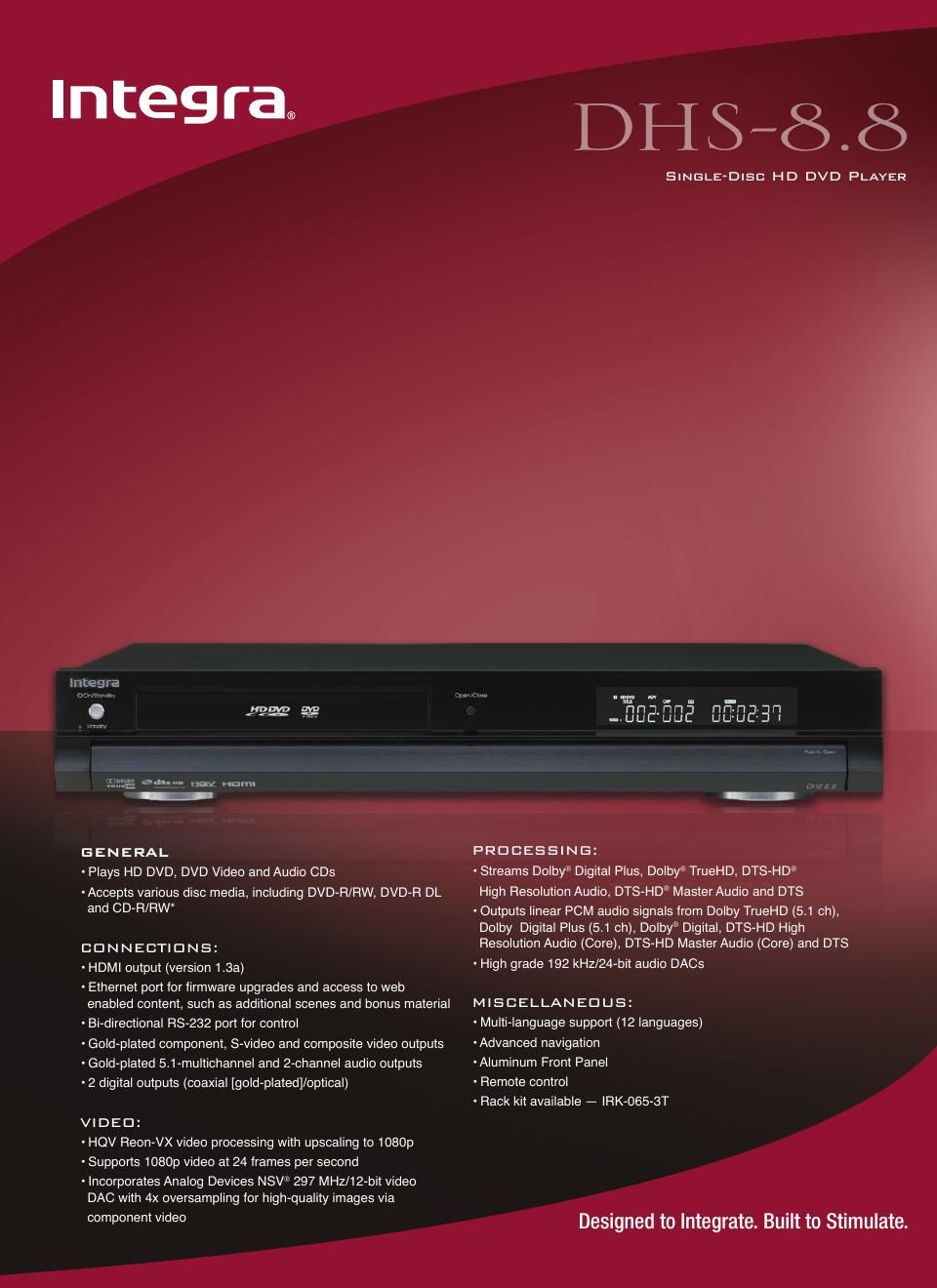

Integra dhs 8 8 brochure
This is the 2 pages manual for integra dhs 8 8 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from integra dhs 8 8 brochure (Ocr-read)
Page 1
Designed to Integrate. Built to Stimulate. SPECIFICATIONS AUDIO PERFORMAnCE Frequency response DVD linear audio: 4 Hz-22 kHz @ 48 kHz sampling rate 4 Hz-44 kHz @ 96 kHz sampling rate CD audio: 4 Hz-20 kHz @ 44.1 kHz sampling rate Wow and flutter: Below threshold of measurability VIDEO OUTPUTS Signal System: NTSC HDMI: 19-pin connector Component video: Y: 1.0 V (p-p), 75Ω, negative sync P B/PR: 0.7 V (p-p), 75Ω S-Video: Y: .7 V (p-p), 75Ω, negative sync C: 0.286 V (p-p), 75Ω Composite video: 1.0 V (p-p), 75Ω, negative sync AUDIO OUTPUTS Optical: –22.5 dBm Coaxial: 0.5 V (p-p), 75Ω Analog: 2 V RMS, 2.2 k-ohms x 2 (Stereo) 2 V RMS, 2.2 k-ohms x 6 (Surround) GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 47 W Dimensions (W x H x D): 17-1/8 x 2 7/8 x 13 5/8 435 x 73 x 346 mm Weight: 9.5 lbs. (4.3 kg) * Some formats not supported. Product features and specifications subject to change without notice. Single-Disc HD DVD Player DHS-8.8
