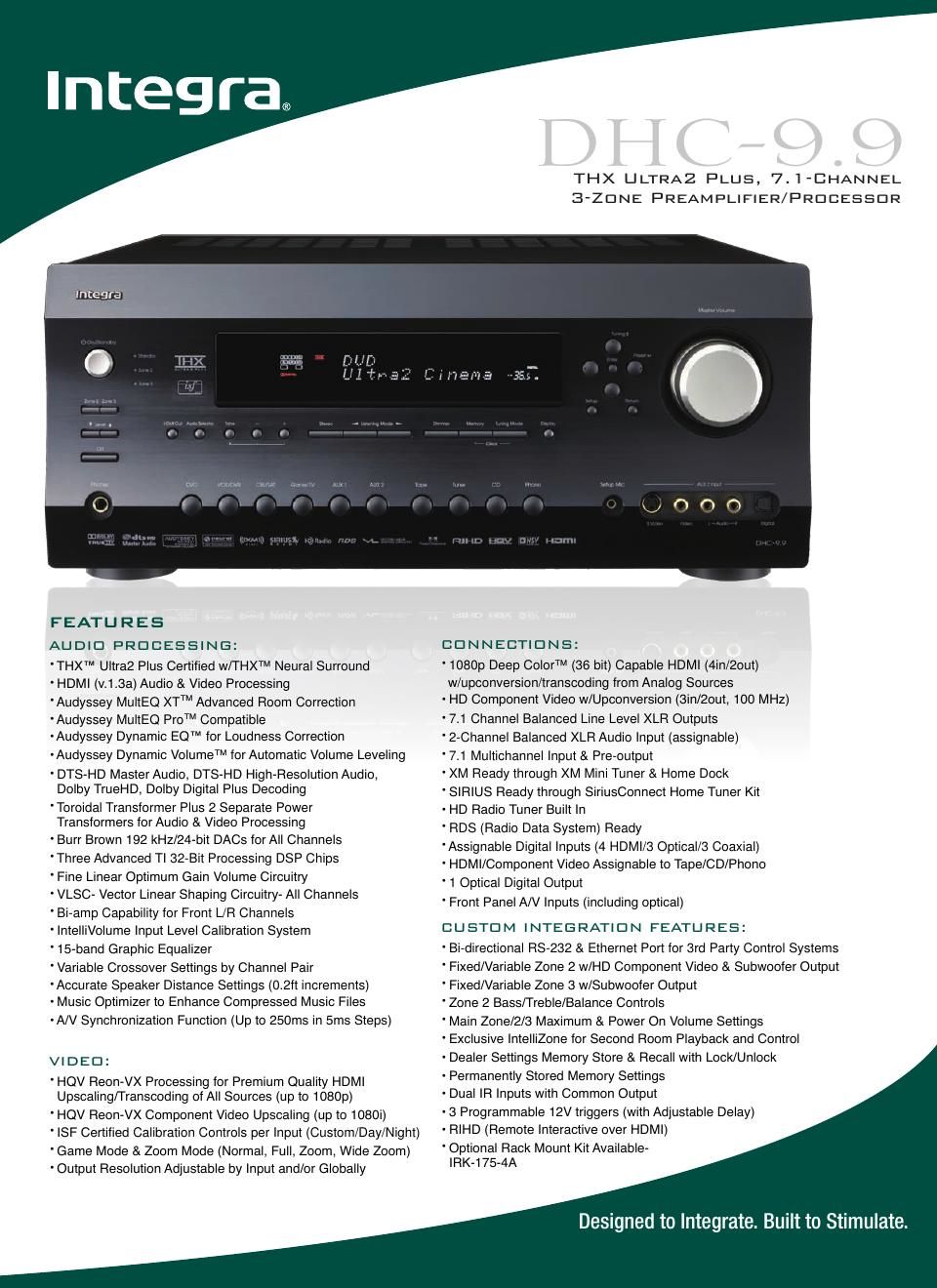

Integra dhc 9 9 brochure

Page 1

Designed to Integrate. Built to Stimulate. SPECIFICATIONS AUDIO PERFORMACE Frequency response: 5 Hz to 100 kHz: +1/–3 dB Signal-to-noise ratio: 110 dB (LINE, IHF-A) Total harmonic distortion: 0.05% (1 Vrms) INPUT SENSITIVITY AND IMPEDANCE Line: 200 mV, 47Ω Phono: 2.5 mV/47Ω OUTPUT LEVEL AND IMPEDANCE Rec out: 200 mV, 470Ω Pre out: 1 V, 470Ω Zone 2 line output: 100 mV, 470Ω TONE CONTROL Bass: ±10 dB at 20 Hz Treble: ±10 dB at 20 kHz FM Tuning range: 87.5–107.9 MHz (100-kHz steps) Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75Ω IHF) AM Tuning range: 530–1,710 kHz (10-kHz steps) Usable sensitivity: 300 µV/m DIGITAL TUNER HD Radio, XM and SIRIUS Ready GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 1.1 A Dimensions (W × H × D): 17-1/8 × 7-5/8 × 17-1/2 433 × 194 × 444.5 mm Weight: 29.3 lbs. (13.3 kg) Optional mounting kit: IRK-175-4A U dimension: 4U THX Ultra2 Plus, 7.1-Channel 3-Zone Preamplifier/Processor XM is a registered trademark of XM Satellite Radio Holdings, Inc.SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc. THX is a trademark of THX Ltd. All others are trademarks or registered trademarks of their respective h\ olders. Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 08/2008 Printed in the USA 444.5 [17.5] 38 [1.5] 267 [10.51] 175 [6.89] 194 [7.64] 49.5 [1.9] 433.2 [17.1] 260 [14.17] DHC-9.9 DHC-9.9
