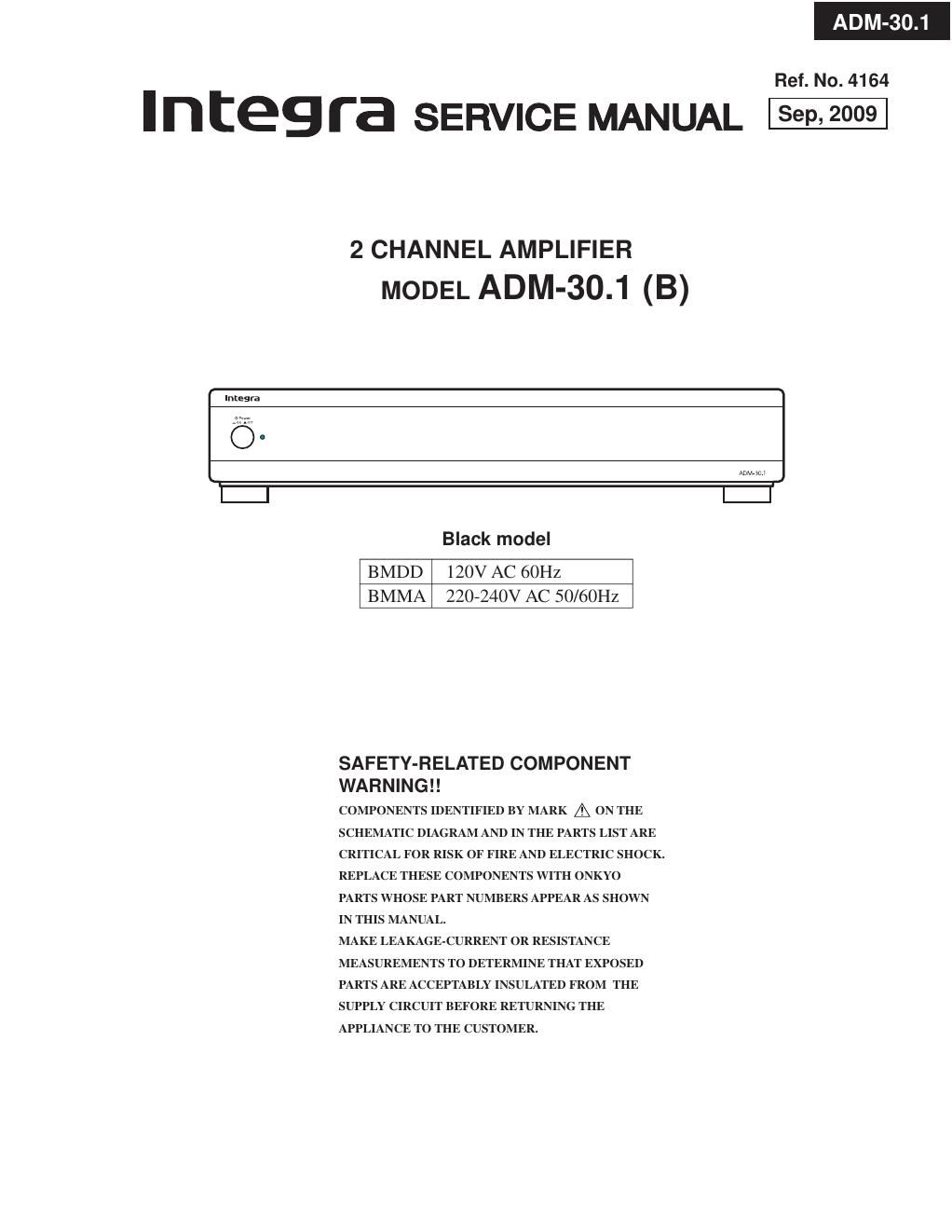

Page 1
Ref. No. 4164
In teg r a SERVICE MANUAL Sep, zoos
2 CHANNEL AMPLIFIER
MODEL ADM-30.1 (B)
Black model
BMDD 120V AC 60Hz
BMMA 220-240V AC 50/60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Page 2
SERVICE PROCEDURE
1. Replacing the fuses
3 This symbol located near the fuse indicates that the
fuse used is Show operating type, For continued protection against
fire hazard, replace with same type fuse , For {use rating, refer to
the marking adjest to the symbol.
EE- Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu 1e present symbol est apposre.
REF.NO. PART NAME DESCRIPTION Q'TY PART NO. REMARKS
F901 FUSE 3.15A7UL/T7233 1 252323GR m
F901 FUSE l.25A~SE-EAWK 1 252071GR A
2. Setting position before shipment.
(1) Power Switch : OFF
(2) Input Level : MAX.
(3) Audio Sens. Level : MAX.
(4) Audio Sens. : OFF
(5) 12 V Trigger : OFF
