Integra adm 2 1 owners manual
This is the 8 pages manual for integra adm 2 1 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from integra adm 2 1 owners manual (Ocr-read)

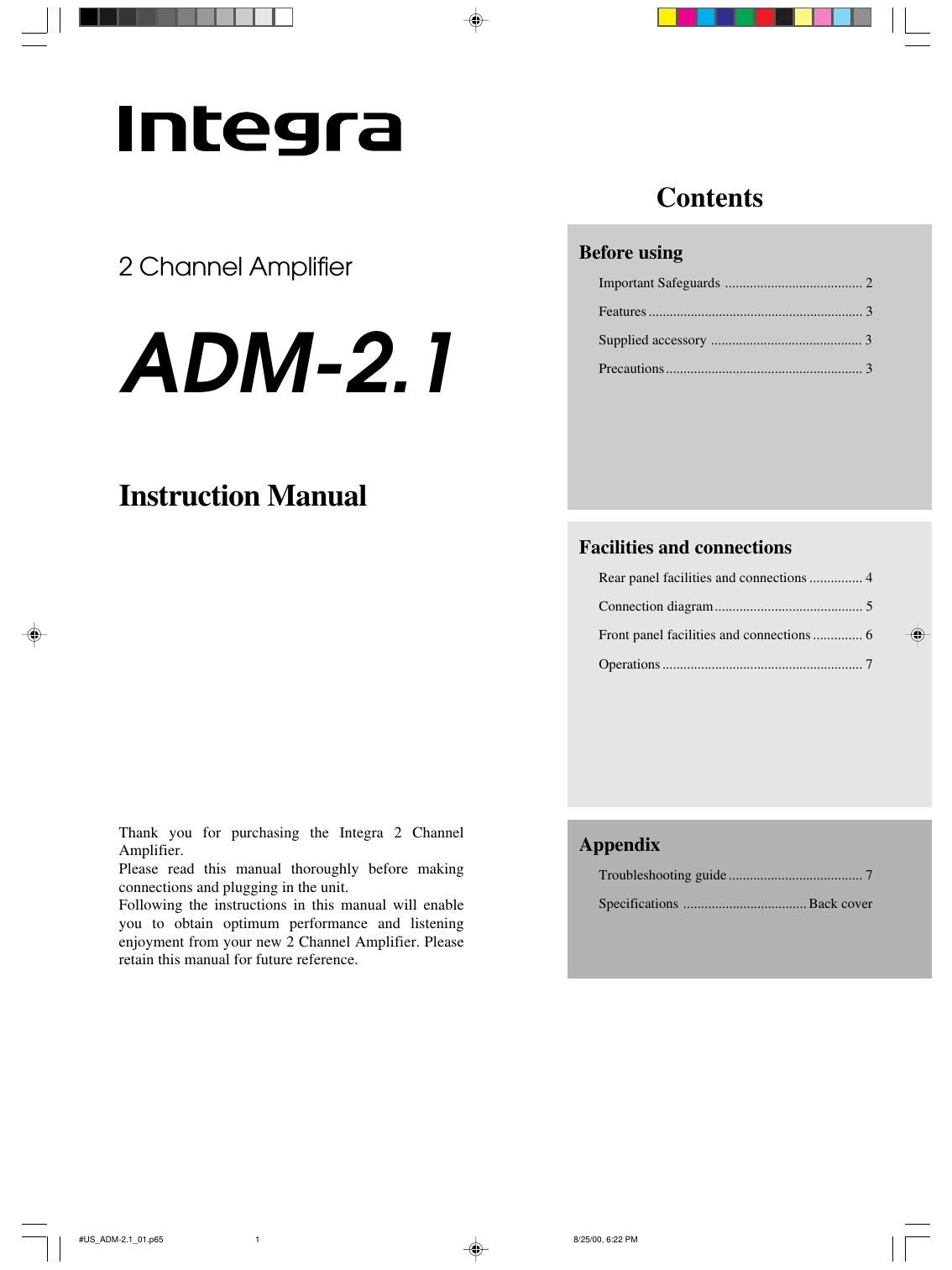

Page 1
2 WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS 1.Read Instructions Ð All the safety and operating instructions should be read before the appliance is operated. 2.Retain Instructions Ð The safety and operating instructions should be retained for future reference. 3.Heed Warnings Ð All warnings on the appliance and in the operating instructions should be adhered to. 4.Follow Instructions Ð All operating and use instructions should be followed. 5.Cleaning Ð Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recom- mended by the manufacturer. 6.AttachmentsÐ Do not use attachments not recommended by the appliance manufacturer as they may cause hazards. 7.Water and Moisture ÐDo not use the appliance near water Ðfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8.Accessories Ð Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturerÕs instructions, and should use a mounting accessory recommended by the manufacturer. 9. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 10.Ventilation Ð Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a built-in instal- lation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 20 cm (8 in.) and an opening behind the appliance. 11.Power Sources Ð The appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 12.Grounding or Polarization Ð The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety pur- pose of the polarized plug.13.Power-Cord Protection Ð Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 14.Lightning Ð For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and discon- nect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges. 15.Overloading Ð Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 16.Object and Liquid Entry Ð Never push objects of any kind into the appliance through openings as they may touch danger- ous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appli- ance. 17.Servicing Ð Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified ser- vice personnel. 18.Damage Requiring Service Ð Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the appliance, C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation, E. If the appliance has been dropped or damaged in any way, and F. When the appliance exhibits a distinct change in perfor- mance Ð this indicates a need for service. 19.Replacement PartsÐWhen replacement parts are required, be sure the service technician has used replacement parts speci- fied by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 20.Safety Check Ð Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition. 21.Wall or Ceiling Mounting Ð The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 22.Heat Ð The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appli- ances (including amplifiers) that produce heat. Important Safeguards PORTABLE CART WARNING S3125A #US_ADM-2.1_02-03.p658/25/00, 6:22 PM 2
Page 2
3 1. Warranty Claim You can find the serial number on the rear panel of this unit. In case of warranty claim, please report this number. 2. Recording Copyright Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder. 3. AC Fuse The fuse is located inside the chassis and is not user-serviceable. If the power does not come on, contact your Integra/Onkyo autho- rized service station. 4. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinner, alcohol or other chemi- cal solvents or cloths since these could damage the finish or re- move the panel lettering. 5. Power WARNINGBEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., AC 120 V, 60 Hz) written on the rear panel. For Canadian models For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. Modele pour les Canadien Sur les modles dont la fiche est polarisŽe: ATTENTION: POUR ƒVITER LES CHOCS ƒLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUÕAU FOND. Precautions Supplied accessory Check that the following accessory is supplied with the ADM-2.1. Power cord ´ 1 Features WIDE RANGE AMPLIFIER TECHNOLOGY (WRAT) WRAT virtually eliminates the adverse effects of counter- electromotive force by: 1) applying an uncommonly low amount of NFB (negative feed- back), 2) using carefully selected, high-tolerance, wide range parts in all critical sections, and 3) incorporating innovative circuit topology based upon decades of high-end amplifier design experience Ñ the final result is flat response beyond 100 kHz. AUTO POWER ON/OFF FUNCTION You can turn on and off the ADM-2.1 via a signal input to the AUDIO IN jacks or 12V TRIGGER IN jack. AUDIO IN/OUT LINK FUNCTION The signal inputs from the AUDIO IN jacks are output from the AUDIO OUT jacks. When used as a 2 channel amplifier in a multi room configuration, you can connect several ADM-2.1s to enjoy the same source in several rooms. #US_ADM-2.1_02-03.p658/25/00, 6:22 PM 3
