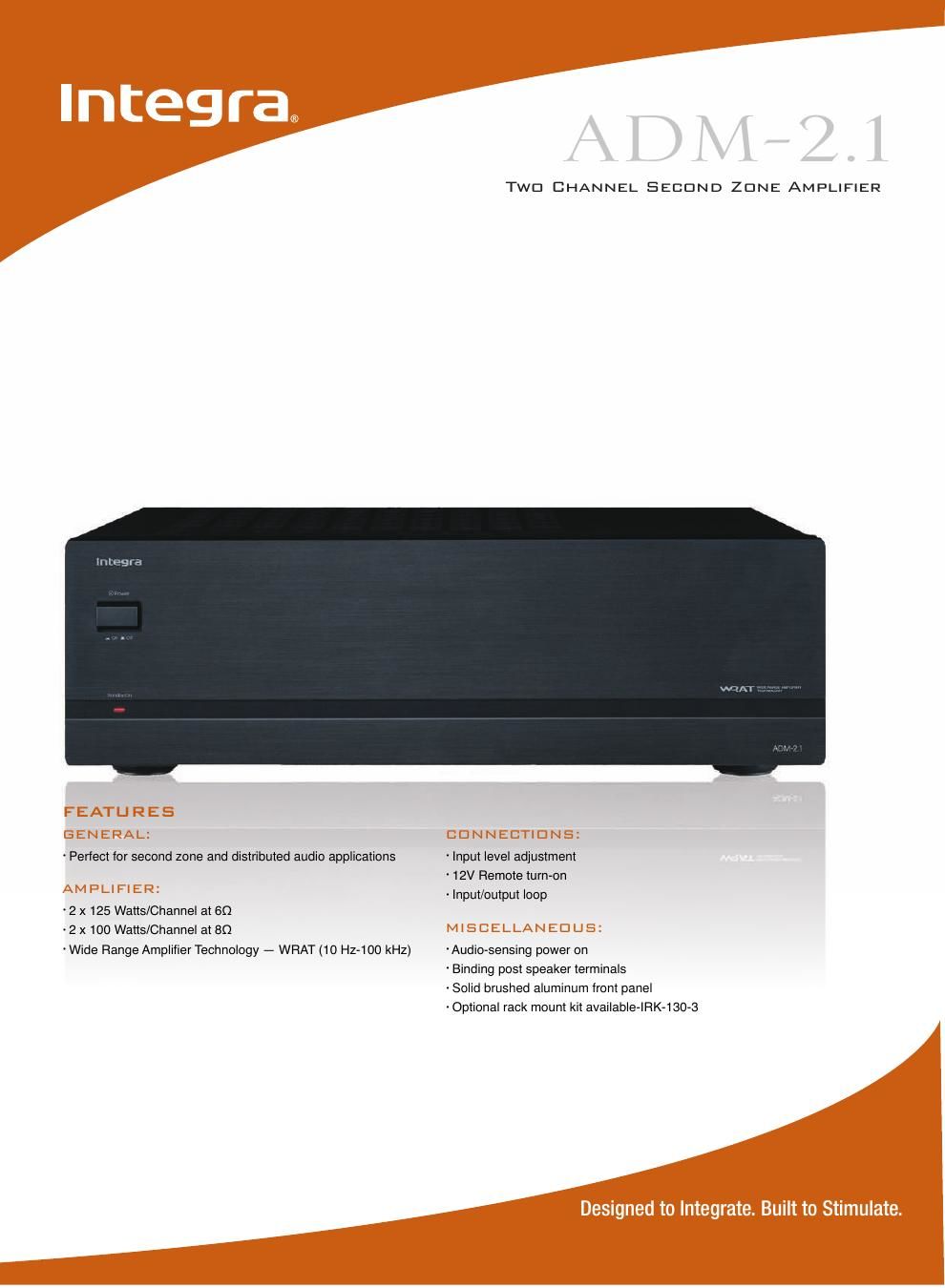

SPECIFICATIONS AMPLIFIER SECTION Continuous average power output (FTC) All channels: 100 W per channel min. RMS at 8Ω, both channels driven from 20 to 2kHz with no more than 0.08% total harmonic distortion. 125 W per channel min. RMS at 6Ω, both channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Dynamic power output: 2 x 140 W at 8Ω Frequency response: 10 Hz to 100 kHz ± 1 dB Signal-to-noise ratio: 110 dB (IHFA, 0.5 V input) Total harmonic distortion: 0.08% at rated power Damping factor: 100 at 8Ω Input sensitivity and impedance: 1 V, 50 kΩ Output level and impedance: 1 V, 10 kΩ Rated speaker impedance: 6Ω min GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 2.5 A Dimensions (W x H x D): 17-1/8 x 5-11/16 x 12-7/16 435 x 145 x 316 mm Weight: 18.7 lbs. (8.5 kg) Optional mounting kit: IRK-130-3 U dimension: 3U Two Channel Second Zone Amplifier Designed to Integrate. Built to Stimulate. www.integrahometheater.com Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 2/2008 Printed in the USA ADM-2.1
