Infinity PS 212 Service Manual
This is the 33 pages manual for Infinity PS 212 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Infinity PS 212 Service Manual (Ocr-read)
Page 1

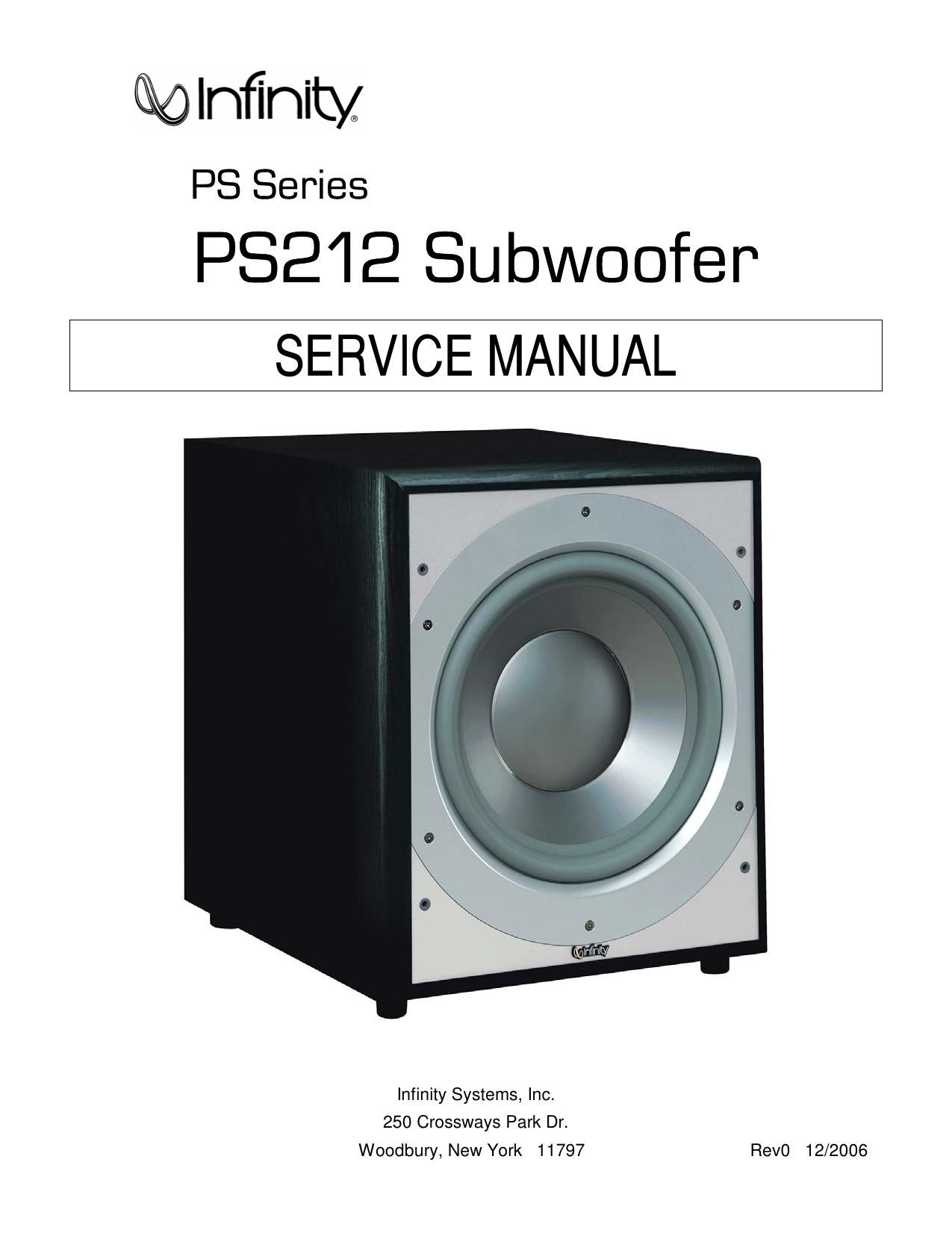

- CONTENTS - BASIC SPECIFICATIONS …………………..……………..1 DETAILED SPECIFICATIONS…………………..……….…..2 PACKAGING……………….……………………….…....…\ .…4 CONTROLS AND CONNECTIONS…………..…….………..5 OPERATION….……………………………………………\ ..….7 EXPLODED VIEW /PARTS LIST …………….….…....……8 TEST SET UP AND PROCEDURE………………..…....……9 BLOCK DIAGRAM…………………………..………….…..…10 \ TROUBLESHOOTING FLOW CHART………………..........12 ELECTRICAL PARTS LIST (120v) ………………………….13 PCB DRAW INGS……………….……………………………..1\ 8 SEMICONDUCTOR PINOUTS……….……………….……..22 SCHEMATICS (120v)………………………………………..\ .23 Basic Specifications PS212 Powered Subwoofer Frequency Response: 25Hz – 150Hz (±3dB) Maximum Amplifier Output: 400 W atts RMS; 700 W atts Peak (20Hz – 150Hz with no more than 0.1% THD) Crossover Frequencies: 50Hz – 150Hz, 24dB/octave, continuously variable Driver: 12" (250mm) MMD® Dimensions (H x W x D): 18" x 14-3/8" x 18-3/4" (with grille) (457mm x 365mm x 476mm) W eight: 44.7 lb (20.3kg) Infinity continually striv es to update and improv e existing products, as well as create new ones. The specifications and construction details in this and related Infinity publications are therefore subject to change without notice. PS series PS212 subwoofer 1
Page 2
PS 212 subwoofer 400 W Powered Sub/ Plate Amp LINE VOLTAGEYes/N o Hi/Lo Lin e Nom.Uni t Note s NA 120vac/60Hz Yes 108-132 120 Vrms Normal Operation EU 230vac/50-60Hz Yes 207-264 230 Vrms Normal operation, MOMS required Parameter Specification UnitQA Test Limits Conditions Notes Amp Sectio n Type (Class AB, D, other) D--- Load Impedance (speaker) 4 Ohms Nominal Z-curve required Rated Output Power 300 Watts Regulated 120 V line THD@ Rated Power 1 % 22k filter, 50Hz 300W THD @ 1 Watt 0.5 % 22k filter, 50Hz DC Offset undefined mV-DC < 20 @ Speaker Outputs Damping factor 20 N/A > 15 measured at 50 Hz Input Sensitivit y Line Input 130 mV mVrms 300 W @ 50Hz1 input driven Signal to Nois e SNR-A-Weighted 100 dBArelative to rated power A-Weighting filter SNR-unweighted 70 dBr relative to rated power 22k filter SNR rel. 1W-unweighted 60 dBr relative to 1W Output 22k filter Residual Noise Floor 2 mVrms Volume @max, using RMS reading DMM/VOM (or A/P) Residual Noise Floor 1 mVrms(max) Volume @max, w/ A/P Swept Bandpass Measurement (Line freq.+ harmonics)\ Input Impedanc e Line Input 6.5 k ohms Nominal Active Filter s Low Pass (fixed or variable ) VARIABLE -- Frequency 50 - 150 Hz Slope 24 dB/OctaveQ Butterworth -- High Pass (HPF ) FIXXED -- Frequency 29 Hz Slope 12 dB/Octave Q 2 -- Friend Circui t FIXXED -- Frequency 60 Hznotch filter Slope 6 dB/Octave Q 2.5 -- Video Boos t NONE -- Boost dB Range Hz Switches Main Power ON/OFF YES -- Type rocker -- Located on amp plate TV-5 LFE/ Low Pass filter mode YES -- Type mini toggle -- Located on amp plate Polarity Switch YES -- "Off": 0°; "On": 180° Type mini toggle -- Located on amp plate Limite r (yes/no ) YES compressor and limiter THD at Max. Output Power less than 2 % Maximum Output Power Maximum THD as a result of limiting. Output Level Contro l Volume Control Pot YES-- gain control mounted on amp panel Taper (lin/log) log A taoer -- @ minimum setting no output Input/Output Configuratio n Line In (L,C,R,AC3,Mono) Stereo -- RCA phono jack, gold plated LFE In YES -- Shared with "R" Line In jack Signal Sensing (ATO ) Auto-Turn-On (yes/no) YES-- ATO Input Test Frequency 100 Hz ATO Input Threshold 1 mV typ. LPF "On", BOS "Off" ATO Low Pass cutoff 1 kHz ATO-LPF for noise immunity LPF "On", BOS "Off" PS series PS212 subwoofer 2
