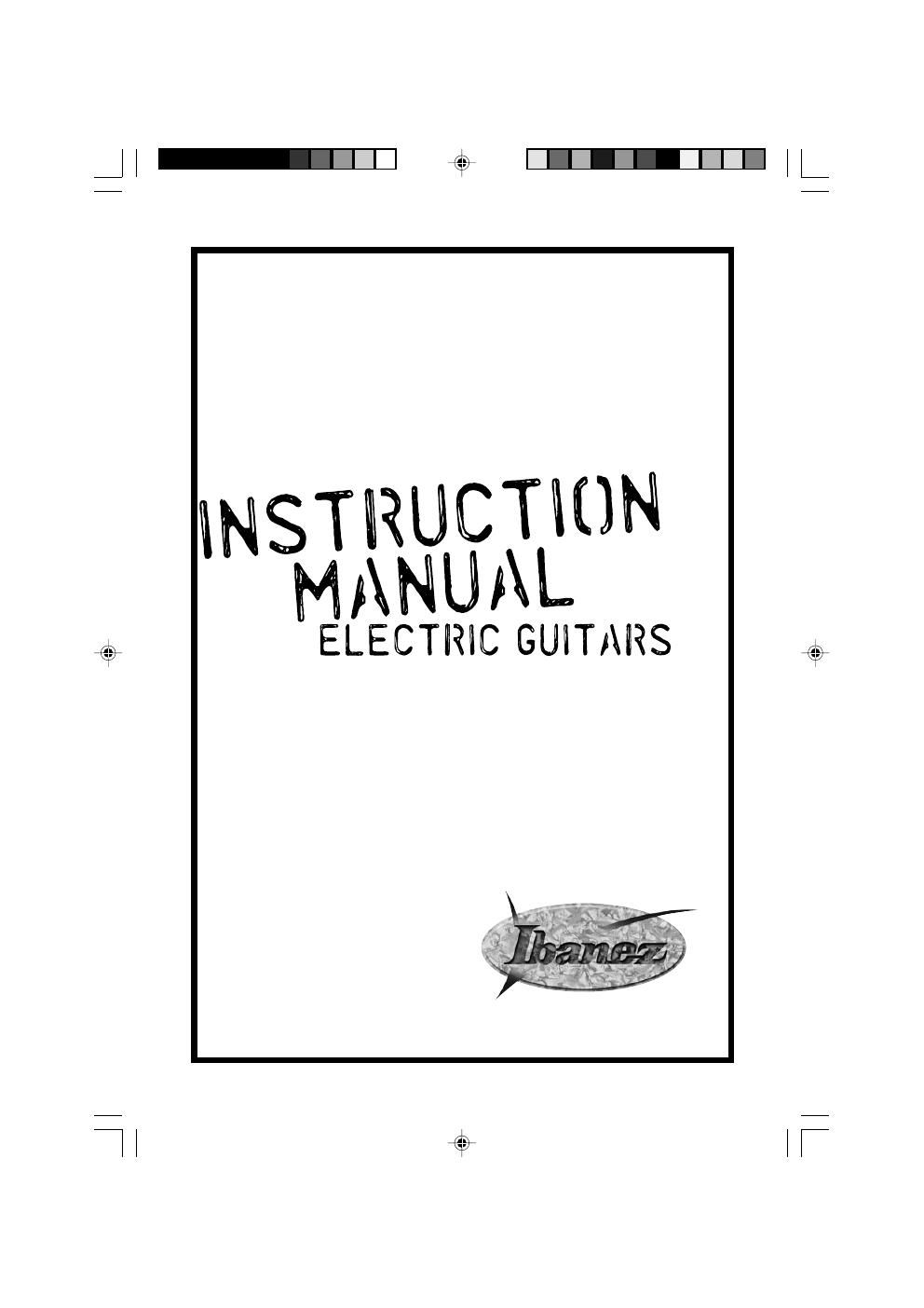

Ibanez Electricguitar Manual
This is the 27 pages manual for Ibanez Electricguitar Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Ibanez Electricguitar Manual (Ocr-read)
Page 1
EDGE III TrEmolo The Edge III Tremolo is an Ibanez original tremolo that features fine-tuners, much like the Lo-Pro Edge, and provides extraordinary strength and tuning stability. The Edge III Tremolo offers features that are required for a double-locking tremolo, and successfully combines Ibanezs original ideas with its unique appearance. Attaching the tremolo arm The tremolo arm can be inserted and removed easily. Be sure to insert the tremolo arm into the arm socket (Fig. 1 A) and push down firmly until the arm snaps into place. To adjust the torque of the tremolo arm, use a 2 mm Allen key to turn the torque adjustment screw (Fig. 1 B) through the adjustment hole in the side of the base plate attached to the back of the arm socket. Turning the screw clockwise will tighten the arm torque, and turning the screw counterclockwise will loosen the arm torque. To adjust the height of the arm, remove the tremolo spring cover from the back of the guitar and turn the height adjustment screw (Fig. 1 C) attached to the bottom of the tremolo block with a 3 mm Al- len key. Tightening the screw clockwise will raise the height. Caution The Edge III Tremolo has two torque adjustment screws for the tremolo arm: one is at (Fig. 1 B) and the other is under height adjustment screw (Fig. 1 C). The adjustment screws are factory adjusted. If adjustment is required, be sure to remove the tremolo from the guitar before making adjustments. The Ibanez EGEN8 Herman Li Signature Ibanez EGEN8 has a screw in tremolo arm. Insert the tremolo arm into the tremolo unit and rotate it to fasten it in place. The method of adjusting the torque of the tremolo arm is the same as for Edge III. Caution Check that the screw (Fig. 1 C) securing the tremolo arm is not loose before attaching it. Adjusting the tremolo angle The angle of the tremolo is adjusted by the balance between the tension of the strings and the tension of the tremolo springs installed on the back side of the guitar body. Setting the tremolo so that it is approximately parallel to the surface of the guitar body will ensure optimal performance (Fig. 2). To adjust the tremolo angle, insert a Philips screwdriver into a slit in the tremolo spring cover attached to the back of guitar body and turn the screw of the tremolo spring hook (Fig. 3). With the guitar tuned accurately, if the tremolo unit is tilted forward, turn the screws clockwise to tighten the springs. If the tremolo unit is tilted backward, turn the screws counterclockwise to loosen the springs. When adjusting the tremolo angle, the balance between the tension of the strings and the tension of the tremolo springs changes each time the tension of the spring is adjust- ed. Thus, adjustments should affect tuning. Make adjustments by tuning the strings re- peatedly. If the string tension significantly changes after the strings have been changed to a different gauge, it is sometime necessary to change the number of springs or the way in which the springs are installed. Fig. 3 Fig. 2 B A C Fig. 1
Page 2
Adjusting the action Adjust the height of the tremolo unit by turning the stud lock screws (Fig. 4 E) on either side of the tremolo unit with a 3 mm Allen key. Note that it is not possible to adjust the height of individual strings. Adjusting the intonation Loosen the pressure pad screws (Fig. 5 H) on the locking nut with a 3 mm Allen key and fully loosen the strings. Loosen the saddle lock screw (Fig. 4 F) with a 2 mm Allen key and adjust the saddle position. Firmly tighten the saddle lock screw (Fig. 4 F), tune the guitar, and then check the intonation. Repeat these adjustments until the required intonation is reached, and then tighten the pressure pad screws (Fig. 5 H) in the locking nuts. Caution When loosening the saddle lock screws, you must fully loosen the strings be- fore making adjustments. replacing the strings Loosen the pressure pad screws (Fig. 5 H) on the locking nut with a 3 mm Allen key and remove the strings from the tuning machines. Loosen the string stopper screw (Fig. 4 G) on the tremolo unit with a 3 mm Allen key and remove the string from the saddle. Cut off the ball end of the new string with an end nipper or wire cutter (Fig. 6). Insert the cut side of the new string between the saddle and the string holder block. Tighten the string stopper screw to secure the string. Wind the string around the tuning machine and tune to pitch. After tuning, tighten the pressure pad screw on the locking nut. Caution Since the angle of the tremolo will change significantly, if all strings are re- moved at once, you should replace the strings one at a time. To remove all strings at the same time, tuck a piece of cloth behind the tremolo so that the tremolo unit sits parallel to the surface of the body. This can make tuning easy. Before you tune a string, ensure that the string stopper screw is firmly tight- ened. Fine tuning After locking the locking nut, fine tuning of each string can be carried out by using fine tuners. To allow maximum fine tuning adjustment, it is recommended that the fine tuners (Fig. 4 D) be set to the middle position of the range of the movement before tuning. G F ED Fig. 4 H Fig. 5 Fig. 6
