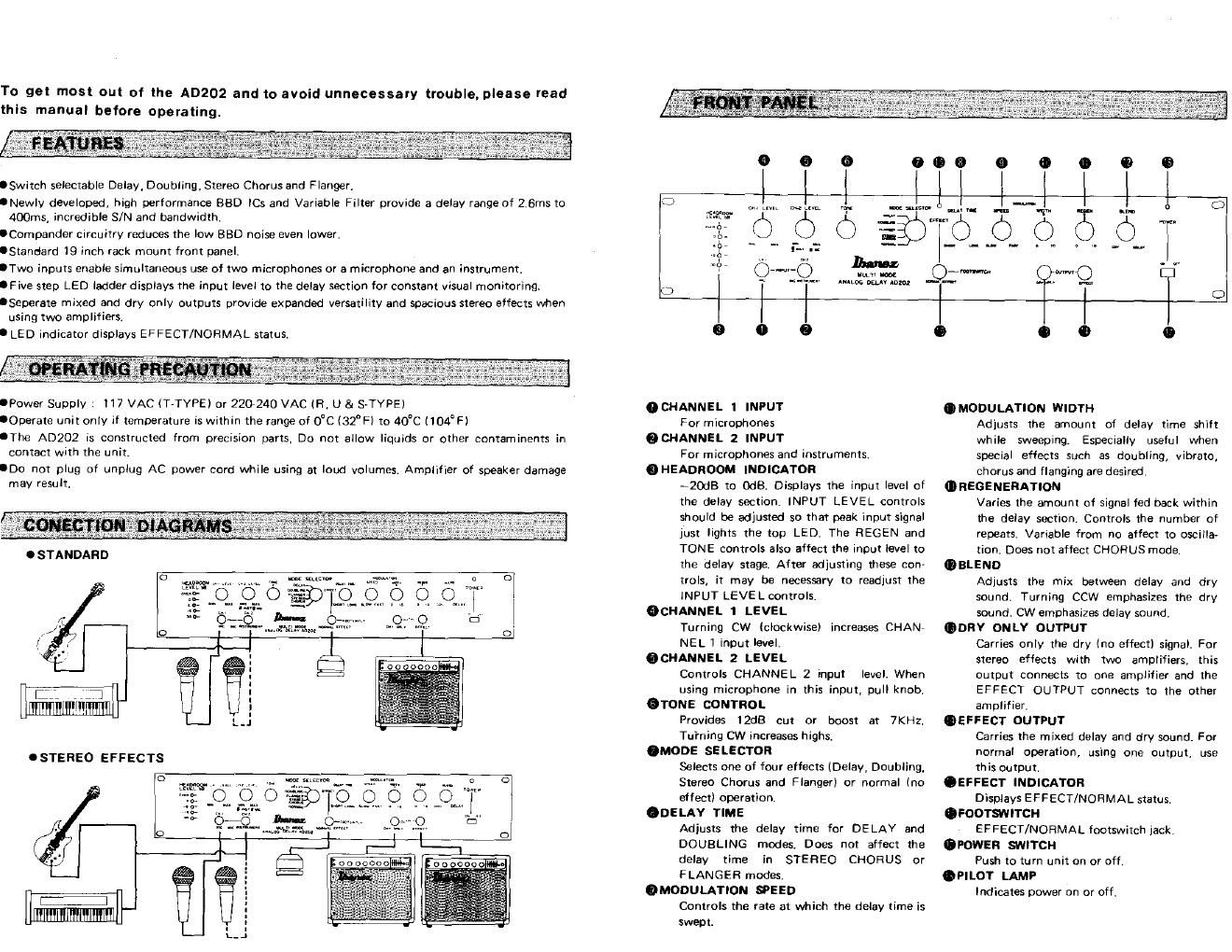

IBANEZ AD 202 Owner Manual

Page 1

To get most out of the AD202 and to avoid unnecessary trouble, please read
this manual before operating.

.Switch selectable Delay, Doubling, Stereo Chorus and Flangert

.Newly developed, high performance 880 le and Variable Filter provide a delay range of 2.6m: to
400ms, incredible S/N and bandwidth.

0Compander circuitry reduces the low BBD noise even lower.

.Standard 19inch rack mount front panel.

'Two inputs enable simultaneous use of two microphones or a microphone and an instrument.

IFive step LED ladder displays the input level to the delay section for constant visual monitoring.

lSeperate mixed and dry only outputs provide expanded versatility and spacious stereo effects when
using two amplifiers.

. LED indicator displays EFFECT/NORMAL status.

IPower Supply : 117 VAC (T-TYPE) or 220-240 VAC (R, U & S-TYPE)

DOparate unit only if temperature is within the range of 0°C (32°F) to 40°C (104°Fl

OThe A0202 is constructed from precision parts. Do not allow liquids or other contaminants in
contact with the unit.

lDo not plug of unplug AC power cord while using at loud volumes. Amplifier of speaker damage
may result.

o .. wfiwmm ._._ mm a, . t o

O STEREO EFFECTS

o a»: mum run

000000.

0 0 O 0 0 O O 0 0
... L _...LLL L... .L L. o
.0. as; .9. o :5. .0. ..
:3: ow-Q =73: CID-m --w.©. In"
I O
l. .l l . l. .

OOHANNEL I INPUT
For microphones

OCHANNEL 2 INPUT
For microphones and instruments.

CHEADROOM INDICATOR
-20dB to we, Displays the input level of
the delay section. INPUT LEVEL controls
should be adjusted so that peak input signal
just lights the too LED. The REGEN and
TONE controls also atfect the input level to
the delay stage. After adjusting these con-
Irols, it may be necessary to readjust the
INPUT LEVE L controls.

OCHANNEI. I LEVEL
Turning CW (clockwise) increases CHANV
NEL 1 input level.

OCHANNEL 2 LEVEL
Controls CHANNEL 2 input level. When
using microphone in this input, pull knob.

Drone CONTROL
Provides 12dB out or boost at 7KHz.
Tui'ning CW increases highs.

.MODE SELECTOR
Selects one of four effects (Delay, Doubling.
Stereo Chorus and Flanger) or normal (no
effect) operation.

.DELAY TIME
Adiusts the delay time for DELAY and
DOUBLING modes, Does not affect the
delay time in STEREO CHORUS or
FLANGER modes,

Omoouumou SPEED
Controls the rate at which the delay time is
swept.

OMODULATION WIDTH
Adjusts the amount of delay time shift
while sweeping. Especially useful when
special effects such as doubling, vibrato.
chorus and ilanging are desired.
OREGENERATION
Varies the amount of signal fed back within
the delay section. Controls the number of
repeats. Variable from no affect to oscilla-
tiont Does not affect CHORUS mode.
OBLEND
Adjusts the mix between delay and dry
sound. Turning CCW emphasizes the dry
sound. CW emphasizes delay sound,
ODHV ONLV OUTPUT
Carries only the dry (no effect) signal. For
stereo effects with two amplifiers, this
output connects to one amplifier and the
EFFECT OUTPUT connects to the other
amplifier.
OEFFECT OUTPUT
Carries the mixed delay and dry sound. For
normal operation, using one output, use
this output.
.EFFECT INDICATOR
Displays EFFECT/NORMAL status,
.FOOTSNITCH
EFFECT/NORMAL footswitch jack.
Grower-t SWITCH
Push to turn unit on or off.
GPILOT LAMP
Indicates power on or off.
