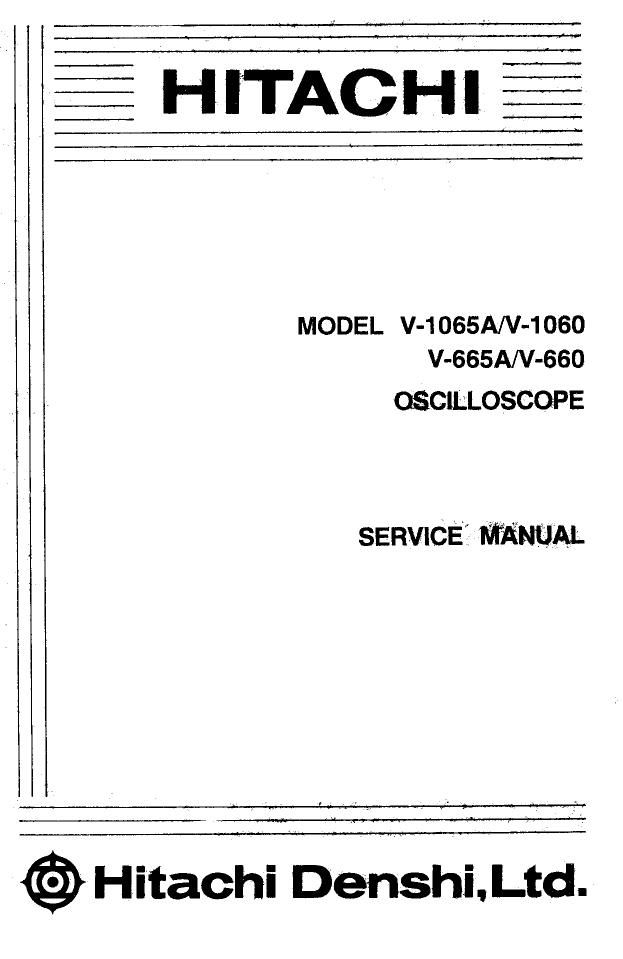

Hitachi V 660 Service Manual

Page 4

V-1065A V-1060 V-66 5A V-660
External input 1 M ohms 25%, 25pF + 6pF
impedance
External input 1:00 V (DC + AC peak) at 1 kHz
voltage
Sweep time
A(main) sweep 50 ns/DIV to 0.5 s/DIV .- __ -
Continuously variable (UNCAL) _.- ._ _-
B(delay) sweep 50 ns/DIV to 50 ms/DIV __ .- __
Accuracy
10 to 35°C 0 to 50°C
X1 :32 iAZ
MAG X10 :AZ :62
Sweep
magnification X10 _._. .__ .-
Maximum 5 ns/DIV
sweep rate
Hold off Variable
time
Delay time l us to 5 5
Delay jitter l/20,000 or less
Alternate Variable
separation
Trigger lock Provided
function
Auto range Provided
function
Single sweep Provided
function
0 Readout
function
Panel Vertical axis : V/DIV (CH1, CH2), UNCAL, probe conversion Not Same as Not
setting display provided V-1065A provided
Sweep speed : S/DIV, UNCAL, MAG (converted value) ___, - ---
Other : Delay time - ---- ---
o Cursor Voltage difference AV : A-REF No cursor Same as No cursor
readout Time difference AT : A-REF V-1065A
function Frequency l/AT : A-REF
