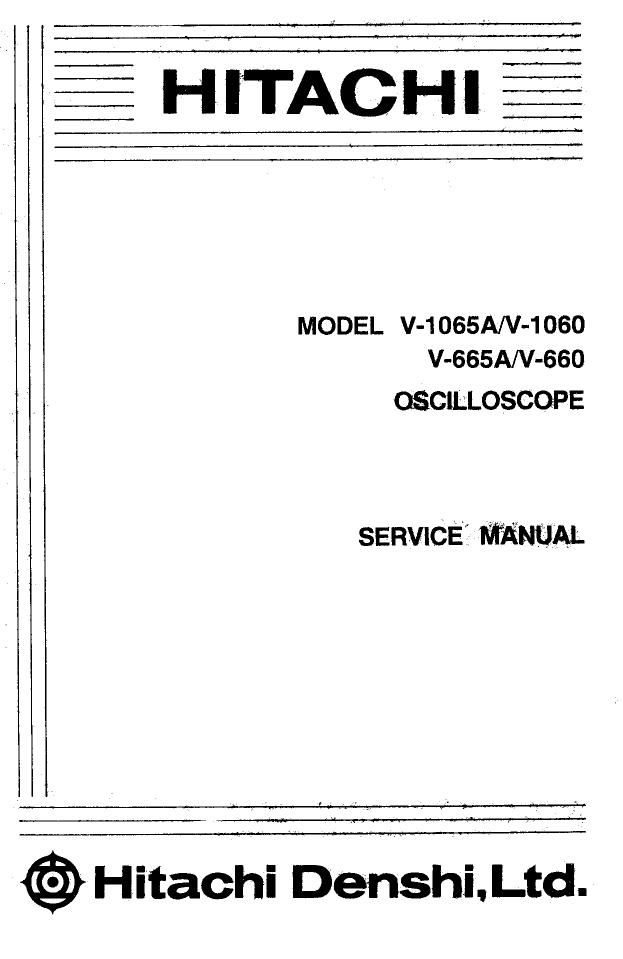

Hitachi V 1060 Service Manual

This is the 139 pages manual for Hitachi V 1060 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 139

Extracted text from Hitachi V 1060 Service Manual (Ocr-read)

Page 31

CH1 input: Tektronix's pulse generator PG506 or
equivalent when the PG506 is in the
FAST RISE mode, a square wave (Tré1
ns) is obtained. Connect this signal

to CH1 in SO-ohm termination.

b. Adjust CV517 so that the amplitude around the rising edge

is minimum.

20ns

c. Adjust CV515 so that the portion near 20 ms is flat.

1/, Flat

/ x
I \

\ I
\

20ns

d. Adjust CV556 so that the midway point between the rising
edge and 20 n5 is flat.

20ns
