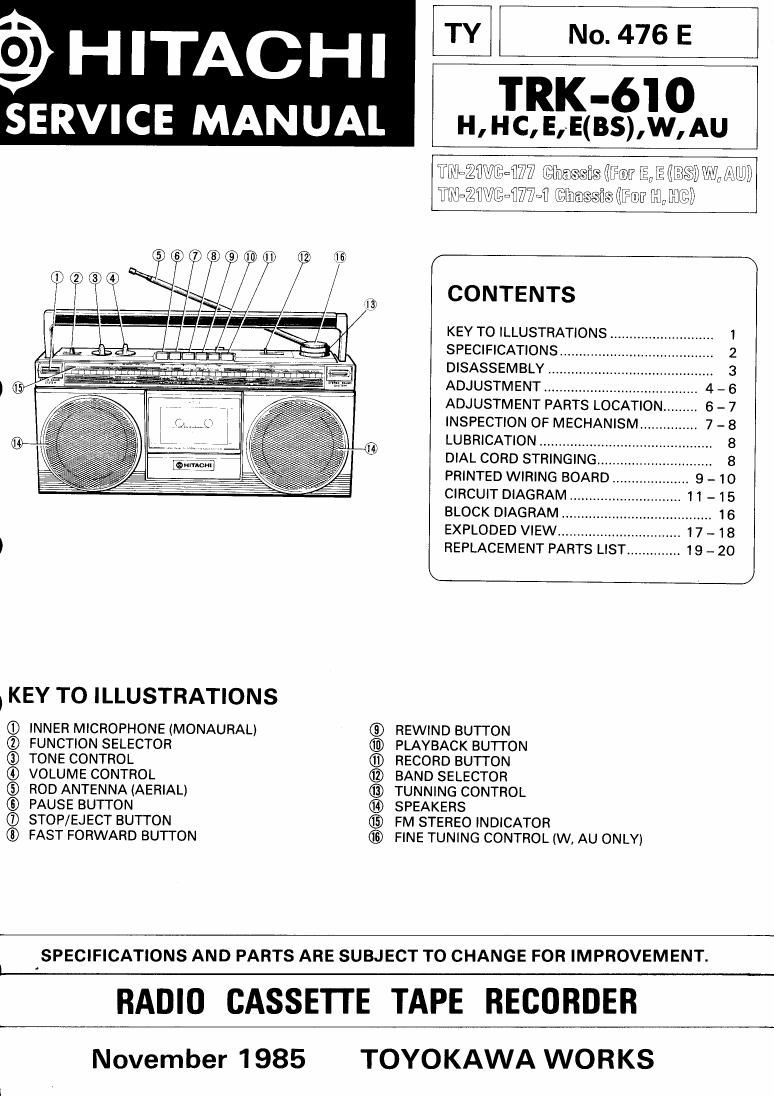

Page 1

TY No. 476 E

§I HITACHI

SERVICE MANUAL "9610

H, HC, E,-E(BS),W,AU

WeiflWuflW @CfléISSSESS GIFCUI? E E (IRS) WWW/AW
TW=ZZW®~TW£ @IRDSSES LIFTER REDUCE?)

CONTENTS

KEY TO ILLUSTRATIONS ...........................
SPECIFICATIONS .........
DISASSEMBLY
ADJUSTMENT .....................
ADJUSTMENT PARTS LOCATION.
INSPECTION OF MECHANISM.
LUBRICATION ................................
DIAL CORD STRINGING .............
PRINTED WIRING BOARD
CIRCUIT DIAGRAM .......... ..
BLOCK DIAGRAM .......... 16
EXPLODED VIEW ............. .I
I REPLACEMENT PARTS LIST .............. 19 - 20

@figfi

, KEY TO ILLUSTRATIONS

G) INNER MICROPHONE (MONAURAL) GD REWIND BUTTON

® FUNCTION SELECTOR PLAYBACK BUTTON

® TONE CONTROL ® RECORD BUTTON

6) VOLUME CONTROL ® BAND SELECTOR

® ROD ANTENNA (AERIAL) ® TUNNING CONTROL

(9 PAUSE BUTTON SPEAKERS

Q) STOP/EJECT BUTTON ® FM STEREO INDICATOR

FAST FORWARD BUTTON FINE TUNING CONTROL (w, AU ONLY)

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.

RADIO CASSETTE TAPE RECORDER

November 1985 TOYOKAWA WORKS
