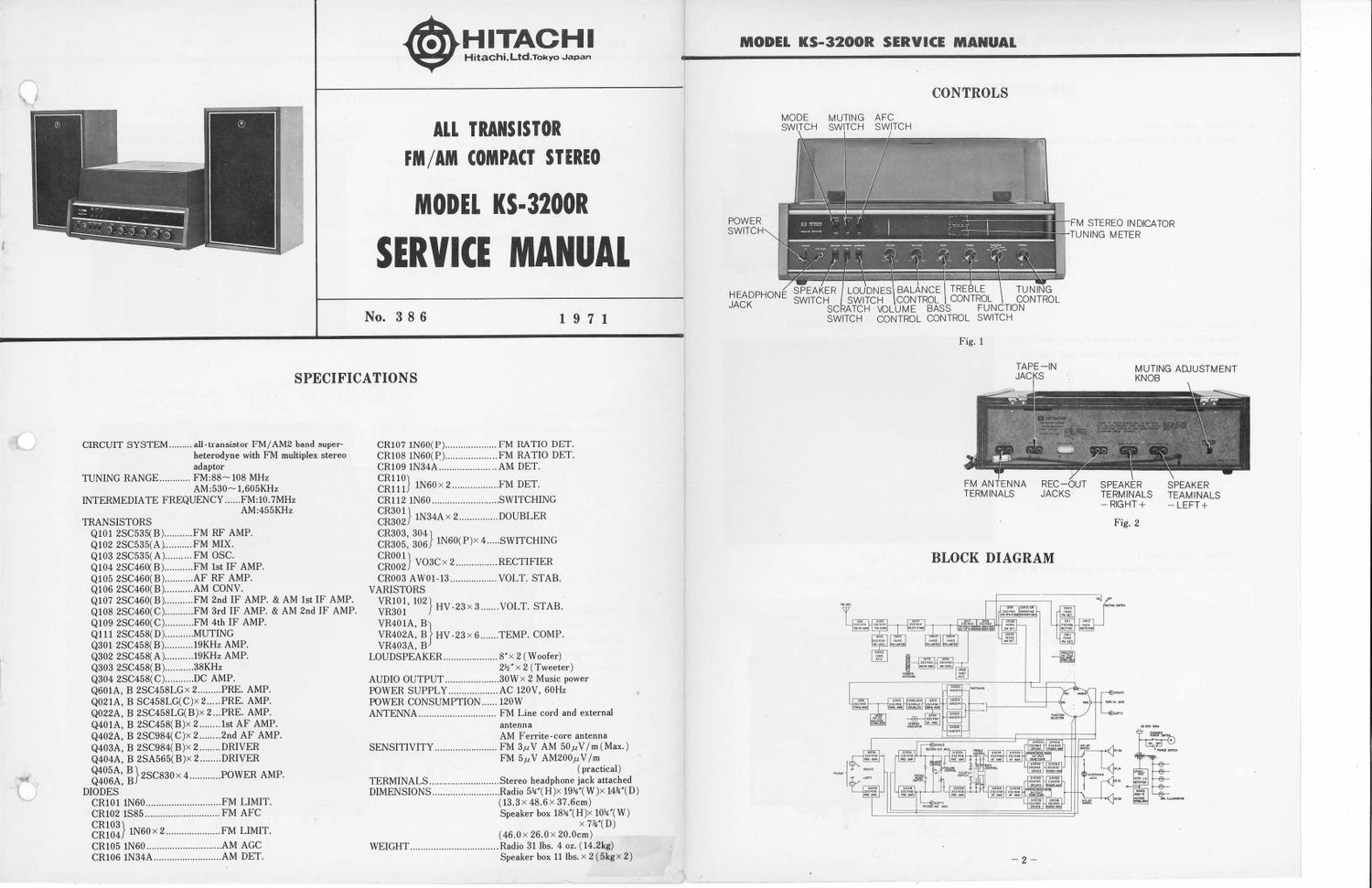

MODEL KS-3200R SERVICE MANUAL

1. Removal of back cover

Remove three screws holding back cover shownin Fig. 3.

2. Removal of chassis.

After pulling out the six knobs and a power switch knob,
remove four screws holding chassis and take out the

chassis shown in Fig. 4.

3. Removal of front panel.

DISASSEMBLY

BACK COVER
HOLDING SCREWS
A ,

Fig. 3

CHASSIS HOLDING SCREWS
4

Fig. 4

Remove five screws holding front panel shown in Figs.

5 and 6.

FRONT PANEL HOLDING SCREWS

RF-IF BLOCK
HOLDING
SCREWS

HOLDING
SCREWS

POWER BLOCK "I
HOLDING SCREWS '

AF BLOCK
. HOLDING SCREWS

Fig. 5

6. Removal of circuit board.

FRONT PANEL HOLDING SCREWS

4. Removal of dial lamp cover.

Remove two screws holding dlial lamp cover shown in
Fig. 7.

DIAL LAMP COVER INDICATOR
HOLDING SCREWS (2) HOLDING
SCREWS

DIAL LAMP COVER
HOLDING SCREWS (1)

5. Removal of indicator.
Remove two screws holding indicator shown in Fig.

Fig. 7

ROTARY SWITCH
HOLDING NUTS

Remove five screws holding RF-IF block, six screws
holding AF block, two screws holding power block and two
screws holding equalizer block shown in Fig. 5.

Removefour nuts holding rotary switches shown in Fig. 8.
