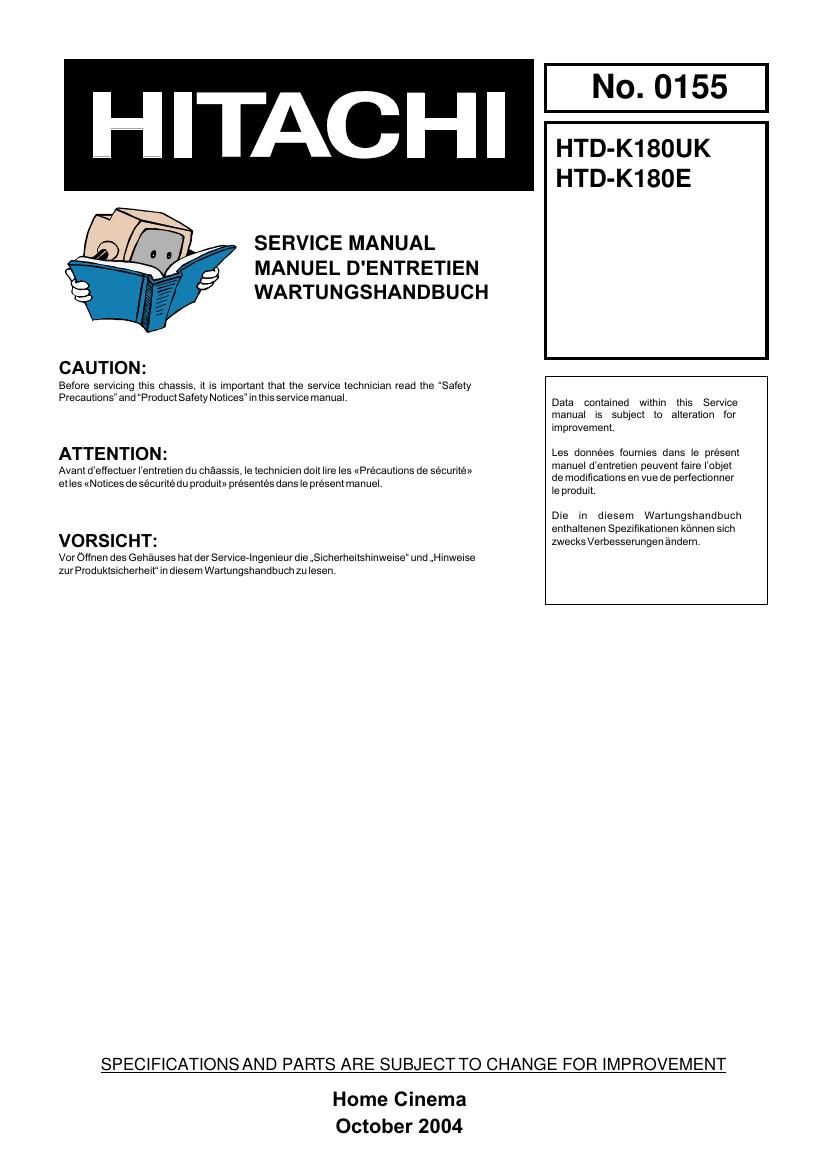

Hitachi HTDK 180 Service Manual
This is the 49 pages manual for Hitachi HTDK 180 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hitachi HTDK 180 Service Manual (Ocr-read)
Page 1
1. GENERAL DESCRIPTION 1.1 MT 1379 The MT1370 Progressive Scan DVD Player Combo chip is a single-chip MPEG video decoding chip that integrates audio/video stream data processing, TV encoder four video DACs with macrovision, copy protection, DVD system navigation, system control and housekeeping functions. These features can be listed as follows: General Features: - Progressive scan DVD-player combo chip. - Support NTSC, PAL-BDGHI, PAL-N, PAL-M interlace TV format and 480p, 576p progressive TV format. - Built-in progressive video output. - DVD-Video, VCD 1.1, 2.0 and SVCD. - Unified track buffer A/V decoding buffer. - Supports 16-bit/32-bit SDRAM data bus interface. - Servo controlling and data channel processing. Video Related Features: · Macrovision 7.1 for NTSC/PAL interlaced video. · Simultaneous composite video and S-video outputs, or composite and YUV outputs, or composite and RGB outputs. · 8-bit CCIR 601 YUV 4:2:2 output. . Decodes MPEG video and MPEG2 main profile at main level. · Maximum input bit rate of 15 Mbits/sec. Audio Related Features: · Dolby Digital (AC-3) and Dolby Pro Logic. · Dolby Digital S/PDIF digital oudio outputs. · High-Definition Compatible Digital (HDCD) decoding. · CD-DA. · MP3. 1.2 MEMORY SDRAM Memory Interface The MT1379 provides a glueless a 16-bit interface to DRAM memory devices used as OSD MPEG stream and video buffer memory for a DVD player. The maximum amount of memory supported is 16 Mb of Synchronous DRAM ( SDRAM ). The memory interface is configurable in depth to support 128 Mb adressing. The memory
Page 2
interface controls access to both external SDRAM memories, which can be the sole unified external read/write memory acting as program and data memory as well as various decoding and display buffers. 1.3 DRIVE INTERFACES The MT1379 supports the DV34 interface, and other RF and servo interfaces used by any types of DVD loaders. These interfaces meet the specifications of many DVD loader manufacturers. 1.4 FRONT PANEL The front panel is based around an Futaba VFD and a common NEC front panel controller chip, (uPD16311). The MT1379 controls the uPD16311 using several control signals, (clock, data, chip select). The infrared remote control signal is passed directly to the MT1379 for decoding. 1.5 REAR PANEL A typical rear panel is included in the referance design. This rear panel supports: - Six channel or two channel audio outputs. - Optical and coax S/PDIF outputs. - Composite, S-Video, and SCART outputs. The six-video signals used to provide CVBS, S-Video, and RGB are generated by the MT1379s internal video DAC. The video signals are buffered by external circutiry. The S/PDIF serial stream is also generated by the MT1379 output by the rear panel. AK4382, CS4392 Audio DACs are used for two channel audio output with MT1379. 12-pin DDX board output jack gives out the amplified audio. Digital Audio is processed in the DDX-8228 IC and then amplified in the DDX-2050 Power Amplifier ICs.
