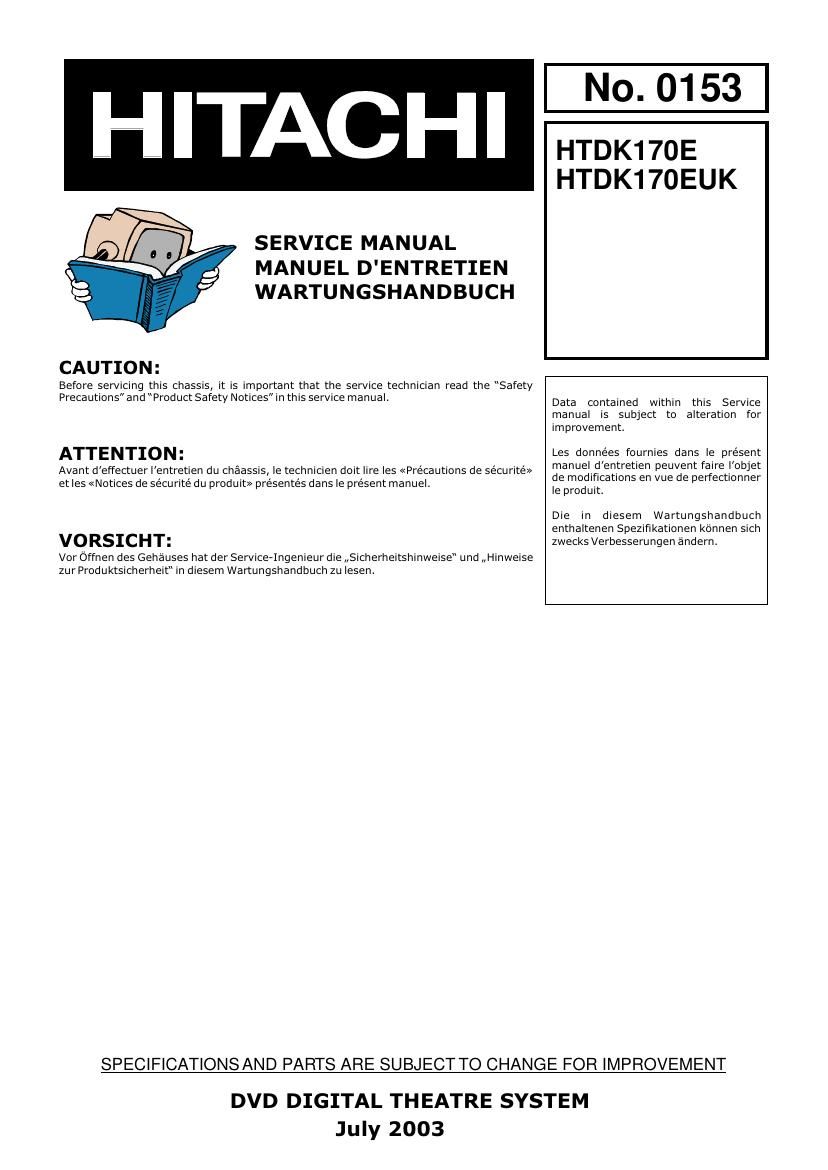

Hitachi HTDK 170 E Service Manual
This is the 54 pages manual for Hitachi HTDK 170 E Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hitachi HTDK 170 E Service Manual (Ocr-read)
Page 1
2 1. GENERAL DESCRIPTION 1.1 ES60X8 The ES6008/ES6018 Vibratto DVD processor is a single-chip MPEG video decoding chip that integrates audio/video stream data processing, TV encoder, four video DACs with Macrovision. copy protection, DVD system navigation, system control and housekeeping functions. The Vibratto DVD processor is built on the ESS proprietary dual CPU Programmable Multimedia Processor (PMP) core consists of 32-bit RISC and 64-bit DSP processors and offers the best DVD feature set. These features can be listed as follows: General Features: · Single-chip DVD processor based on ESS proprietary dual CPU PMP core. · Integrated NTSC/PAL encoder. · Four integrated 10-bit video DACs. · DVD-Video, VCD 1.1, 2.0, and SVCD · Interface for ATAPI devices and A/V DVD loaders. · Interface for Compact Flash, Memory Stick and SmartMedia cards. · Direct interface of 8- or 16-bit SDRAM up to 128-Mb capacity. · Direct interface for up to four banks of 8-/16-bit EPROM or Flash EPROM for up to 16-MB capacity. Video Related Features: · Macrovision 7.1 for NTSC/PAL interlaced video. · Simultaneous composite video and S-video outputs, or composite and YUV outputs, or composite and RGB outputs. · 8-bit CCIR 601 YUV 4:2:2 output. · On-Screen Display (OSD) controller with 3-bit blending provides display with 256 colors in 8 degrees of transparency. · Subpicture Unit (SPU) decoder supports karaoke lyric, subtitles, and EIA-608 compliant Line 21 Captioning. Audio Related Features: · Dolby Digital (AC-3) and Dolby Pro Logic.
Page 2
3 · High-Definition Compatible Digital. (HDCD) decoding. · Dolby Digital Class A and HDCD certified. · CD-DA. · MP3. 1.2 MEMORY 1.2.1 System SRAM Interface The system SRAM interface controls access to optional external SRAM, which can be used for RISC code, stack, and data. The SRAM bus supports four independent address spaces, each having programmable bus width and wait states. The interface can support not only SRAM, ROM/EPROM and memory-mapped I/O ports for standalone applications are also supported. 1.2.2DRAM Memory Interface The Vibratto provides a glueless 16-bit interface to DRAM memory devices used as video memory for a DVD player. The maximum amount of memory supported is 16 MB of Synchronous DRAM (SDRAM). The memory interface is configurable in depth to support 128-Mb addressing. The memory interface controls access to both external SDRAM or EDO memories, which can be the sole unified external read/write memory acting as program and data memory as well as various decoding and display buffers. 1.3 DRIVE INTERFACES The Vibratto supports the AT Attachment Packet Interface (ATAPI), Integrated Drive Electronics (IDE), and other parallel and serial port interfaces used by many types of DVD loaders. These interfaces meet the specifications of many DVD loader manufacturers. An ATAPI drive is connected via the standard 34 pin dual row PC style IDE header 1.4 FRONT PANEL The front panel is based around an Futaba VFD and a common NEC front panel controller chip, (uPD16311). The ES6008/ES6018 controls the uPD16311 using several control signals, (clock, data, chip select). The infrared remote control signal is passed directly to the ES60X8 and 8051 for decoding. 1.5 REAR PANEL Outputs and Inputs at the AV1000 rear panel: - Left, Right and Subwoofer (active) audio outputs. - Left, Right and CVBS input. - Composite, S-Video, and SCART outputs. - Input SCART - 5x15W 8ohms (L,R,SL,SR,C) + 1x25W 4ohms Subwoofer outputs. - AM / FM Tuner Antenna input - 220-240 V 50Hz AC Power input The six-video signals used to provide CVBS, S-Video, and RGB are generated by the ES60X8s internal video DAC. The video signals are buffered by external circuitry. Six channel audio output by the ES6018 in the form of three I2 S (or similar) data streams. The S/PDIF serial stream is also generated by the ES60X8 output by the rear panel. A six channel audio DAC (AK4356) are used for six channel audio output with ES6018, and similarly one AK4362A Audio DAC is used for two channel audio output with ES6008 or ES6018.
