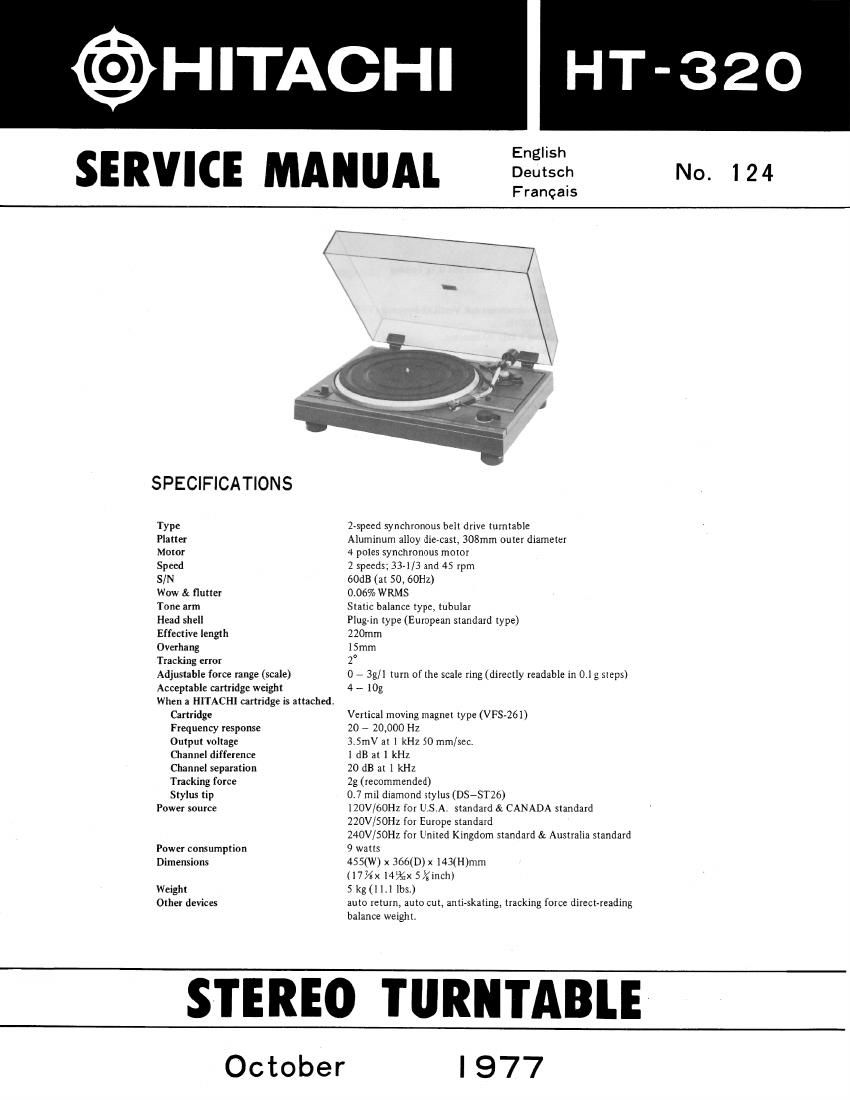

Page 1
@HITACHI
SERVICE MANUAL
HT-320
English
Deutsch
Francais
No. 124
SPECIFICATIONS
Type
Platter
Motor
Speed
S/N
Wow & flutter
Tone arm
Head shell
Effective length
Overhang
Tracking error
Adjustable force range (scale)
Acceptable cartridge weight
When a HITACHI cartridge is attached.
Cartridge
Frequency response
Output voltage
Channel difference
Channel separation
Tracking force
Stylus tip
Power source
Power consumption
Dimensions
Weight
Other devices
2-speed synchronous belt drive turntable
Aluminum alloy die-cast, 308mm outer diameter
4 poles synchronous motor
2 speeds; 3371/3 and 45 rpm
60dB (at so, 60Hz)
0.06% WRMS
Static balance type. tubular
Plug-in type (European standard type)
220mm
15mm
2.:
0 ~ 3g/1 turn of the scale ring (directly readable in 0.l g, s|epsI
4 r 10g
Vertical moving magnet type (VFS-261)
20 - 20,000 HZ
3.5mV at 1 kHz 50 mm/sec.
1 dB at l kHz
20 dB at 1 kHz
2g (recommended)
0.7 mil diamond stylus (D875T26)
lZOV/GOHZ for USA standard & CANADA standard
220V/50HZ for Europe standard
240V/50Hz for United Kingdom standard & Australia standard
9 watts
455(w) x 366(D) x 143(H)mm
(17%x I4%x Sysilrclr)
5 kg(il.l lbs.)
auto return, auto cut, anli»skatmg, tracking force direct-reading
balance weight.
STEREO TURNTABLE-
October
I977
