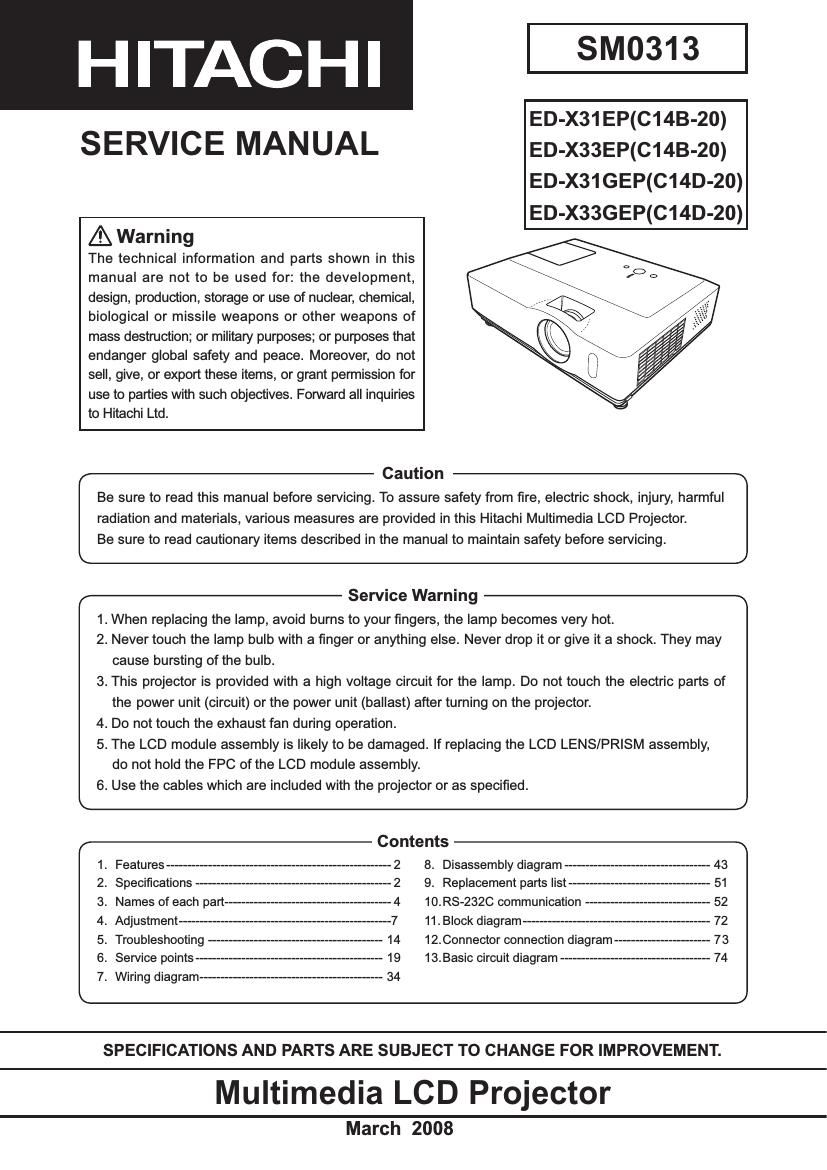

Hitachi EDX 31 GEP Service Manual
This is the 92 pages manual for Hitachi EDX 31 GEP Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hitachi EDX 31 GEP Service Manual (Ocr-read)
Page 1
2 ED-X31E / ED-X33E (C14B-20) 1. Features - High Brightness - Rich Connectivity - Low Noise - Powerful Sound 2. Specifications Liquid crystal panelDrive system TFT active matrix Panel size 1.6cm(0.63 type) Number of pixels 1024 (H) x 768 (V) Lamp 220W UHB Computer signal Computer IN 1 Video : Analog 0.7Vp-p(75 Ÿ termination) H/V. sync. : TTL level (positive/negative) Composite sync. : TTL level 2 Computer OUT Video:Analog 0.7Vp-p, 75 Ÿ output impedance (positive) H/V. sync.: TTL level (positive/negative) Composite sync.: TTL level VIDEO signal VIDEO IN 1.0Vp-p (75 Ÿ termination) S-VIDEO IN Y signal: 1.0±0.1Vp-p, (75 Ÿ termination) C signal: 0.286±0.1Vp-p (NTSC burst signal, 75 Ÿ termination) 0.3±0.1Vp-p (PAL/SECAM burst signal, 75 Ÿ termination) COMPONENT VIDEO Y 1.0±0.1Vp-p, 75 Ÿ termination (positive) C B/PB 0.7±0.1Vp-p, 75 Ÿ termination (positive) C R/PR 0.7±0.1Vp-p, 75 Ÿ termination (positive) AUDIO signal AUDIO IN 1 200mVrms, 47k Ÿ or more (max. 2Vrms) AUDIO IN 2 AUDIO IN 3 L/R 200mVrms, 47k Ÿ or more (max. 2Vrms) AUDIO OUT output impedance 1k Ÿ (max. 2Vrms) RS232C INPUT Hi: Max. 20V, Min. 2.6V Lo: Typ. –20.0V, Max. 0.8V OUTPUT Hi: Typ. 8.0V, Min. 5.0V Lo: Typ. –7.0V, Max. –5.0V USB (Mouse) I/O Level (differential) Amplitude of differential signal | (D + ) - (D – ) | > 0.2V D + > 2.8V, D – < 0.3V or D + > 2.8V, D – < 0.3V Amplitude of signal INPUT: L = 0.8V or less, H = 2.0V or more OUTPUT: L = 0.3V or less, H = 2.8V ~ 3.6V Audio output 7W Power supply AC100~120V/3.5A, AC220~240V/1.5A Power consumption 320W Dimensions 340 (W) x 100 (H) x 270 (D) mm (Not including protruding parts) Weight 3.5kg Temperature range Operation : 5~35°C Storage : -20~60°C Accessories Remote control x1 RGB cable x 1 Power cords x 2 Batteries x 2Users manuals x 1 LENS CAP and STRAP x 1 Audio/Video cable x 1
Page 2
3 ED-X31GE / ED-X33GE (C14D-20) 1. Features - High Brightness - Rich Connectivity - Low Noise - Powerful Sound 2. Specifications Liquid crystal panelDrive system TFT active matrix Panel size 1.6cm(0.63 type) Number of pixels 1024 (H) x 768 (V) Lamp 230W UHB Computer signal Computer IN 1 Video : Analog 0.7Vp-p(75 Ÿ termination) H/V. sync. : TTL level (positive/negative) Composite sync. : TTL level 2 Computer OUT Video:Analog 0.7Vp-p, 75 Ÿ output impedance (positive) H/V. sync.: TTL level (positive/negative) Composite sync.: TTL level VIDEO signal VIDEO IN 1.0Vp-p (75 Ÿ termination) S-VIDEO IN Y signal: 1.0±0.1Vp-p, (75 Ÿ termination) C signal: 0.286±0.1Vp-p (NTSC burst signal, 75 Ÿ termination) 0.3±0.1Vp-p (PAL/SECAM burst signal, 75 Ÿ termination) COMPONENT VIDEO Y 1.0±0.1Vp-p, 75 Ÿ termination (positive) C B/PB 0.7±0.1Vp-p, 75 Ÿ termination (positive) C R/PR 0.7±0.1Vp-p, 75 Ÿ termination (positive) AUDIO signal AUDIO IN 1 200mVrms, 47k Ÿ or more (max. 2Vrms) AUDIO IN 2 AUDIO IN 3 L/R 200mVrms, 47k Ÿ or more (max. 2Vrms) AUDIO OUT output impedance 1k Ÿ (max. 2Vrms) RS232C INPUT Hi: Max. 20V, Min. 2.6V Lo: Typ. –20.0V, Max. 0.8V OUTPUT Hi: Typ. 8.0V, Min. 5.0V Lo: Typ. –7.0V, Max. –5.0V USB (Mouse) I/O Level (differential) Amplitude of differential signal | (D + ) - (D – ) | > 0.2V D + > 2.8V, D – < 0.3V or D + > 2.8V, D – < 0.3V Amplitude of signal INPUT: L = 0.8V or less, H = 2.0V or more OUTPUT: L = 0.3V or less, H = 2.8V ~ 3.6V Audio output 10W x 1 Power supply AC100~120V/3.5A, AC220~240V/1.5A Power consumption 320W Dimensions 340 (W) x 100 (H) x 270 (D) mm (Not including protruding parts) Weight 3.5kg Temperature range Operation : 5~35°C Storage : -20~60°C Accessories Remote control x1 RGB cable x 1 Power cords x 2 Batteries x 2Users manuals x 1 LENS CAP and STRAP x 1 Audio/Video cable x 1
