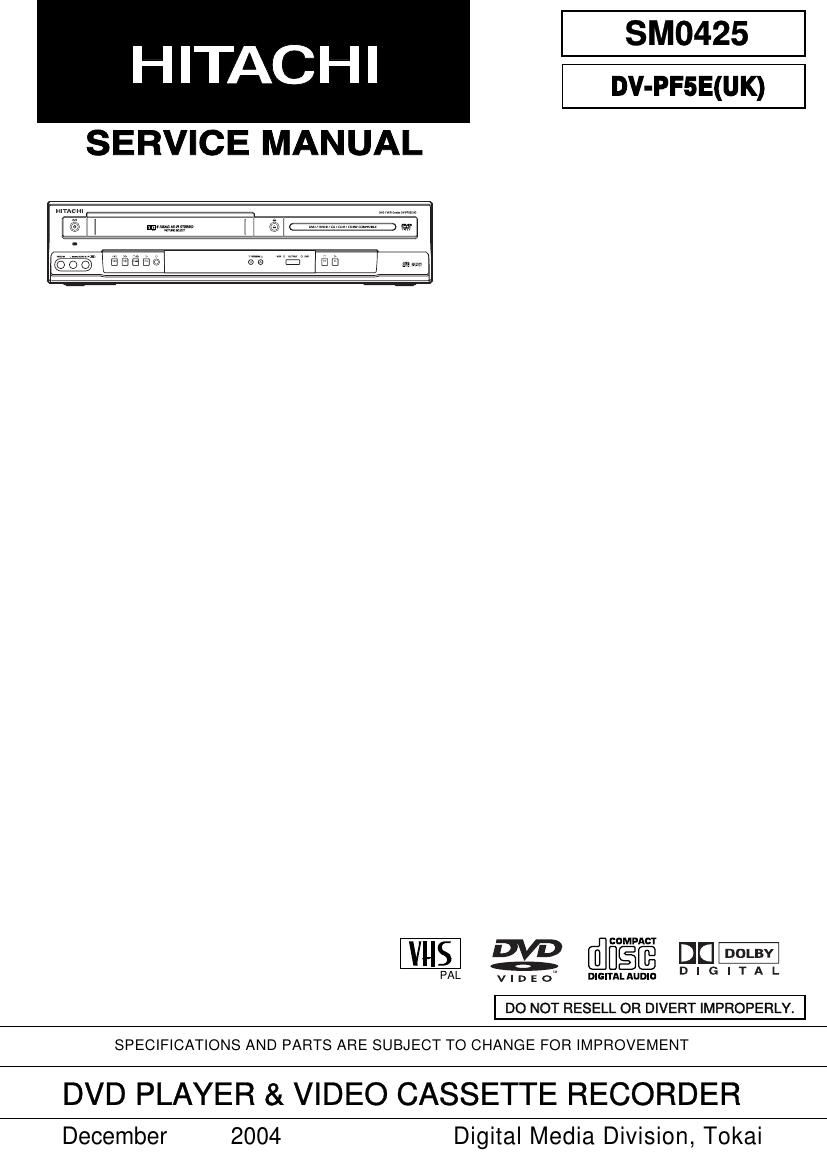

Hitachi DVPF 5 E Service Manual
This is the 107 pages manual for Hitachi DVPF 5 E Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hitachi DVPF 5 E Service Manual (Ocr-read)
Page 1
CONTENTS 1 CAUTIONS FOR SAFETY IN PERFORMING REPAIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1-1 LASER BEAM SAFETY PRECAUTIONS . . . . . . . 1-1 1-2 IMPORTANT SAFETY PRECAUTIONS . . . . . . . . 1-2 1-2-1 Product Safety Notice . . . . . . . . . . . . . . . . . . . . 1-2 1-2-2 Precautions during Servicing . . . . . . . . . . . . . . 1-2 1-2-3 Safety Check after Servicing . . . . . . . . . . . . . . . 1-3 1-3 STANDARD NOTES FOR SERVICING . . . . . . . . . 1-4 1-3-1 Circuit Board Indications . . . . . . . . . . . . . . . . . . 1-4 1-3-2 Instructions for Connectors . . . . . . . . . . . . . . . . 1-4 1-3-3 Pb (Lead) Free Solder . . . . . . . . . . . . . . . . . . . . 1-4 1-3-4 Instructions for Handling Semi-conductors . . . . 1-4 2 GENERAL INFORMATION . . . . . . . . . . . . . . . 2-1 2-1 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2-2 COMPARISON OF MODELS. . . . . . . . . . . . . . . . . 2-2 2-2-1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2-2-2 VCR Section . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2-2-3 DVD Section . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2-3 COMPARISON OF MAIN CONTROL ICS . . . . . . . 2-4 2-4 LIST OF ABBREVIATIONS AND TERMS FOR DVD PLAYER . . . . . . . . . . . . . . . . . . . . . . . . 2-5 2-5 FUNCTION INDICATOR SYMBOLS . . . . . . . . . . . 2-6 2-6 OPERATING CONTROLS AND FUNCTIONS. . . . 2-7 3 MAINTENANCE AND INSPECTION. . . . . . . . 3-1 3-1 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 3-1 3-1-1 Power Supply Section . . . . . . . . . . . . . . . . . . . . 3-1 3-1-2 DVD Section . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3-1-3 VCR Section . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3-2 FIRMWARE RENEWAL MODE . . . . . . . . . . . . . . 3-15 3-2-1 How to Update the Firmware Version . . . . . . . 3-15 3-2-2 How to Verify the Firmware Version . . . . . . . . 3-16 3-3 STANDARD MAINTENANCE. . . . . . . . . . . . . . . . 3-17 3-3-1 Service Schedule of Components . . . . . . . . . . 3-17 3-3-2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18 4 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4-1 CABINET DISASSEMBLY INSTRUCTIONS . . . . . 4-1 4-1-1 Disassembly Flowchart . . . . . . . . . . . . . . . . . . . 4-1 4-1-2 Disassembly Method . . . . . . . . . . . . . . . . . . . . . 4-1 4-1-3 How to Eject Manualy . . . . . . . . . . . . . . . . . . . . 4-5 4-2 DISASSEMBLY/ASSEMBLY PROCEDURES OF DECK MECHANISM . . . . . . . . . . . . . . . . . . . . 4-6 4-3 ALIGNMENT PROCEDURES OF MECHANISM. 4-15 5 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5-1 PREPARATION FOR SERVICING . . . . . . . . . . . . . 5-1 5-1-1 How to Enter the Service Mode. . . . . . . . . . . . . 5-1 5-2 FIXTURE AND TAPE FOR ADJUSTMENT . . . . . . 5-2 5-2-1 How To Use The Fixtures And Tape . . . . . . . . . 5-2 5-3 ELECTRICAL ADJUSTMENT INSTRUCTIONS . . 5-3 5-3-1 Test Equipment Required . . . . . . . . . . . . . . . . . 5-3 5-3-2 Head Switching Position Adjustment . . . . . . . . . 5-3 5-4 MECHANICAL ALIGNMENT PROCEDURES . . . . 5-4 5-4-1 Service Information . . . . . . . . . . . . . . . . . . . . . . 5-4 5-4-2 Tape Interchangeability Alignment . . . . . . . . . . 5-51-A. Preliminary/Final Checking and Alignment of Tape Path . . . . . . . . . . . . . . . . . . . 5-6 1-B. X Value Alignment . . . . . . . . . . . . . . . . . . . . . . . 5-6 1-C. Checking/Adjustment of Envelope Waveform . . 5-7 1-D. Azimuth Alignment of Audio/Control/Erase Head . . . . . . . . . . . . . . . . . 5-8 1-E. Checking and Alignment of Tape Path during reversing . . . . . . . . . . . . . . . . 5-8 6 EXPLODEDS VIEWS AND PARTS LIST . . . . 6-1 6-1 EXPLODED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6-1-1 Cabinet Section . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6-1-2 Deck Mechanism View 1 Section . . . . . . . . . . . 6-2 6-1-3 Deck Mechanism View 2 Section . . . . . . . . . . . 6-2 6-1-4 Deck Mechanism View 3 Section . . . . . . . . . . . 6-3 6-2 REPLACEMENT PARTS LIST . . . . . . . . . . . . . . . . 6-4 6-2-1 Mechanical Parts List . . . . . . . . . . . . . . . . . . . . 6-4 6-2-2 Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . 6-6 7 APPENDIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 7-1 SYSTEM CONTROL TIMING CHARTS . . . . . . . . 7-1 7-2 IC PIN FUNCTION DESCRIPTIONS . . . . . . . . . . . 7-7 7-3 LEAD IDENTIFICATIONS . . . . . . . . . . . . . . . . . . 7-10 S SCHEMATIC, WIRING DIAGRAMS S-1 Schematic Diagrams/CBAs and Test Points . . . . . S-1 S-2 Wiring Diagrams < VCR Section > . . . . . . . . . . . . . S-3 S-3 Wiring Diagrams < DVD Section > . . . . . . . . . . . . . S-4 S-4 Main 1/9 Schematic Diagram . . . . . . . . . . . . . . . . . S-5 S-5 Main 2/9, Sensor & Power SW Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . S-6 S-6 Main 3/9 Schematic Diagram . . . . . . . . . . . . . . . . . S-7 S-7 Main 4/9 Schematic Diagram . . . . . . . . . . . . . . . . . S-8 S-8 Main 5/9 Schematic Diagram. . . . . . . . . . . . . . . . . S-9 S-9 Main 6/9 Schematic Diagram . . . . . . . . . . . . . . . . S-10 S-10 Main 7/9 & DVD Open/Close Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . S-11 S-11 Main 8/9 Schematic Diagram . . . . . . . . . . . . . . . . S-12 S-12 Main 9/9 Schematic Diagram . . . . . . . . . . . . . . . . S-13 S-13 Power Supply & Junction Schematic Diagrams . . S-14 S-14 Jack-A Schematic Diagram . . . . . . . . . . . . . . . . . S-15 S-15 AFV Schematic Diagram . . . . . . . . . . . . . . . . . . . S-16 S-16 DVD Main 1/3 Schematic Diagram. . . . . . . . . . . . S-17 S-17 DVD Main 2/3 Schematic Diagram. . . . . . . . . . . . S-18 S-18 IC101 Voltage Chart. . . . . . . . . . . . . . . . . . . . . . . S-19 S-19 DVD Main 3/3 Schematic Diagram. . . . . . . . . . . . S-20 S-20 Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-21 C CIRCUIT BOARD DIAGRAMS C-1 Main CBA Top View & Sensor CBA Top View . . . . C-1 C-2 Main CBA Bottom View . . . . . . . . . . . . . . . . . . . . . C-2 C-3 Power SW CBA Top/Bottom View & DVD Open/Close CBA Top/Bottom View . . . . . . . . C-3 C-4 Power Supply CBA Top/Bottom View & Junction CBA Top/Bottom View . . . . . . . . . . . . . . . C-4 C-5 Jack-A CBA Top/Bottom View & AFV CBA Top/Bottom View . . . . . . . . . . . . . . . . . . C- 5 B BLOCK DIAGRAMS B-1 Servo/System Control Block Diagram . . . . . . . . . . B-1 B-2 Video Block Diagram . . . . . . . . . . . . . . . . . . . . . . . B-2 B-3 Audio Block Diagram . . . . . . . . . . . . . . . . . . . . . . . B-3 B-4 Hi-Fi Audio Block Diagram . . . . . . . . . . . . . . . . . . . B-4 B-5 Power Supply Block Diagram . . . . . . . . . . . . . . . . . B-5 B-6 DVD System Control/Servo Block Diagram . . . . . . B-6 B-7 Digital Signal Process Block Diagram . . . . . . . . . . B-7 B-8 DVD Video / Audio Block Diagram . . . . . . . . . . . . . B-8
Page 2
1-1 Drive Mecha Assembly Laser Beam Radiation Laser Pickup Turntable 1-1 LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam. Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure.Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. CAUTION FOR SAFETY IN PERFORMING REPAIR 1
Page 43
4-9 [1] (S-1) (S-1) Fig. DM3H [2] Locking tab View for A First, while pushing the locking tab as shown in the right, slide and pull up the right side on [2] to release Pin A and Pin B from the slots A. Then, remove Pin C and Pin D on [2] from the slots B as shown.Pin A Slots B Pin C Pin B Pin D Slot A Slot A Fig. DM4H Pull upSlide 1 2 A [3] [6] [6] (L-2) Pin A Hole A Pin B Hole B(L-1) First, insert [6] diagonally in [3] as shown below. Then, install [6] in [3] while pushing (L-1) in a direction of arrow. After installing [6] in [3], confirm that pin A of [3] enters hole A of [6] properly. Installation of [3] and [6] View for A 2 1 [4] Install [6] in [4] while pulling (L-2) in a direction of arrow. After installing [6] in [4], confirm that pin B of [4] enters hole B of [6] properly. Installation of [4] and [6] View for B [3] [4] [5] [6] (L-1) (L-2) (P-1) (L-3) (S-1A) A B Fig. DM5H
