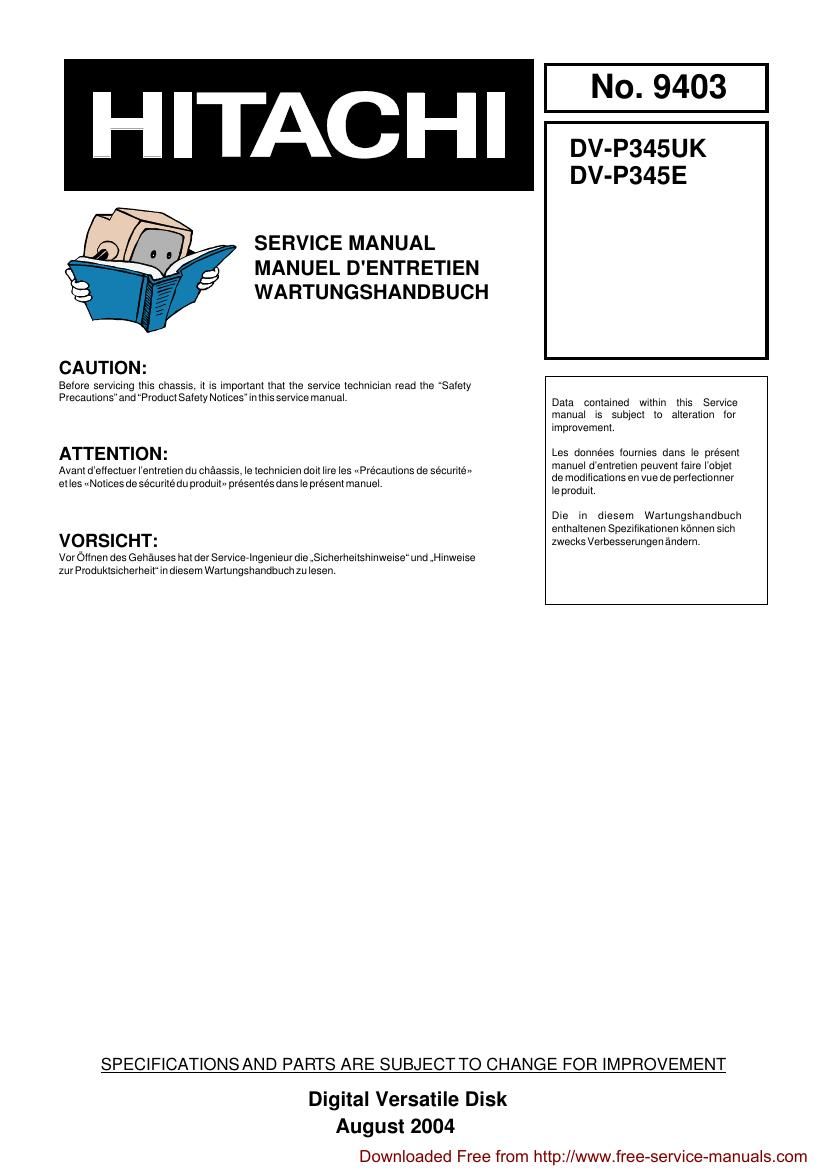

Hitachi DVP 345 UK Service Manual
This is the 32 pages manual for Hitachi DVP 345 UK Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hitachi DVP 345 UK Service Manual (Ocr-read)
Page 1
2 1. G ENERAL DESCRIPTION 1.1 ZR36768 The ZR36768 Disc Loader Controller and Decoder Device can control disc loaders and r\ ead bitstreams using the following media: DVD -ROM, DVDRW, CD -DA, CD -ROM, CD- R and CD-R/W discs. The device can decode bitstreams and process navigation data of t\ he following formats: DVD -Video, DVD -Audio, CD- DA, VCD (Video -CD), SVCD (Super Video -CD) and MP3. The features of this chip can be listed as follows: Disc loader control and bitstream processing · 8 analog inputs (low frequency) for servo errors and RF signals envelo\ pe monitoring · 11 actuators drive or control outputs. Two analog outputs through 11 bit\ s DACs (e.g. for the tracking and focus coils), and 9 PWM outputs divide d into two type groups: High frequency, uniform type PWMs (e.g. for the spindle and sled motor drives)\ , and lower frequency regular type PWMs, which can be used e.g. for programmed tray mo\ tion or RF amplifier parameter setting. · Processing of spindle an d sled position read-back devices · All servo loop closure, closed loop control and error handling. · Bitstream extraction using AGC, bit clock frequency detection and phase \ lock loop, adaptive threshold calculations, Viterbi bit decision, defect detection, fr ame sync detection and EFM/P conversion. · CD sub -code extraction and processing. · CD ECC for all CD types. CD EDC for Mode 1 discs · DVD ECC and EDC. · Track buffer and re -try management Decoding · Single chip solution for playback of DVD -Video, DVD -Audio Video -CD, Super Video- CD, CD- DA, and MP3 from CD -ROM, CD -R or CD -R/W. · Decoding and display of high resolution MPEG 1 and MPEG 2 still image se\ quences (including ASVs from DVD-Audio but without the transition effects). · Decoding of Dolby AC -3, DTS or MLP multi -cha nnel audio. · Decoding of MPEG 1 or MPEG 2 layer II mono, stereo, or multi -channel audio. Decoding of MPEG 1 or MPEG 2 Layer 3 (MP3) mono and stereo audio. · PCM and LPCM audio playback from DVD -Video, DVD-Audio, Video-CD and CD -DA. · Decoding and playback of sub- picture (including Highlight), and closed captions (line 21)\ data from DVD -Video discs. · Interlaced digital and analog video output or progressive analog video o\ utput. · NTSC and PAL standards. PAL playback of NTSC discs and NTSC playback of \ PAL discs. · Special modes support like pause, slow motion, fast forward and reverse. Post Processing · Audio down mixing, sample rate conversion, Dolby's pro -logic and 3D enhancement. · Karaoke mixing of decoded audio and two channels of input audio. · On-chip OSD engine wi th 32 color (24-bit YUV) palette, up to 8 levels of transparency; and capability of blinking regions and vertical scrolling. · On-screen and off -screen OSD memory regions for animation support. · 1/4 pixel and 1/4 line pan&scan · Horizontal and vertical up- and down-scaling with polyphase two -tap vertical and horizontal interpolation. Downloaded Free from http://www.free-service-manuals.com
Page 2
3· Letterbox and Pan-scan display aspect ratio conversion (16:9 to 4:3) · Automatic frame rate conversion (e.g., 3/2 pull down) and format conve\ rsion (16:9, 4:3, 1:1). · EIA-608 compatible modulation of line 21 (NTSC) or line 22 (PAL) closed captions data \ over the video output. · Edge adaptive, two fields, de -interlacing generating a progressive analog video output. Interfaces · 8-bit YUV 4:2:2 digital interlaced video output. · Composite, Y/C, YUV or RGB interlaced analog video output or component progressive analog video output (using 10 bits on -chip DACs) · Internally generated video sync signals and internally generated audio p\ ort clock signals. · 6/18/20/24 -bit I2S or EIAJ serial audio outputs. 16 bit I2S EIAJ serial audio input · 2 to 8 channels audio output. 2 channels audio input · S/PDIF output for compressed audio (including DTS) or reconstructed au\ dio (according to IEC 958 and its extensions). · Single 64 -Mbit, single 16 -Mbits and dual 16 Mbits SDRAMs (16 bits data) · Direct interface (through RF and servo amplifiers) to several types of\ disc loaders. · SW controlled GPIO to interface to IR remote control receiver, front pan\ el concentrator, audio DACs and ADC, etc., e.g. using I2C, SPI and other pro tocols. · 3 line serial general purpose slave interface (SSC) · 2 UART interfaces for CPU SW debug · JTAG interfaces for CPU, ADP and DSP SW debug Physical Features · Dual supply: 1.8V for the core and PLL, and 3.3V for the I/O and DACs. · 208 pin, PQFP package. · TTL I/O levels. 5V tolerance on many inputs. · Single 27MHz crystal/clock input. · 5 layer metal, 0.18 micron technology. · Less than 1.6 W power consumption during operation. · Several power- down modes 1.2 M EMORY 1.2.1 SDRAM Memory Interface The ZR36768 provides 16- bit interface to DRAM memory devices used as OSD, MPEG stream and video buffer memory for a DVD player. The maximum amount of m\ emory supported is 8 MB of Synchronous DRAM (SDRAM). The memory interface is configura\ ble in depth to support 64 -Mb addressin g. 1.3 D RIVE INTERFACES The ZR36768 supports d irect interface (through RF and servo amplifiers) to several types of disc loaders. 1.4 FRONT P ANEL The front panel is based around a Futaba VFD and a Princeton front panel\ controller chip, (PT6311). The ZR 36768 controls the PT16311 using several control signals, (clock, data,\ chip select). The infrared remote control signal is passed directly to \ the ZR36768 for decoding. Downloaded Free from http://www.free-service-manuals.com
