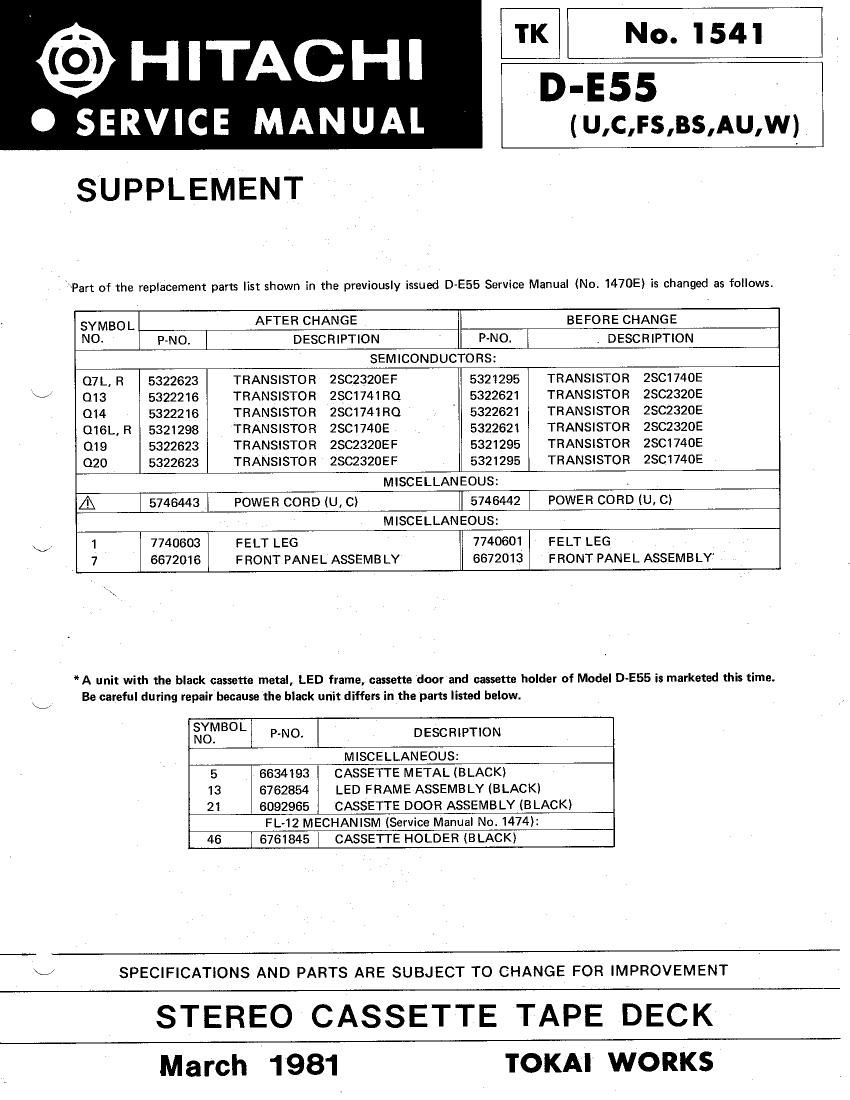

TK No. 1541
HITACHI M55
0 SERVICE MANUAL (U,C,FS,BS,AU,W)
SUPPLEMENT
LPart of the replacement pars list shown in the previously issued 0-655 Service Manual (No. 1470E) iS changed as follows.
SYMBOL AFTER CHANGE BEFORE CHANGE
N0. P»NO. DESCRIPTION MO. 1 DESCRIPTION
SEMICONDUCTORS:
Q7L,R 5322623 TRANSISTOR 2SC2320EF 5321295 TRANSISTOR 2SCI740E
V 013 5322216 TRANSISTOR 2sc1741RO 5322621 TRANSISTOR 2502320E
014 5322216 TRANSISTOR 2SC1741RO 5322621 TRANSISTOR 25C2320E
016L,R 5321298 TRANSISTOR 2SCI740E 5322621 TRANSISTOR 2sc2320E
019 5322623 TRANSISTOR 2SC2320EF 5321295 TRANSISTOR 2361740E
020 5322623 TRANSISTOR zsc2320EF 5321295 TRANSISTOR 2SC1740E
MISCELLANEOUS:
A l 5746443 POWER CORD (UTC) ll 5746442 POWER CORD (U, C)
MISCELLANEOUS:
V 1 7740603 FELT LEG 7740601 FELT LEG
6672016 FRONT PANEL ASSEMBLY 6672013 FRONT PANEL ASSEMBLY'
*A unit with the black cassette metal, LED frame, cassette door and cassette holder of Model D-E55 is marketed this time.
Be careful during repair because the black unit differs in the parts listed below.
fiBMBOL P-NO. DESCRIPTION
MISCELLANEOUS:
5 6634193 CASSETTE METAL (BLACK)
13 6762854 LED FRAME ASSEMBLY (BLACK)
21 6092965 CASSETTE DOOR ASSEMBLY (BLACK)
FL-12 MECHANISM (Service Manual No. 1474):
46 [ 6761845 | CASSETTE HOLDER (BLACK)
\4/ SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
STEREO CASSETTE TAPE DECK
March 1981 TOKAI WORKS
