Hitachi DA 800 Owners Manual

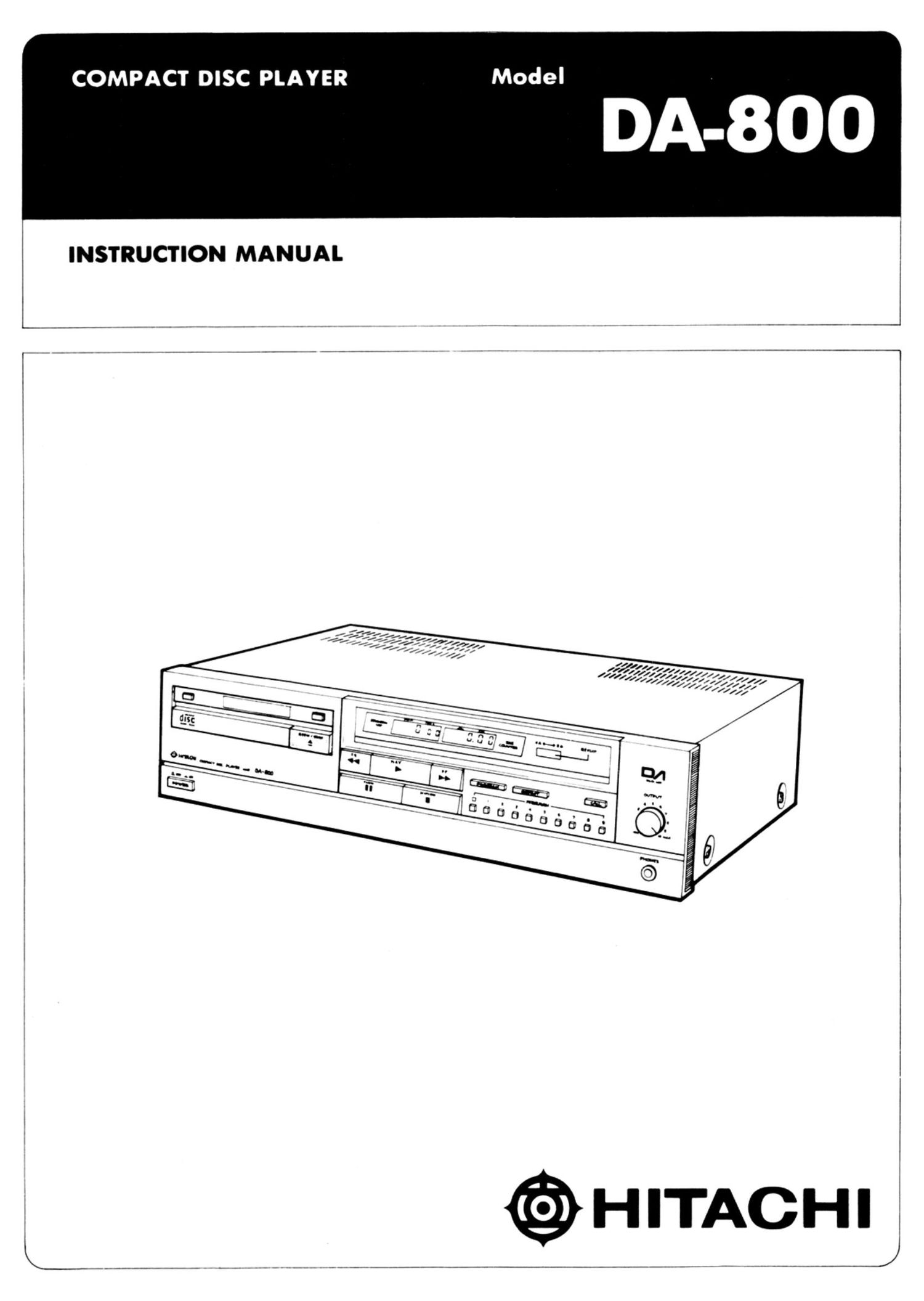

Page 1

COMPACT DISC PLAYER

INSTRUCTION MANUAL

#7er 7 ,7, AAA,_ . .. __-__-__fi

Page 2

(SAFEGUARD

W

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure
your personal safety. Improper use can result in potential electrical shock or fire hazards. In order not to defeat
Uhe safeguards, observe the following instructions for its installation, use and servicing. /

\

FCAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE \
SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

/

FEATURES

The DA-BOO is a compact disc player incorporating a

semiconductor laser pickup for playing compact discs

with high-density digitalized sound signals. It gives
superior sound quality and operation when compared to
the conventional analog systems.

I Contactless Signal Detection by
Semiconductor Laser Pick-up

By means of a semiconductor laser pickup, the digital

signals are read without contacting the disc. As a result,

there is no friction or wear to the pickup or disc.

I High Performance Sound Reproduction

Many Hitachi original semiconductors, including signal

processing MOS-LSI, microcomputer, etc, have been

developed for use in this unit.

0 SN Ratio of 95 dB
This signal-to-noise ratio has been improved about
30 times over that of analog systems. There is no
scratch noise and tape hiss.

0 Dynamic Range of 95 dB
The playback range from pianissimo (ppl to for-
tissimo (ffl is broad, with the ability to playback
dynamic sounds with depth.

0 Distortion Ratio of 0.003%

Achieves a world of clear, transparent sound.

0 Wow and Flutter of less than 0.001%

This is below the range of measurable values.
Naturally this far exceeds the limits detectable by
human ears.

0 Audio Circuitry Seeks for Sound Quality
Exclusive audio circuitry parts are selected with
critical care. By means of a construction which fully
takes into consideration sound quality, this unit gets
the finest possible performance from the compact
disc.

I Horizontal Front Loading System

The disc is placed on the horizontal disc table, and by

pressing a single button, auto loading is accomplished.

With a small player size of 43.5 cm (W) x 11 cm (H),

combination with other components is free and easy.

I Luxurious Functions

0 Random Memory Track Search Function
You can select the tracks you wish from the disc, and
play them automatically in any desired order.
Memory has a maximum capacity of 15 programs.

0 Auto Digital Random Program Selector
(Auto DRPSI
In the Play or Pause mode you can easily skip to any
track on the disc.

0 Self Program Search System (SPSS)
When you wish to listen to the present program
again from the beginning, or when you wish to skip
to the next, this convenient feature allows you
automatic program selection with one touch.

0 Manual Search
You can quickly listen through the disc and find the
selection you want to hear.

0 Index Search
By using the index search system, you can quickly
locate the passages for playback programming.

0 Repeat Playback
This function repetitively plays back all programs or
those selected in the random memory, or only those
parts you desire.

0 High-Speed Access
Access from track to track is all performed at high-
speed access, allowing faster and smoother opera-
tion.

0 Track Number. Index, and Playing Time
Indicators

0 Headphones Terminal with Level Control
