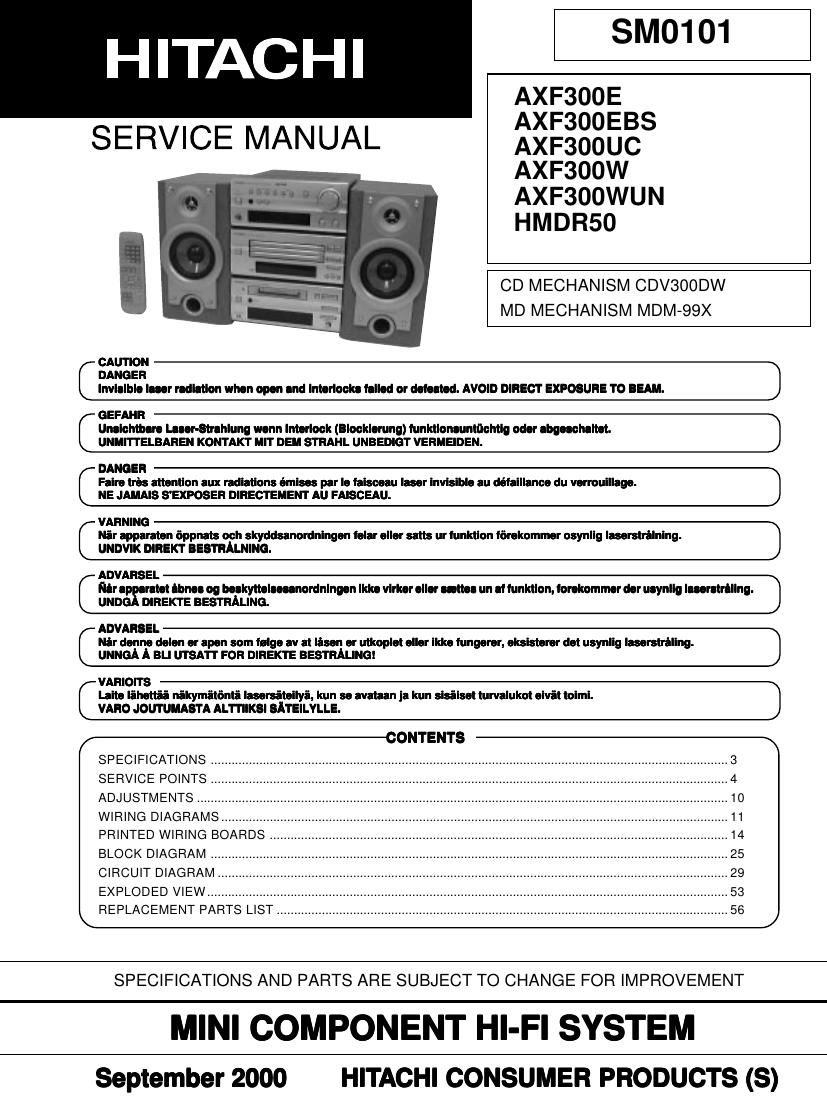

Hitachi AXF 300 E Service Manual
This is the 41 pages manual for Hitachi AXF 300 E Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Hitachi AXF 300 E Service Manual (Ocr-read)
Page 2
– 3 – AX-F300 Reception frequency band: (FM:87.5~108.0MHz(100kHz step) AM:520~1710kHz(10kHz step)) (FM:87.50~108.00MHz(50kHz step) MW:522~1611kHz(9kHz step) LW:153~281kHz(1kHz step)) (FM:87.50~108.00MHz(50kHz step) AM:522~1611kHz(9kHz step) 520~1710kHz(10kHz step)) (FM:76.00~108.00MHz(50kHz step) AM:522~1629kHz(9kHz step) 520~1710kHz(10kHz step)) Rated output power: 40 W + 40 W (6W/ohms, 1kHz, T.H.D. 10%) Audio input / output jacks: CD input jacks, TAPE input/output jacks, AUX input jacks, MD input/output jacks, PRE OUT (MONO) jack, headphones jack Power supply: E,EBS : AC 230 V, 50 Hz UC : AC 120 V, 60 Hz W,WUN : AC 110~127 V, 50/60 Hz AC 220~240 V, 50/60 Hz Power consumption: 74 W (ECO-ON mode : 0.8 W) Maximum external dimensions: 210 (W) ∞ 96.5 (H) ∞ 350 (D) mm (including feet, controls and terminals) Weight: 4.5 kg Sampling frequency: 44.1kHz Optical source: Semiconductor Power supply: E,EBS : AC 230 V, 50 Hz UC : AC 120 V, 60 Hz W,WUN : AC 110~127 V, 50/60 Hz AC 220~240 V, 50/60 Hz Power consumption: 12 W Maximum external dimensions: 210 (W) ∞ 96.5 (H) ∞ 340 (D) mm (including feet, controls and terminals) Weight: 3.2 kg System: 2 way BASS Reflex Speaker System Woofer: 10 cm ∞ 1 Tweeter: 5 cm ∞ 1 Impedance: 6 ohms Maximum external dimensions: 150 (W) ∞ 275 (H) ∞ 227 (D) mm Weight: 3.0 kg (1 speaker) System: Digital Quartz Clock Display Format: 12-hour cycle (UC DEST) 24-hour cycle (other DEST) Timer Accuracy: Within 60 seconds at monthly rate Remote control system: Infrared pulse Power supply: Two DC 1.5V R6P/AA batteries Maximum external dimensions: 54 (W) ∞ 27 (H) ∞ 172.5 (D) mm Weight: 145g (including batteries) Type: MiniDisc digital audio system Wow & flutter: Below measurable limits (±0.001% W. peak or less) Sampling frequency: 44.1 kHz Recording method: Magnetic modulation overwriting Light source: Semiconductor Laser Power supply: E,EBS : AC 230 V, 50 Hz UC : AC 120 V, 60 Hz W,WUN : AC 110~127 V, 50/60 Hz AC 220~240 V, 50/60 Hz Power consumption: 14 W Maximum external dimensions: 210 (width) ∞ 96.5 (height) ∞ 320 (depth) mm (including feet, controls and terminals) Weight: 2.6 kg Specifications are subject to change or performance improvement without notice.
