Extracted text from Heathkit IT 12 Manual (Ocr-read)

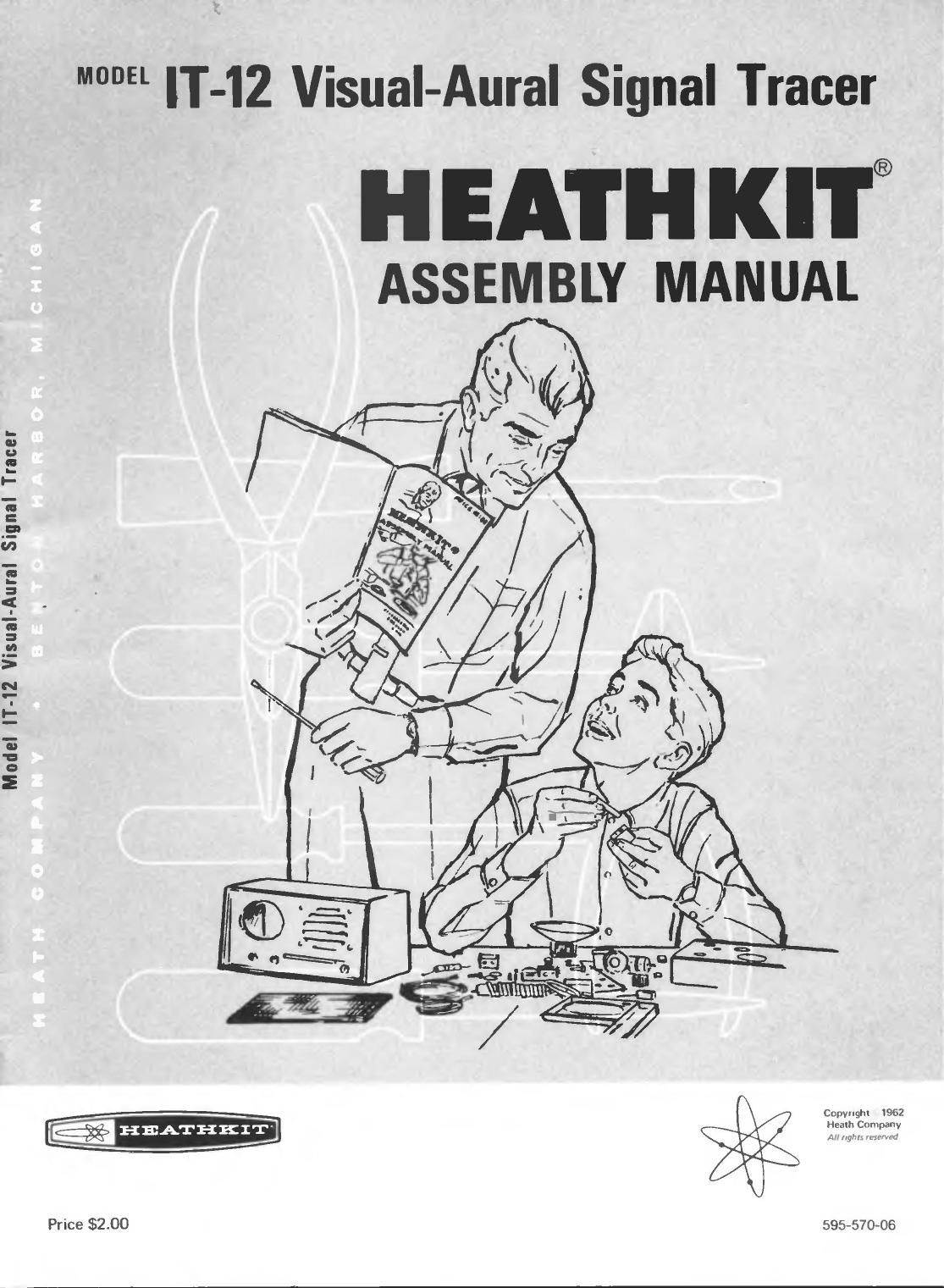

Page 1
Model -12 Visual~Aural Signal Tracer
m -12 Visual-Aural Signal Tracer
H EA'I'H KI'I'®
HEATHKIT
Price $2.00 595570-06
Page 2
ASSEMBLY AND OPERATION OF THE
HEATHKIT VlSUAL-AURAL SIGNAL TRACER
MODEL m2
SPECIFICATIONS
Power Supply .............................. Transformer operated.
Power Requirements ....................... 117 volts AC, 50-60 cps, 25 watts.
Tube Complement .......................... Vl- 12AX7 high gain dual triode, input cascade
amplifier.
V2 - 12CA5 beam power output tube.
V3 - 1629 electron beam visual indicator.
Speaker ................................... 8 1/2" permanent magnet.
Probe and Test Leads ...................... 4' input lead for RF and audio w/swilchin probe
body.
Two 3 panel test leads with alligator clips.
Dimensions ........................... . . .. 4 1/2" wide x 7 1/2" high x 4" deep.
Net Weight ................................ 4 lbs.
