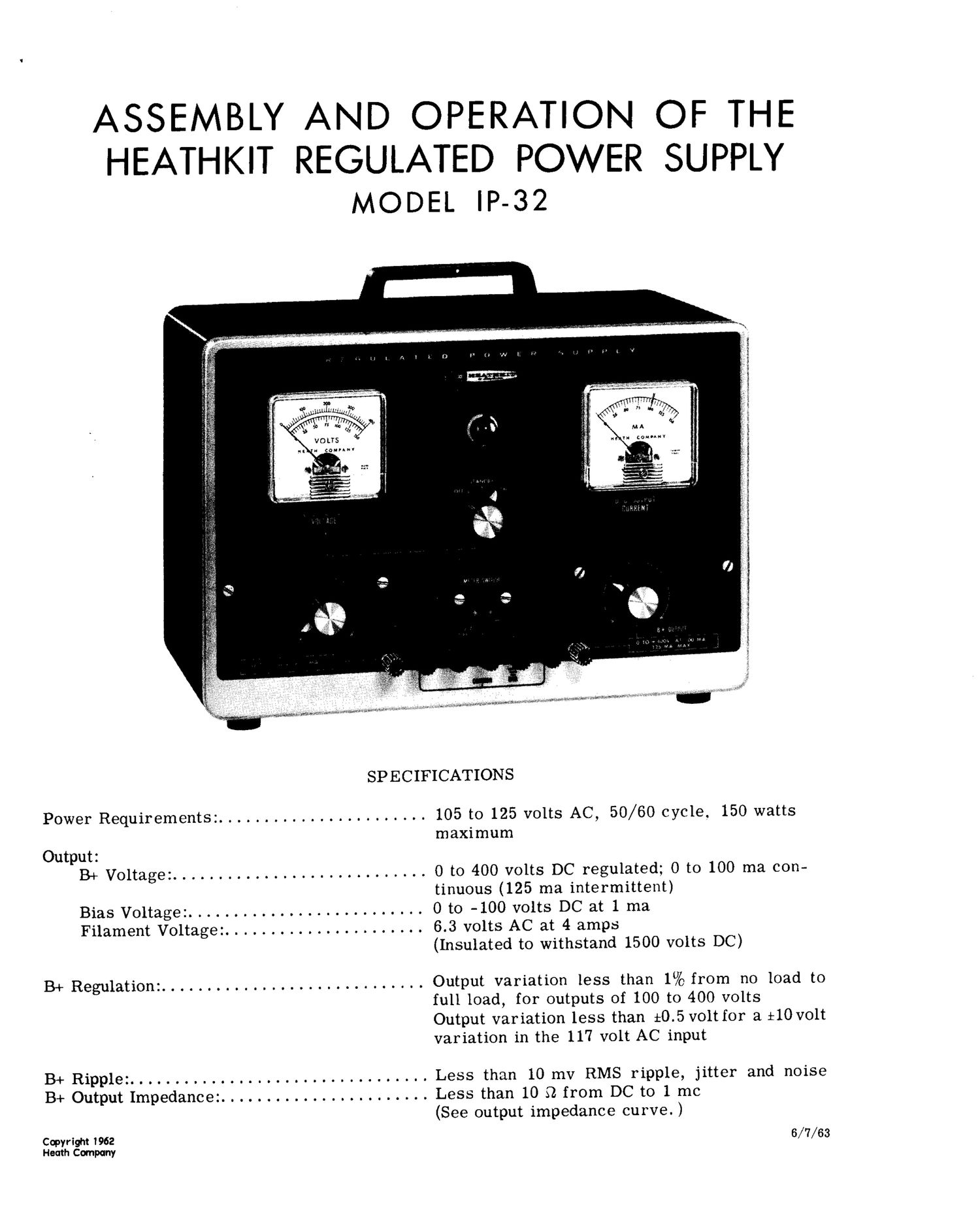

ASSEMBLY AND OPERATION OF THE
HEATHKIT REGULATED POWER SUPPLY
MODEL lP-32
SPECIFICATIONS
Power Requirements:. . .. ........ ........... 105 to 125 volts AC, 50/60 cycle. 150 watts
maximum
Output:
B+ Voltage: ...... . ............ . ........ 0 to 400 volts DC regulated; 0 to 100 ma con
tinuous (125 ma intermittent)
BiasVoltage:............ ..... Oto -100volts DC at 1ma
FilamentVoltage:...................... 6.3 voltsAC at 4amps
(Insulated to withstand 1500 volts DC)
B+ Regulation:. . . . . . . . . . . . .. ..... .... . . . . . . Output variation less than 1% from no load to
full load, for outputs of 100 to 400 volts
Output variation less than $0.5 volt for a :10 volt
variation in the 117 volt AC input
B+R1pple Less than 10 mv RMS ripple, jitter and noise
B+ OutputImpedancez....................... Less than 10§2from DCto lmc
(See output impedance curve. )
Copyright 1962 6/7/63
Heath Company
