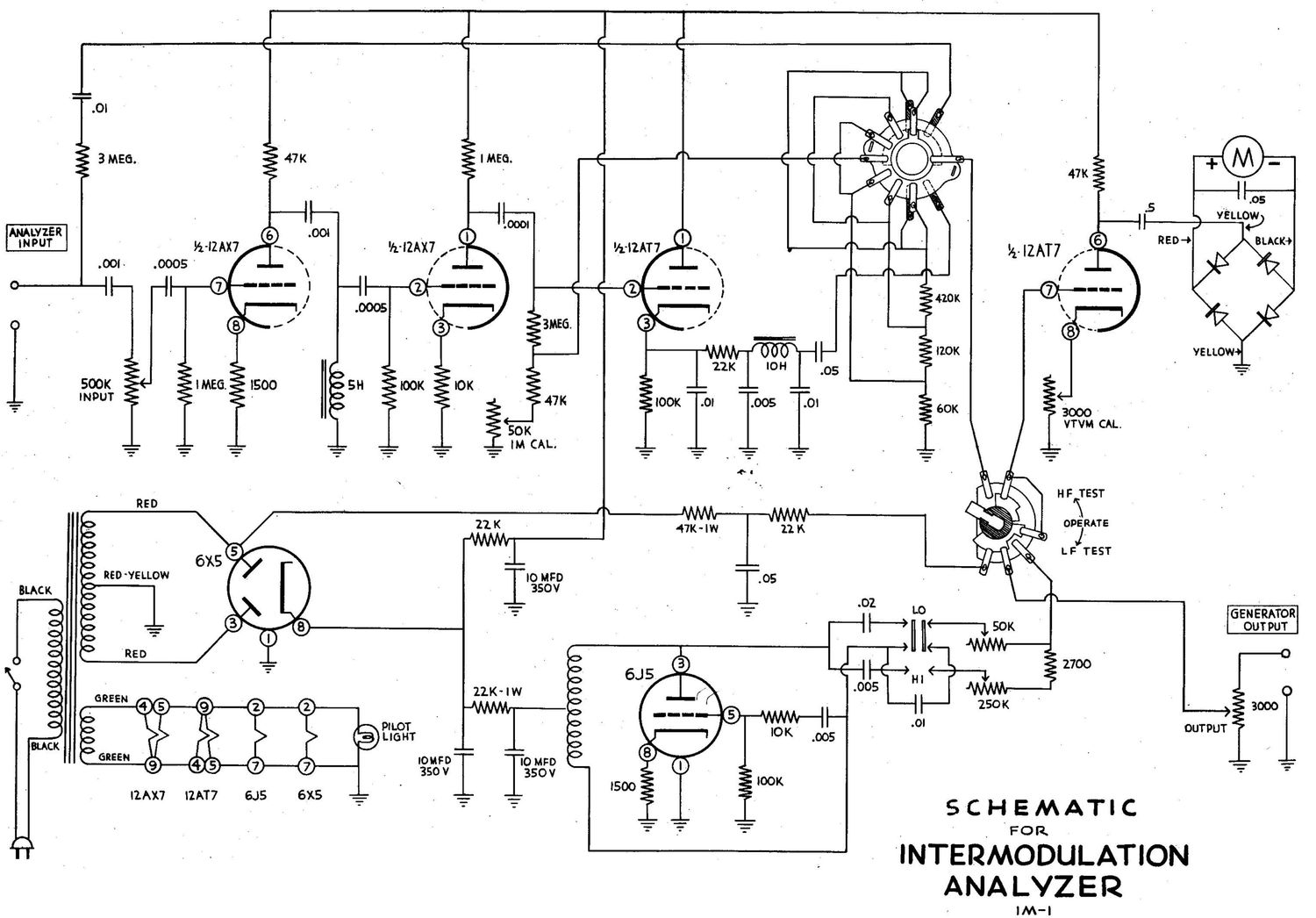

Heathkit IM 1 Schematic
This is the 2 pages manual for Heathkit IM 1 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Heathkit IM 1 Schematic (Ocr-read)
Page 2
HEATHKIT INTERMODULATION ANALYZER
MODEL
IM-l
TEC HNICAL S PECIFICATIONS
Power Requirements: . . . . . . . . . . .
TubeComplement:.............
AnalyzerRanges:..............
Generator Low Frequency: .
o
o
u
o
o
Generator High Frequencies: . . .....
LF/HFRatio:................
Generator Output Impedance: . . . . . .
Voltmeter Ranges: . . . . . ........
Dimensions:
ShippingWeight:
105-125V AC, 50-60 Cycles, 30 Watts
(115-230V on export model)
1 12AX7 Cascade Amplifier
1 12AT7 Detector and Meter Amplifier
1 6J5 HF Oscillator
1 6X5 Rectifier
Full Scale 30% - 10% - 3%
60 cycles (Line FreQuency)
Approx. 3000 and 7000 cycles
4 to 1 voltage normal-«can be set
to any combination.
3000 ohms
Full Scale 30 Volts - 10 Volts - 3 Volts
7" high x 15" wide x 8" deep
10 lbs.
