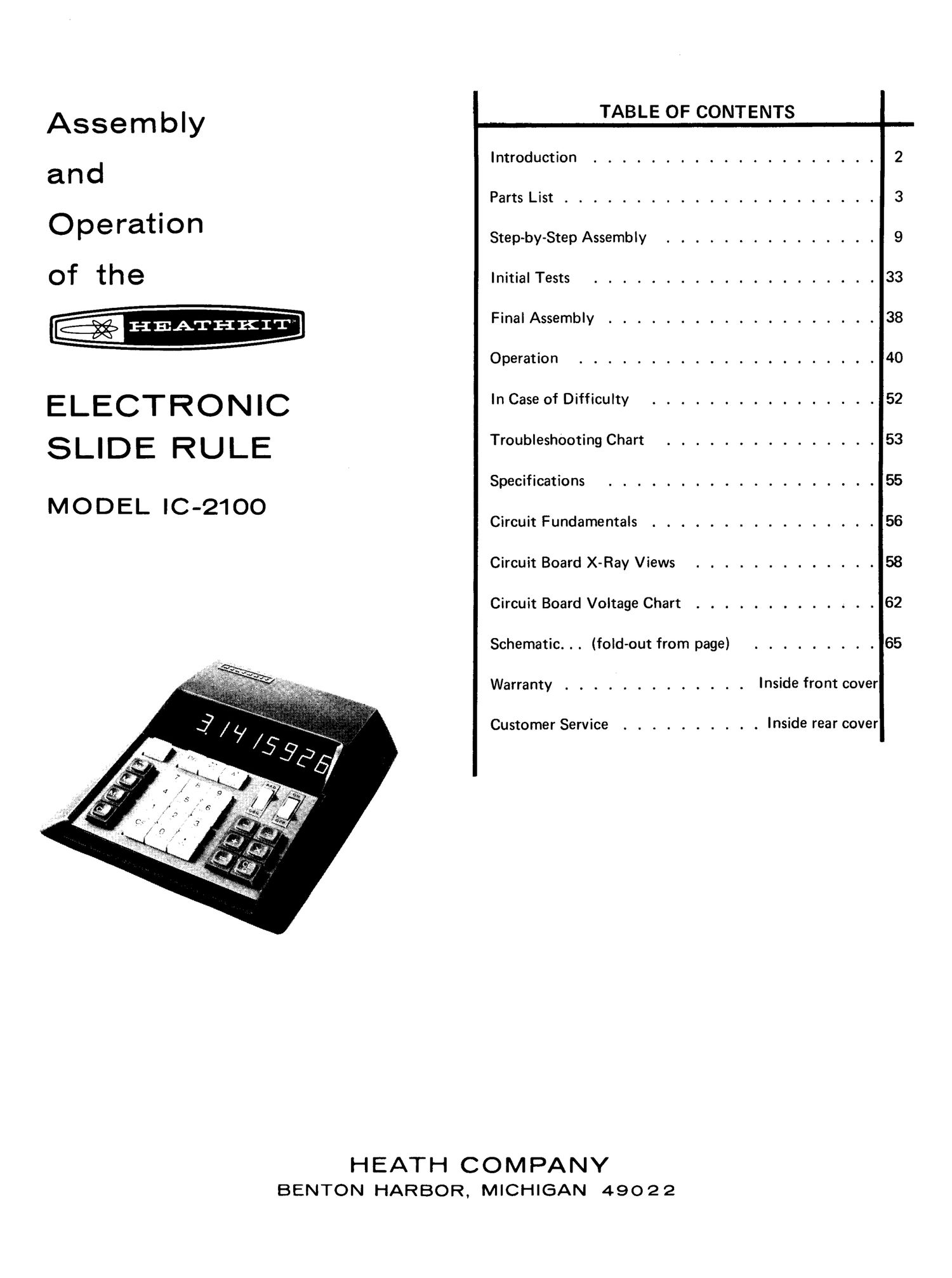

Page 1
TABLE OF CONTENTS
Ass e m b ly
an d Introduction . ................... 2
PartsList ....... ...... 3
O p e rat. 0 n Step-by-Step Assembly . .............. 9
Of th 9 Initial Tests .................... 33
Final Assembly ................... 38
Operation . . . .................. 40
ELECTRONIC In Case of Difficulty . . . ............. 52
S L' D E R U L E Troubleshooting Chart ............... 53
- Specifications ................... 55
MODEL IC-2l 00
Circuit Fundamentals ................ 56
Circuit Board X-Ray Views . . . .......... 58
Circuit Board Voltage Chart . . . . . . . . . . .- . . 62
Schematic. . . (fold-out from page) ......... 65
Warranty . . . .I ......... Inside front cover
Customer Service .......... Inside rear cover
HEATH COMPANY
BENTON HARBOR, MICHIGAN 49022
