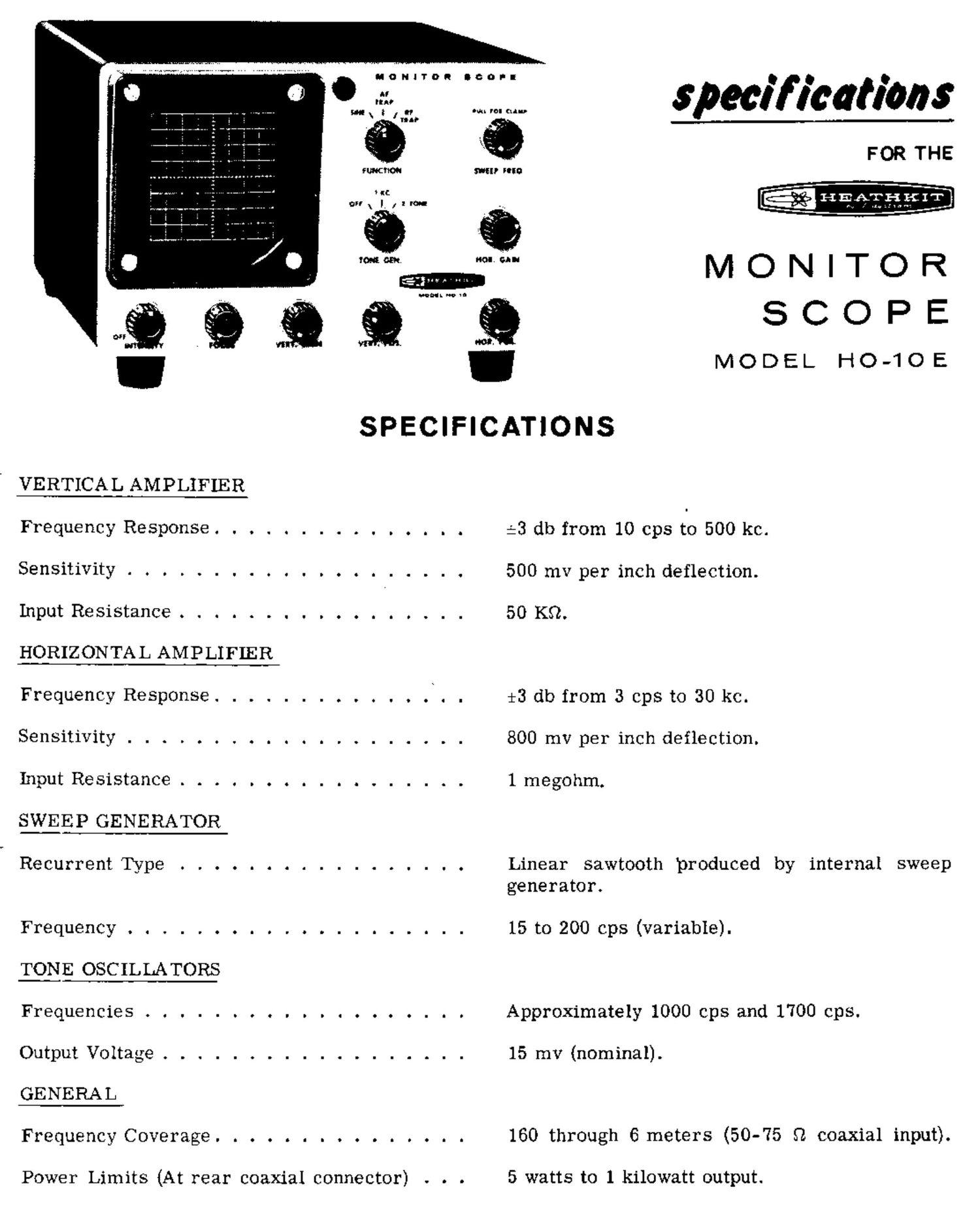

Page 1
MONITOR
O ..
PIA.
w\ t I"
5"
mud?
(If.
specification:
FOR THE
Ml? "IO
"°"°" MONITOR
SCOPE
MODEL HO-1O E
SPECIFICATIONS
VERTICAL AMPLIFIER
Frequency Response ...............
Sensitivity ....................
Input Resistance .................
HORIZONTA L AMP LIFIER
Frequency ReSponse ............. . .
Sensitivity ....................
Input Resistance .................
SWEEP GENERATOR
Recurrent Type .................
Frequency ....................
TONE OSCILLATORS
Frequencies ...................
Output Voltage ..................
GENERAL
Frequency Coverage ...............
Power Limits (At rear coaxial connector)
:3 db from 10 cps to 500 kc.
500 mv per inch deflection.
50 K9.
t3 db from 3 cps to 30 kc.
800 my per inch deflection.
1 megohm.
Linear sawtooth produced by internal sweep
generator.
15 to 200 cps (variable).
Approximately 1000 cps and 1700 cps.
15 mm (nominal).
160 through 6 meters (50-75 5'2 coaxial input).
5 watts to l kilowatt output.
