Heathkit HO 10 Manual
This is the 34 pages manual for Heathkit HO 10 Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Heathkit HO 10 Manual (Ocr-read)

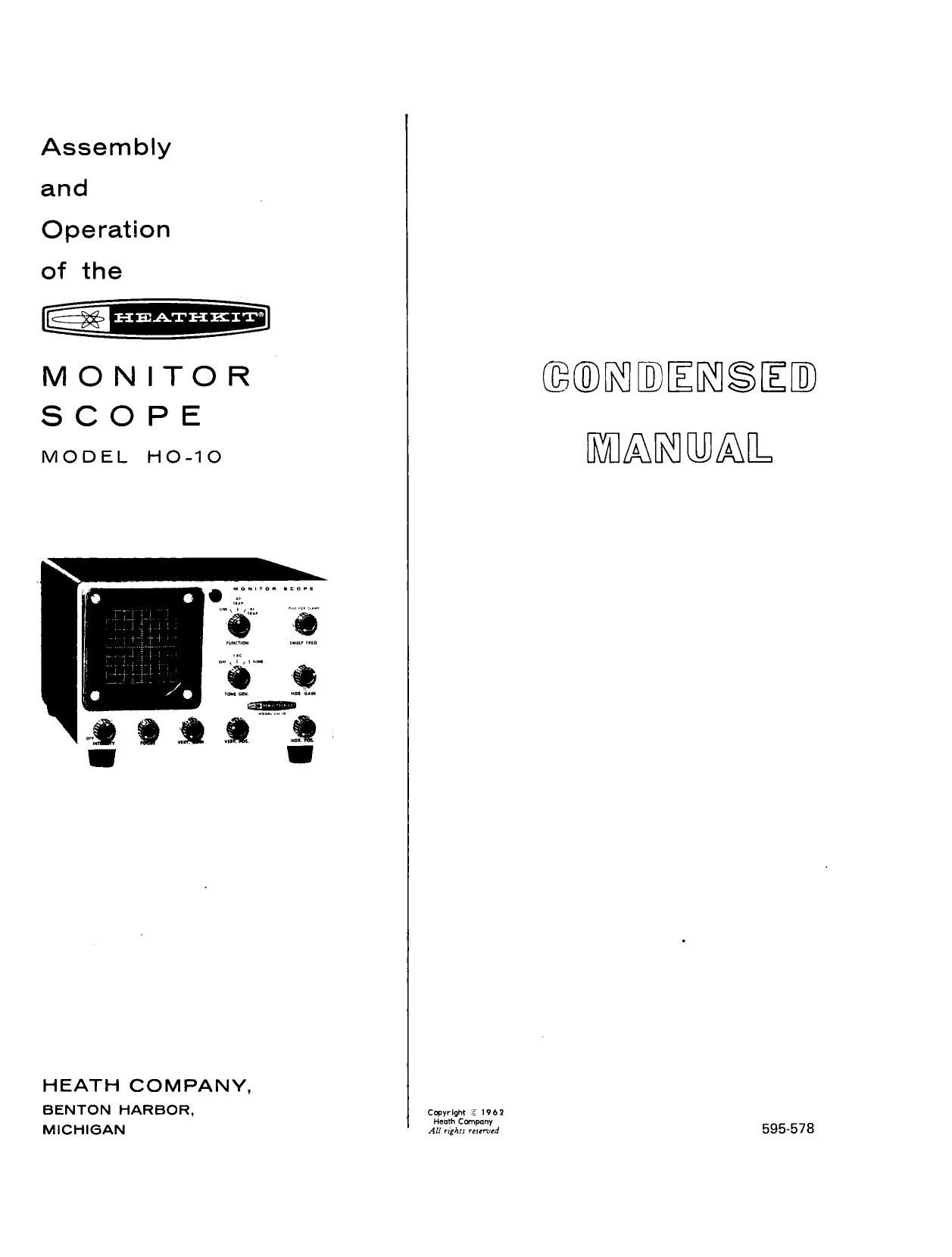

Page 1
Assembly
and
Operation
of the
HEATI-IKIT"
MONITOR @@N@ENSE®
SCOPE
MODEL HO-IO MANEwAL
HEATH COMPANY,
BENTON HARBOR, copyriw $1952
MICHIGAN £f¥§fif3€f$¢ 595-578
Page 2
Page 2
ngx-IEATHKIT
SPECIFICATIONS
VERTICAL AMPLIFIER
Frequency Response ..... . .
Sensitivity. . . .
Input Resistance.
HORIZONTAL AMPLIFIER
Frequency Response. . .
Sensitivity........... .......
Input Resistance, . . . . .
SWEEP GENERATOR
Recurrent Type. . . . . . . . ..............
Frequency. . ..............
TONE OSCILLATORS
Frequencies. . .
cote-0.00... ..........
Output Voltage. . . . .
-.-.~---...¢ ......
GENERAL
Frequency Coverage. . . . . .
--.---..-....
Power Limits (At rear coaxial connector). . . .
Tube And Diode Complement. . . . . . . .
...--
*3 db from 10 cps to 500 kc.
500 mv per inch deflection.
50 KS].
:3 db from 3 cps to 30 kc.
800 mv per inch deflection.
1 megohm.
Linear sawtooth produced by internal sweep
generator.
15 to 200 cps (variable).
Approximately 1000 cps and 1700 cps.
15 mv (nominal).
160 through 6 meters (50-75 9 coaxial input).
5 watts to 1 kilowatt output.
1- 3RP1 CRT, medium persistence, green
trace.
- GBNS Clamper, low level RF detector.
- 6C10 Sweep generator, horizontal amplifier.
- 6.111 Twin phase shift tone generator.
12AU7 Vertical amplifier.
- 1V2 High voltage rectifier,
- Silicon diodes, B+ rectifiers.
thb-HHI-l
I
