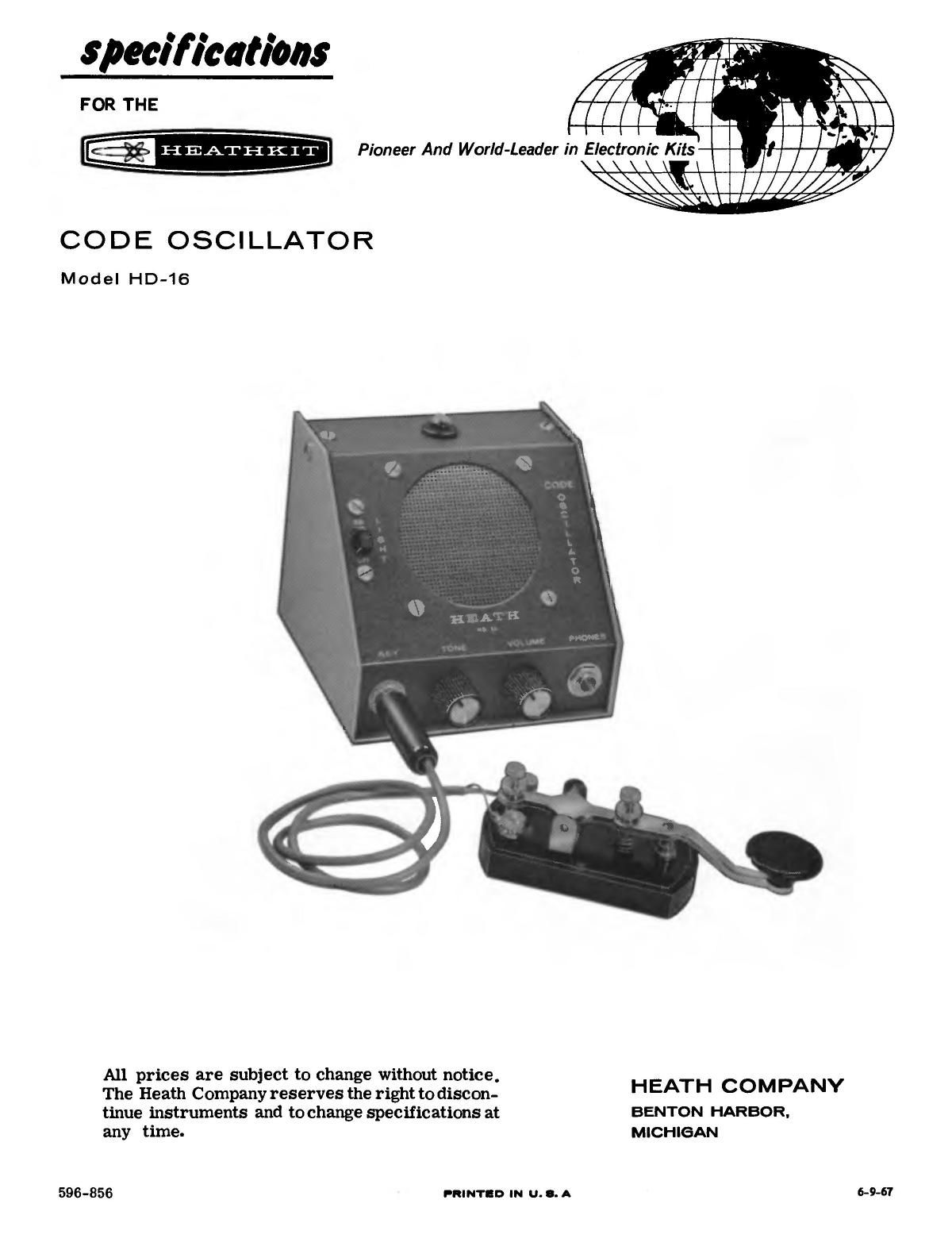

Page 1
specifications
FOR THE
H E AT H K 1 T Pioneer And World-Leader in Electronic Kits
CODE OSCILLATOR
Model HD-16
All prices are subject to change without notice.
The Heath Company reserves the right to discon- HEATH COMPANY
tinue instruments and mchange specifications at BENTON HARBOR.
any time. MICHIGAN
6-9-61
596-856 Pam-ran m u. I. A
Page 2
SPECIFICATIONS
ModesOfOperatiom..................
Tone Frequency.....................
Contro15...........................
Front Panel Connections. . . . . . . . . . . . . . . .
Speaker...........................
Transistor.........................
Batteries Required (not supplied). . . . . . . . . .
Color............................
Dimensions.........................
Netweight.........................
Audible tone 1mm speaker or headphones.
Visualindication from lamp.
500 Hz nominal center frequency (adjustable).
Volume control.
Tone control.
Light switch (OH-0n).
Key jack (key furnished).
Phones jack.
130 ohms, permanent magnet type.
4JX5E6'70, GE unijunction.
1 - C cell (1.5 volt).
2 - #9-volt transistor batteries. (NEDA #1604.
or equivalent).
Dark green mdpale gray. Wrinkle enamel finish.
4-5/8" wide x 4-1/4" high x 4-3/4" deep (phone
plug not Inserted).
1-1/3 lbs.
w
The Heath Company reserves the right to discon-
tinue instruments and to change specifications at
any time without incurring any obligation to in-
4JX5E670
VIEWED
FROM BOTTOM
I00
corporate new features in instruments previous-
ly sold.
LIGHT
I|F-|IVI'-o--o-.bv| KEY
90
g. 22
1
9 PHONES
VOLUME SPEAKER
SCHEMATIC or THE
HEATHKIT®
com: OSCILLATOR
MODEL HD-16
NOTES:
I. ALL RESISTORS ARE 1/2 WATT.
2. ALL RESISTOR VALUES ARE IN OHMS (K=IOOOI.
3. ALL CAPACITOR VALUES ARE IN old.
