Heathkit GD 1530 Manual

Page 1

H E ATH
l 15 HEATH COMPANY , BENTON HARBOR. MICHIGAN 49022

TLX 72-9421

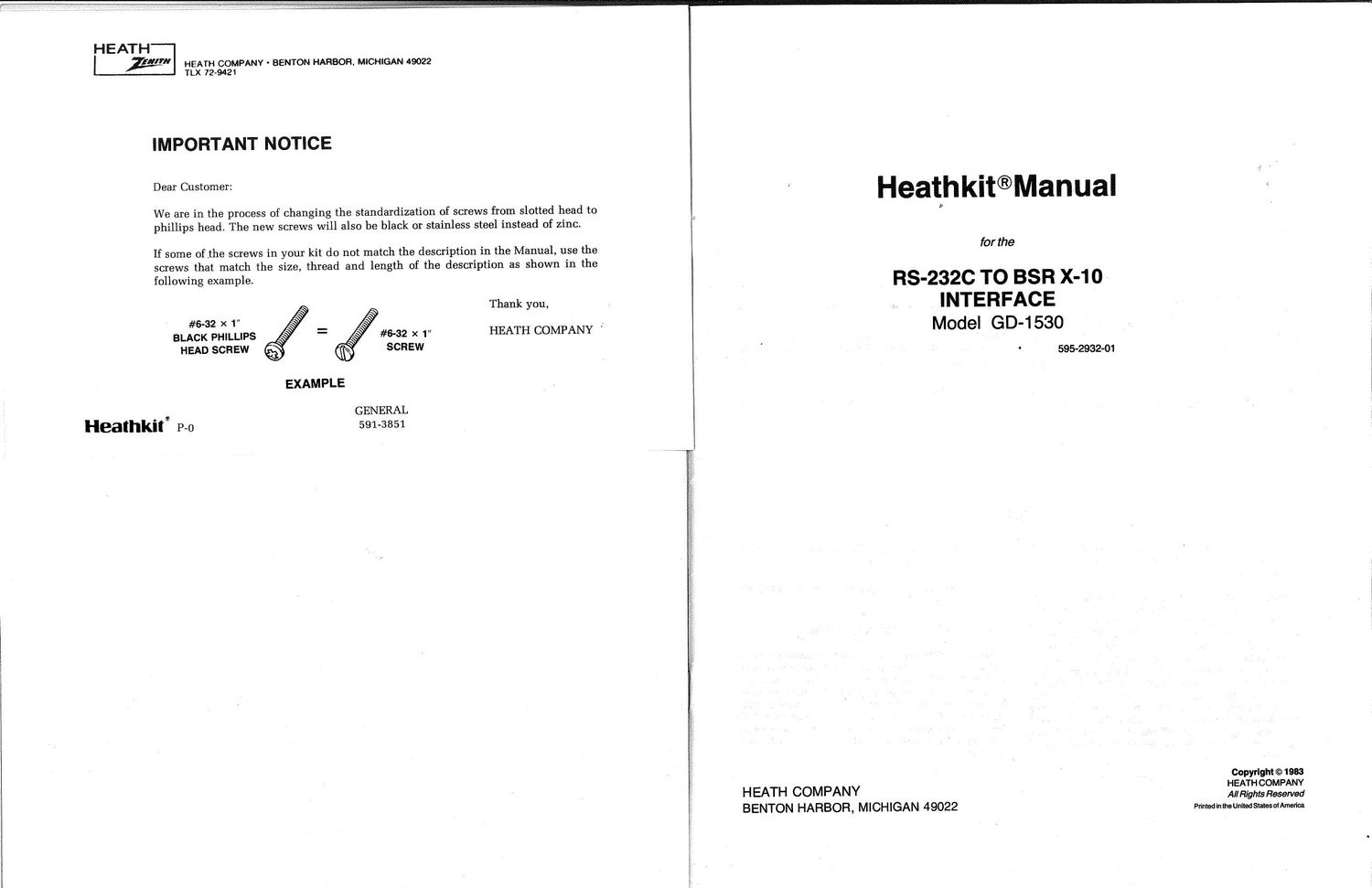

IMPORTANT NOTICE

Dear Customer:

We are in the process of changing the standardization of screws from slotted head to
phillips headt The new screws will also be black or stainless steel instead of zinc.

If some of the screws in your kit do not match the description in the Manual, use the
screws that match the size, thread and length of the description as shown in the
following example.

Thank you,
#6-32 x 1" _ 1
BLACK PHILLIPS _ #6-32 x 1" HEATH COMPANY
HEAD SCREW SCREW
EXAMPLE
_ z, GENERAL
Heathklt P-o 591-3351

Heatbhkit®Manvual

for the

RS-232C TO BSR X-10
INTERFACE
Model GD-153O

5952932-01

HEATH COMPANY
BENTON HARBOR, MICHIGAN 49022

Copyrlgm © 1983

HEATH COMPANY

All Rights Reserved
Frintedlnlhe Uniled smahmAmenca

Page 2

Pagez
. ®
Heathklt
TABLE OF CONTENTS
Introduction ............................... 3 Final Assembly ........................... 27
Assembly Notes ........................... 4 Operation ................................ 23
Tools ................................... 4
Assembly ............................... 4 In Case of Difficulty ...................... 28
Soldering ............................... 5 Troubleshooting Chart ................... 29
Parts ................................... 6
Specifications ............................ 31
Parts List ................................. 7
Circuit Description ........................ 32
Step-By-Step Assembly ............ . ........ 9 , , ,- Q ,
Circuit Board Assembly .......... ........ , '9 Circuit card X-Riiy View ................. 33
Circuit Board Checkout ................. ,. 1 , " ._ . ,_ ._ . .
Cabinet Assembly ...................... _ 19 Semiconductor Identification Chart .......... 34
Initial Test ............................... 23 Appendix - -_ ------------------------------ 37
Resistance Checks ...... 2 ................ 23 Programming Command Syntax ~~~~~~~~~~~ 37
Voltage Checks ......................... 23 Program Examples -------------------- 3'3
Calibration ............................... 24 Schematic Diagram
Alignment Verification Without Instruments . 25 ---------------- [1111131611011 Booklet, Page 5]
Alignment With Instruments .............. 26

WARNING

This equipment has been verified to comply with the
limits for a Class B computing device, pursuant to Subpart
Iof part 15 of FCC Rules.

This equipment generates and uses radio frequency energy
for its operation and if not installed and used properly,
that is, in strict accordance with the instruction manual,
may cause interference to radio and television reception.
It has been type tested and found to comply with the RF
emission limits for a Class B computing device which is
intended to provide reasonable protection against such in-
terference in a residential installation. However, thereis

no guarantee that interference will not occur in a particu- '

lar installation. If this equipment does cause interference

to radio or television reception, which can be determined ~

by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of
the following measures: '

If additional help is needed, consult th

- Move the equipment away from the receiver
being interfered with.

- Relocate the equipment with respect to the
receiver.

, - Reorient the receiving antenna,

assistanCB from the manufactu
mation may be found on the in
ual or on an insert sheet su
The user may also find th
How to Identify and Re '
lems. This booklet is av
Printing Office, Was It /
000-00345-4. *

TV/Interference Prob-
m the U.S. Government
0401, - Stock No. 004'-

Heathkitg

ler or ask tor-2,,

Pages

INTRODUCTION

The Heathkit Model GD-1530 is a computer Interface
device which allows you to operate your BSR X-IO
modules from a computer having an RS-ZSZC out-
put.

/

A
With the RSZ3Z/BSR Interface, you can write a pro-
gram on your computer to control various appli-
ances, lights, and other devices controlled by mud-
ules in your BSR X-10 Control System.

Your computer system must be equipped with an
RS-232C Serial Interface Port [no protocol required
or available) capable of a baud rate between 110
baud and 2400 baud to work correctly with the GD-
1530 Interface. "

Programming syntax and simple program examples
are provided in the Appendix at the back of this
Manual. You may develop more sophisticated pro-
grams for your own applications, or you may find
programs available in various users groups.

WARNING

Federal Communications Commission requirements prescribe verification of computing devices in
Part 15 Subpart I of the rules and regulations. This computing device will meet these requirements
when constructed in strict accordance with the instructions in this manual, using only components
and materials supplied with the kit or the exact equivalent thereof.

Page 4

Page 6

PARTS

Resistors are identified in Parts Lists and steps by
their resistance value in 0 (ohms), k0 [kilohms], or
M!) (megohms). They are usually identified by a color
code and four or five color bands, where each color
represents a number. These colors (except for the last
band, which indicates a resistors tolerance] will be
given in the steps in their proper order. Therefore, the
following color code is given for information only.
NOTE: Occasionally, a precision or power resis-
tor may have the value stamped on it.

Heathkitg

M OH 1.1331
1 /4-WATT
. 35- 1 OR m
1 /2-WATT
1 -WAl_l 2-WATT
Multiplier

5-BAND HESISTORS
(:1%)

4-BAND RESISTORS

BANDS: 1 2 3

/ /Tn|emnce

l Note Wlde
space

(i10°/o )
1 0 amps:
5/0 2 Multiplier mm"

Band 1 Band 2 Band 3 (if used) . . Resistance

ist Digit 2nd Digit aid Digit MUIhpher Tolerance
Color Digit Color Digit Color Digit Color Multiplier Color Toleranc
Black 0 Black 0 Black 0 Black 1 Silver 110%
Brown 1 Brown 1 Brown 1 Brown 10 Gold I 5%
Red 2 Fled 2 Red 2 Red 100 Brown 1 1%
Orange 3 Orange 3 Orange 3 Orange 1,000
Yellow 4 Yellow 4 Yellow 4 Yellow 10.000
Green 5 Green 5 Green 5 Green 100,000
Blue 6 Blue 6 Blue 6 Blue 1,000,000-
Violet 7 Violet 7 Violet 7 Silver 001
Gray 8 Gray 8 Gray 8 Gold 0.1
White 9 White 9 White 9

l

Capacitors will be called out by their capacitance
value in uF (microfarads) or pF (picofarads) and type:
ceramic, Mylar", electrolytic, etc. Some capacitors
may have their value printed in the following man-
ner:

EXAMPLES :

1511K = 15 x 10 = 150 pF
759 = 75 x01 = 7.5 pF

NOTE: The letter R" may be used at times to signify a

First d'Q" °_f decimal point: as in: 2R2 = 2.2 (pF or [.LF).
capacttors value: 1 1 5 1 K
Second digit of MULTIPLIEH TOLERANCE OF CAPACITOR
capacitors value: 5 FOR THE MULTIPLY 10 pF on LETTER OVER
Multiplier: Multiply the NUMBER: BY: LESS , 0 9
first & second digits by 0 1 :01 pF B
the proper value from the 1 10 20.25 pF 0-
Multiplier Chart. 2 100 :05 pF 0
To find the tolerance of i 1013:: :g: S: ' F LL:
the capacutor, look up 5 100 000 13%
this letter in the Tolerance ' _
columns. ' J I 35%
a 0.01 K :10%
9 0.1 ' , M :20%

DuPont Registered Trademark

Heathkif

Page 7

PARTS LIST

Unpack the parts and check each part against the fol-
lowing list. The key numbers correspond to the num-
bers on the Parts Pictorial (Illustration Booklet, Page
1]. Any part that is packaged in an individual en-
velope with a part number on it should be placed back
in the envelope after you identify it imiil it is called
for in a step. Do not discard any packing materials
until all the parts are accounted for.

Some parts are marked with a 171-" or 172- pack-
aging number. These numbers are used for packaging
purposes only and do not appear in the Manual Parts
List. &

To order a replacement part, always include the
PART NUMBER. Use the Parts Order Form furnished
with the kit. If one is not available, see Replacement
Parts inside the rear cover. For prices, refer to the
separate Heath Parts Price List.

KEY H EATH QTY. DESCRIPTION CIRCUIT KEY HEATH QTY. DESCRIPTION CIRCUIT
No. Part No. Comp. No. No. Part No. Comp. No.
I .
RESISTORS Capacitors (Contd)
All resistors are 1/4-wait, 5% (fourth band gold) unless stated Electrolytic
otherwise.
B6 25-900 1 1 MF 07

A1 5-150-12 1 15 o (brn-grn-blk) R13 B7 25-872 1 220 uF 05
A2 6-220 1 22 n, 1/2-wati(red-red-blk) R1 B7 25-875 2 1000 F 02, 06
A1 6-331-12 1 330 (I (org-org-brn) R1 1
A1 6-821-12 1 820 Q (gry-red-brn) R14
A1 6-102-12 1 1000 n (brn-bIk-red) R3
A1 6-182-12 1 18000. (brn-gry-red) R7
A1 e222-12 1 2200 n (red-red-red) n10 Polypropolene
A1 6-392-12 2 39000 (org-wht-red) R5, R8
A1 6512-12 2 5100 c (grn-brn-rsd) F14, R12 BB 27-60 1 22 F C13
A1 6-103-12 1 10 kc (brn-blk-org) R6 39 27-90 1 2.2 F Ci
A1 6453-12 1 - 15m(bm-grn-org) H15

- - kt) - - 1 H2
A1 6 334 12 1 330 (org org ye) Mylar
CAPACITORS B10 27-10 1 .047 pF c3
Mica DIODES
B1 20-173 2 20 pF 03, C9 (:1 56-26 1 1N191 (brn-wht-brn) 05
132 20-122 1 1000 pF C11 01 5765 6 1N4002 _ D1, 02, 03'

D4, D7, D8
- C1 56-84 2 1N4148 D6, D9
ceramlc C1 56-605 1 1N4746 D11
Ba 21 -164 1 1500 pF (.0015 HP) 014 ,
B4 21 -72 1 .005 uF C16
B5 21-192 4 .1 p.F(104 M) 04, C10,
C1 2, Ci 5

* Safety critical component. Replace only with the exact Heath Com-
pany replacement part.
