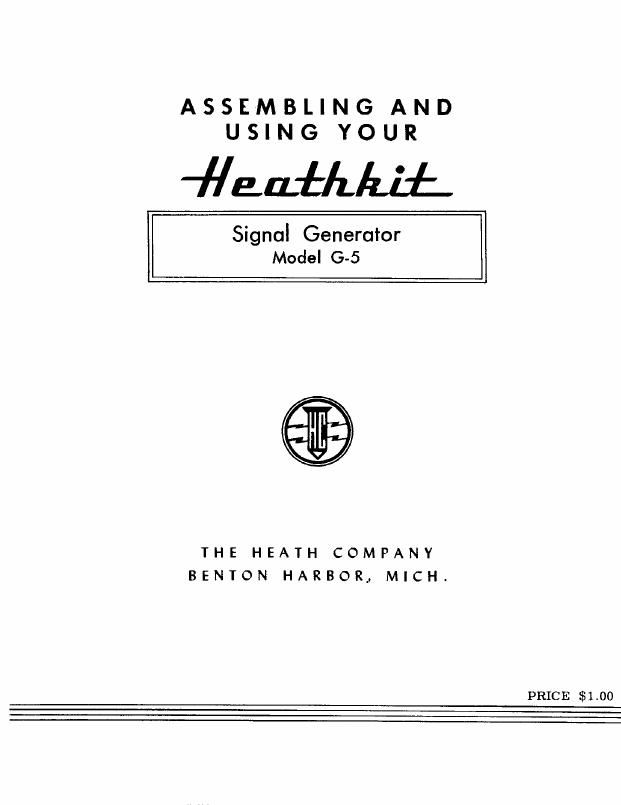

Page 1
ASSEMBLING AND
USING YOUR
Wadi/(Juli
Signal Generator
Model G-5
®
THE HEAIH COMPANY
BENTON HARBOR, MICH.
PRICE $1.00
Page 2
Assembly and Operation
of Heathkit Signal Generator
MODH 06
SPECIFICATIONS
FREQUENCY RANGE
Band A _________________________________ 150 Kc. to 450 Kc .................
Band B _________________________________ 450 Kc. to 1300 Kc .................
-1.3 Me, to 4 Mo ..................
--4 Mo. to 12 Mc. .................
-~l2 Me. to 34 Mc ..................
Band C-
Band Dr-
Calibrated Harmonics - -36 Me. to 102 MC .................
RADIO FREQUENCY OUTPUT - In excess of 100,000 microvolts .........
MODULATION FREQUENCY - Approximately 400 cycles ............
AUDIO OUTPUT - 2 to 3 Volts ....................
AUDIO FREQUENCY INPUT- - Low Impedance ..................
TUBES
GSN'? Twin Triode - RF Oscillator and Audio Amplifier .......
6X5 - Power Rectifier -----------------
POWER REQUIREMENTS - 105-125V. 50/60 cycles .............
