Heathkit EUW 27 Schematic
This is the 2 pages manual for Heathkit EUW 27 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Heathkit EUW 27 Schematic (Ocr-read)
Page 1
Page 2
H EATH

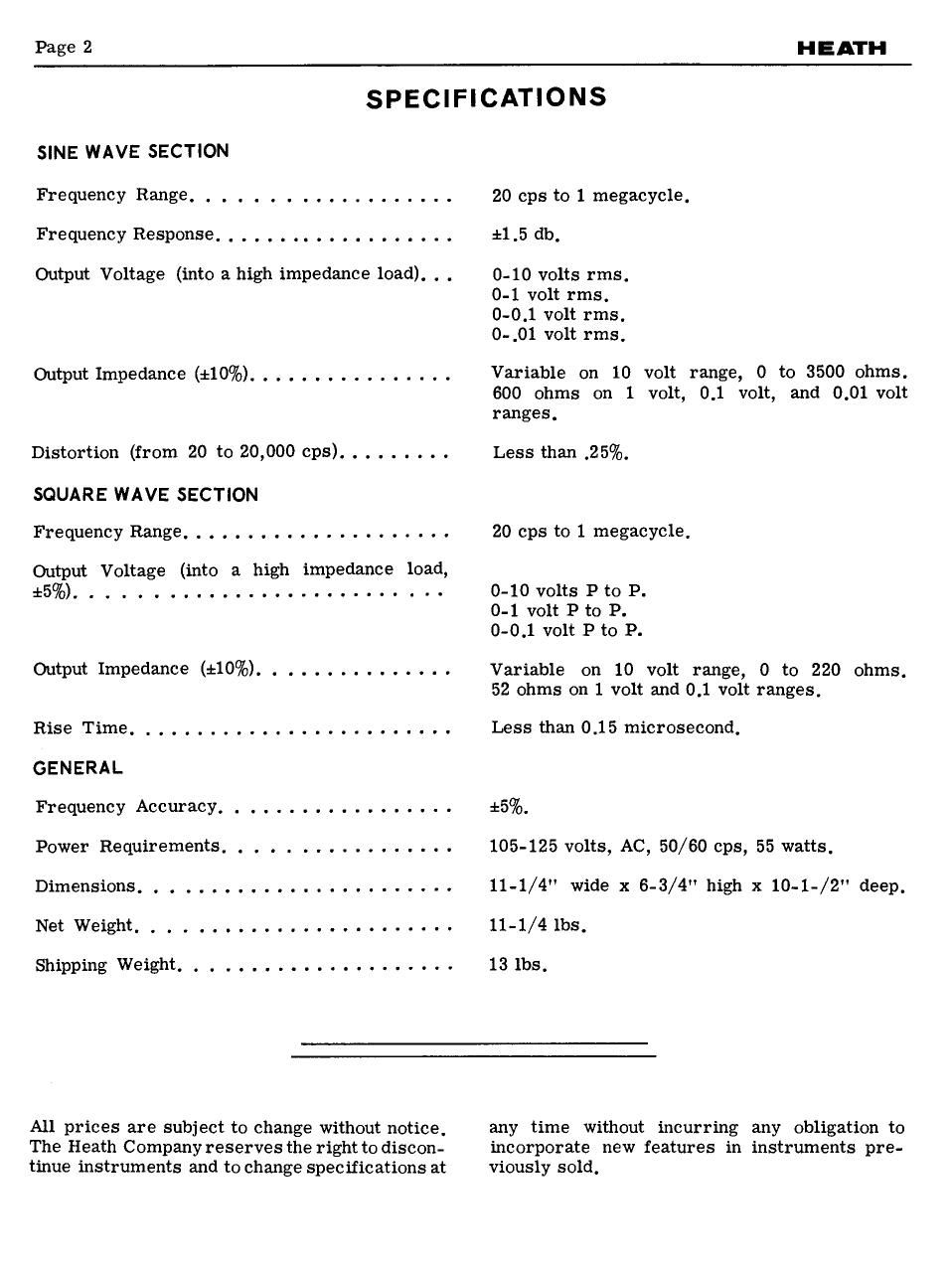

SPECIFICATIONS
SINE WAVE SECTION
FrequenCyRange. . . . . . .
Frequency Response ...................
Output Voltage (into a high impedance load), . _
Output Impedance (210%) ................
Distortion (from 20 to 20,000 cps) ..... . . . .
SQUARE WAVE SECTION
Frequency Range. . . ..................
Output Voltage (into a high impedance load,
t5%). . .
Output Impedance (i10%) ...............
Rise Time .........................
GENERAL
Frequency AccuraCy. . ................
Power Requirements. . . . .
Dimensions ........................
Net Weight ...... . .................
Shipping Weight .....................
All prices are subject to change without notice.
The Heath Company reserves the right to discon-
tinue instruments and to change specifications at
20 cps to l megacycle.
$1.5 db.
0-10 volts rms.
0-1 volt rms,
0-0.1 volt rms.
0~ .01 volt rms.
Variable on 10 volt range, 0 to 3500 ohms.
600 ohms on 1 volt 0.1 volt, and 0,01 volt
ranges.
Less than 25%.
20 cps to 1 megacycle.
0-10 volts P to P.
[3-] volt P to P.
0-0.1 volt P to P.
Variable on 10 volt range, 0 to 220 ohms,
52 ohms on 1 volt and 0,1 volt ranges,
Less than 0.15 microsecond.
$596.
105-125 volts, AC, 50/60 cps, 55 watts,
l1-1/4 wide x 6-3/4" high x 10-1-/2" deep.
11-1/4 lbs,
13 lbs.
any time without incurring any obligation to
incorporate new features in instruments pre-
viously sold.
