Extracted text from Heathkit EUW 16 Schematic (Ocr-read)
Page 1

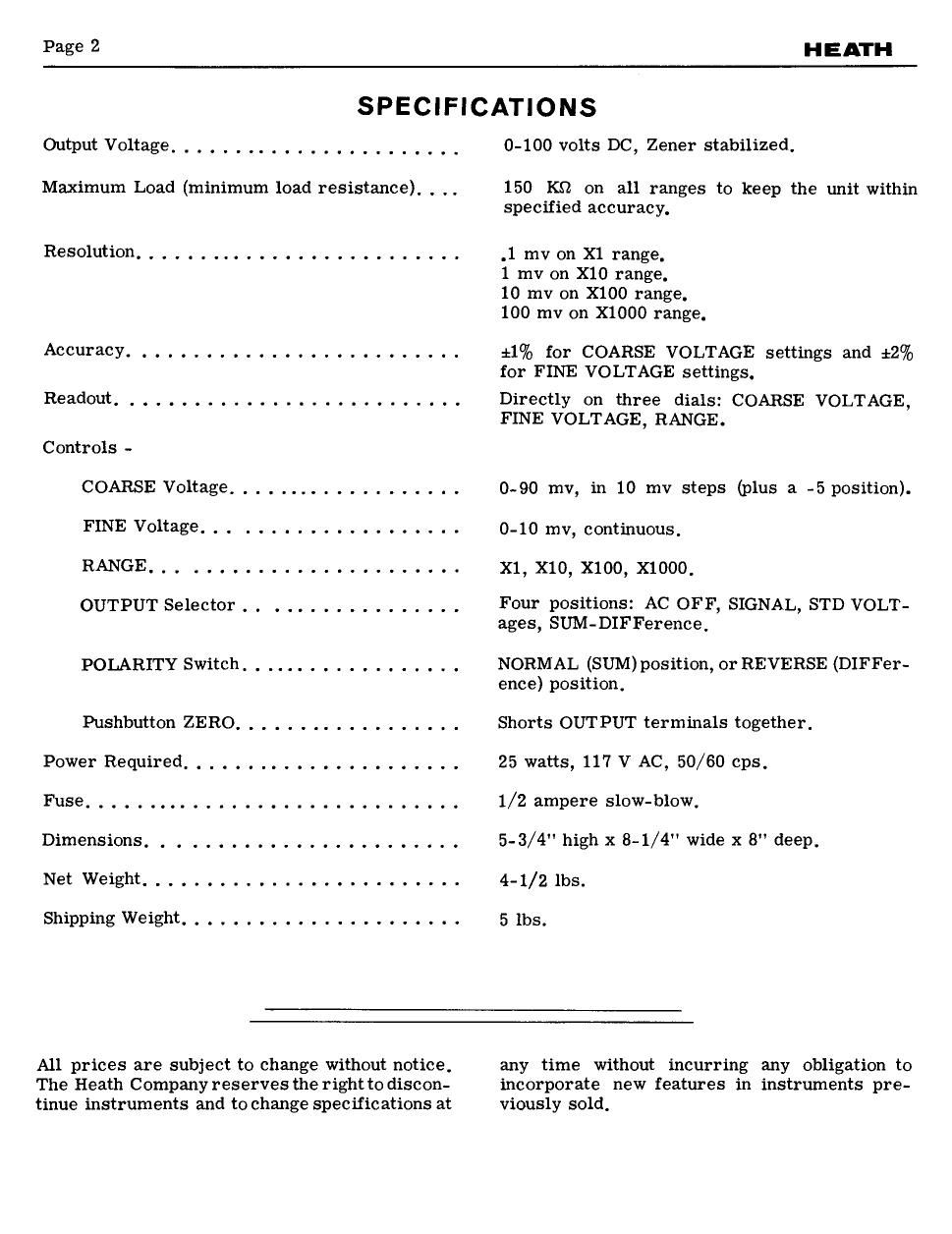

Page 2
HEATH
SPECIFICATIONS
OutputVoltage.... ......
Maximum Load (minimum load resistance). . . .
Resolution
Accuracy..........................
Readout......... .........
Controls-
COARSEVoltage...................
FINEVoltage ......
RANGE........ ......
0UTPUTSelector..
POLARITYSWitCh.......,..........
Pushbutton ZERO. . . . ..............
POWGrRequiIEd......................
Fuse ...... .......
Dimensions........................
Net Weight........
ShippingWeightHHH... .......
0-100 volts DC, Zener stabilized,
150 Kn on all ranges to keep the unit within
specified accuracy.
.1 mv on X1 range.
1 mv on X10 range,
10 mv on X100 range.
100 mv on X1000 range.
11% for COARSE VOLTAGE settings and i2%
for FINE VOLTAGE settings.
Directly on three dials: COARSE VOLTAGE,
FINE VOLTAGE, RANGE.
0-90 mv, in 10 mv steps (plus a -5 position).
0-10 mv, continuous.
x1, x10, x100, x1000.
Four positions: AC OFF, SIGNAL, STD VOLT-
ages, SUM-DIFFerence,
NORMAL (SUM)position, or REVERSE (DIFFer~
ence) position.
Shorts OUTPUT terminals together.
25 watts, 117 V AC, 50/60 cps.
1/2 ampere slow-blow.
5-3/4" high x 8-1/4 Wide x 8" deal).
4-1/2 lbs.
5 lbs.
All prices are subject to change without notice.
The Heath Company reserves the right to discon-
tinue instruments and to change specifications at
any time without incurring any obligation to
incorporate new features in instruments pre-
viously sold.
