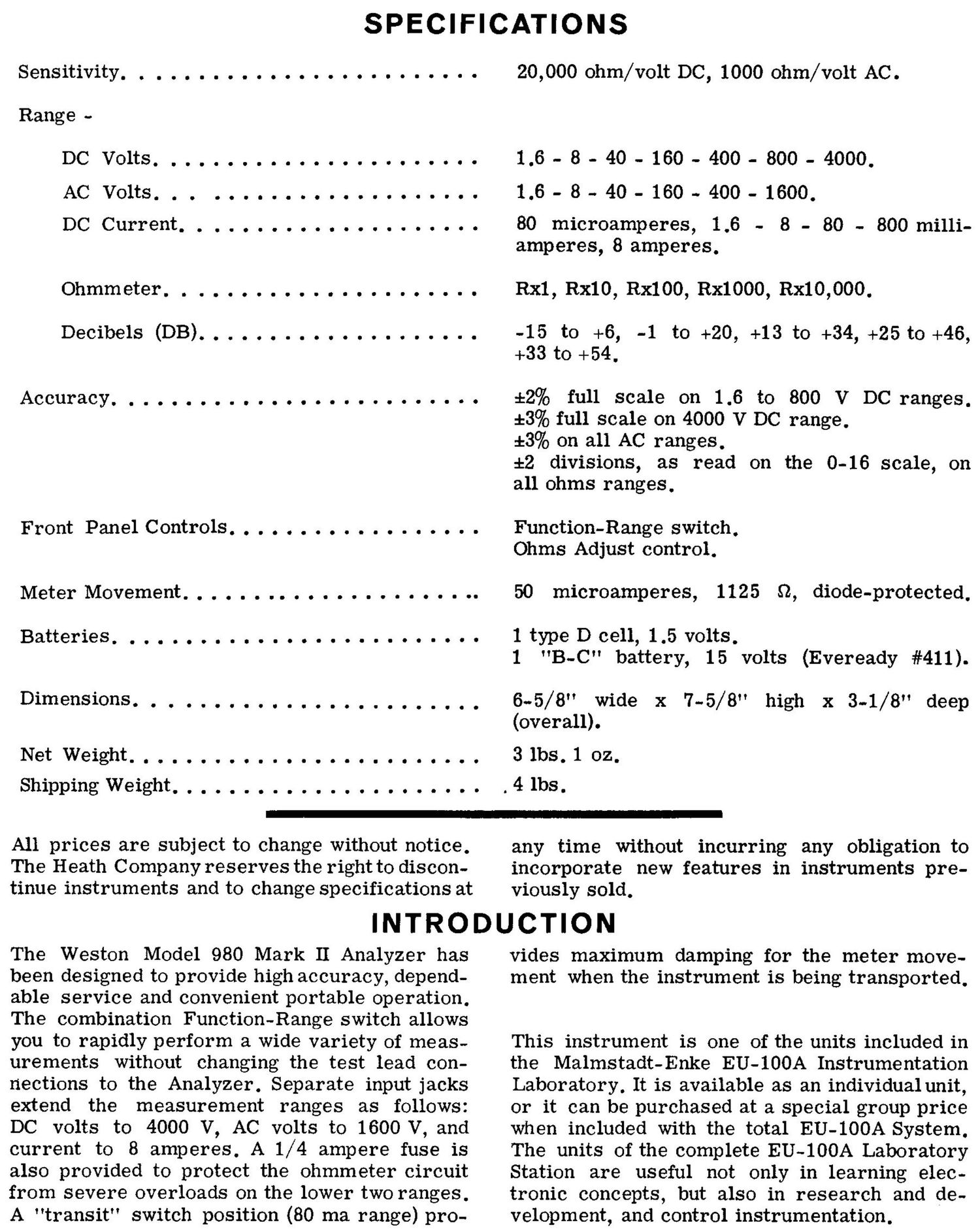

SPECIFICATIONS

Sensitivity................... ......

Range ~

DCVoltS... ..............
ACVOltS...oooocoaoooooooooooo

DCCurrent........... ........ .

Ohmmeter...... .....
Decibels (DB)............ ........
Accuracy................. ........

Front PanelControls.................

Meter Movement.......... .......

Batteries.........................

DimensionS. . . . . . . . . .

NetWeight.. ......

Shipping Weight ...... . ......... . .....

OOOOOOOOOOOOOO

20,000 ohm/ volt DC, 1000 ohm/ volt AC.

1.6 - 8 - 40 - 160 - 400 - 800 - 4000.
1.6 - 8 - 40 - 160 - 400 - 1600,

80 microamperes, 1.6 - 8 - 80 - 800 milli-
amperes, 8 amperes.

Rxl, ino, inoo, inooo, Rx10,000.

-15 to +6, -1 to +20, +13 to +34, +25 to +46,
+33 to +54.

52% full scale on 1.6 to 800 V DC ranges.
43% full scale on 4000 V DC range.

43% on all AC ranges,

+2 divisions, as read on the 0-16 scale, on
all ohms ranges.

Function-Range switch,
Ohms Adjust control.

50 microamperes, 1125 Q, diode-protected.

1 type D cell, 1.5 volts,
1 B-C" battery, 15 volts (Eveready #411).

6-5/8" wide x 7-5/8" high x 3-1/8" deep
(overall).

3 lbs. 1 oz,

,4 lbs.

All prices are subject to change without notice.
The Heath Company reserves the right to discon-

tinue instruments and to change specifications at

any time without incurring any obligation to
incorporate new features in instruments pre-
viously sold,

INTRODUCTION

The Weston Model 980 Mark II Analyzer has
been designed to provide high accuracy, depend-
able service and convenient portable operation.
The combination Function-Range switch allows
you to rapidly perform a wide variety of meas-
urements without changing the test lead con-
nections to the Analyzer. Separate input jacks
extend the measurement ranges as follows:
DC volts to 4000 V, AC volts to 1600 V, and
current to 8 amperes. A 1/4 ampere fuse is
also provided to protect the ohmmeter circuit
from severe overloads on the lower two ranges,
A "transit" switch position (80 ma range) pro-

vides maximum damping for the meter move-
ment when the instrument is being transported,

This instrument is one of the units included in
the Malmstadt-Enke EU-lOOA Instrumentation
Laboratory. It is available as an individual unit,
or it can be purchased at a special group price
when included with the total EU-lOOA System.
The units of the complete EU-lOOA Laboratory
Station are useful not only in learning elec-
tronic concepts, but also in research and de-
velopment, and control instrumentation,

Page 2

Rt

+v SWITCH
+MAO- s: s
OHMS PO flow

.' srézzx::~'~:-:v "
. .

1600 EC

.1

r-*-~--

+8AMPS
O

COMMON 1*
O

NOTEStEACH LETTERS!) AREA REPRESENTS AN INDNIOUAL FOIL
ON THE CIRCUYT BOARD.SEE CIRCUIT SOARD SWITCH DE
TAILS 0N ADJACENT PAGE.

THE SHADED AREAs leCATE THE FOILS THAT MU. 8E
CONNECTED IN THE CIRCUIT IN EACH SWITCH POSITION.
