HEATH

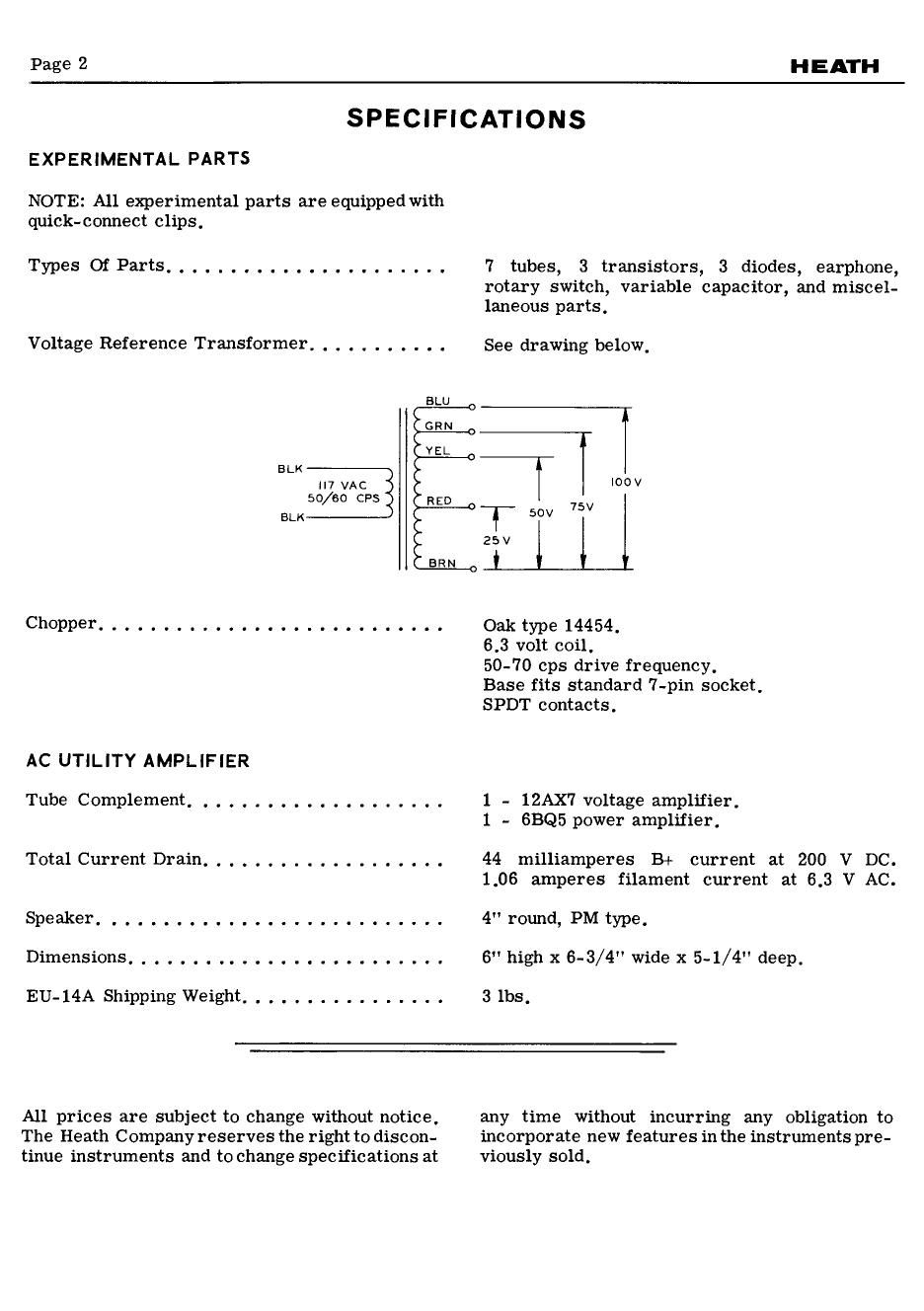

SPECIFICATIONS

EXPERIMENTAL PARTS

NOTE: All experimental parts are equipped with
quick-connect clips.

TypesOfPartS......................

Voltage Reference Transformer, , , . . . . . . . .

7 tubes, 3 transistors, 3 diodes, earphone,
rotary switch, variable capacitor, and miscel-
laneous parts,

See drawing below,

BLU 7
sum _
YEL _
ELK
/7 VAC E Ioov
so so cps Rm
75v
ELK 1 50v
25v
ERN o I

Chopper........................

AC UTILITY AMPLIFIER

TubeComplement....................

TotalCurrentDrain...................

Speaker...........................
Dimensions........................

EU-14A Shipping Weight, , , , , ,

Oak type 14454.

6.3 volt coil,

50-70 cps drive frequency.
Base fits standard 7-pin socket.
SPDT contacts.

1 - 12AX'? voltage amplifier.
1 - 6BQ5 power amplifier.

44 milliamperes B+ current at 200 V DC.
1.06 amperes filament current at 6.3 V AC.

4" round, PM type.
6" high x 6-3/4" wide x 5-1/4" deep.

3 lbs.

All prices are subject to change without notice,
The Heath Company reserves the right to discon-
tinue instruments and to change specifications at

any time without incurring any obligation to
incorporate new features in the instruments pre-
viously sold.

Page 2

HEATH

Page 3

3.2
SPEAKER
O
3 SCHEMAIIC OF THE
HEATH SCIENCE SERIES
Ac UTILITY AMPLIFIER
PART OF MODEL Eu-I4A

INTRODUCTION

The special parts supplied with this kit will be
used with the Experimental Chassis (Model
EU-lSA) to complete the experiments in the book
"Electronics For Scientists."

Common types of tubes and transistors areused
in this kit. These same tubes can also be used
as replacements in several other units in the
EU-lOOA system, including the Servo Recorder
and Operational Amplifier, The chopper in this
kit can be used as areplacementfor the chopper
in the EUW-ZOA Recorder and in many experi~
mental circuits.

Also included in this kit are all necessaryparts
for a Utility Amplifier, including the speaker.
This Utility Amplifier is intended to give students

practice in soldering and layout of standard
parts, as well as to provide an auxiliary ampli-
fier for other experiments, The EUA-l4-1
accessory kit, available separately, contains
all parts listed in the Parts List for the
Utility Amplifier,

This kit is one of the units included in the Malm-
stadt-Enke EU-lOOA Instrumentation Labora-
tory. It is available as an individual unit, or it
can be purchased at a special group price
when included with the total EU-lOOA System.
The units of the complete EU-lOOA Laboratory
Station are useful not only in learning elec-
tronic concepts, but also in research and de-
velopment, and control instrumentation,
