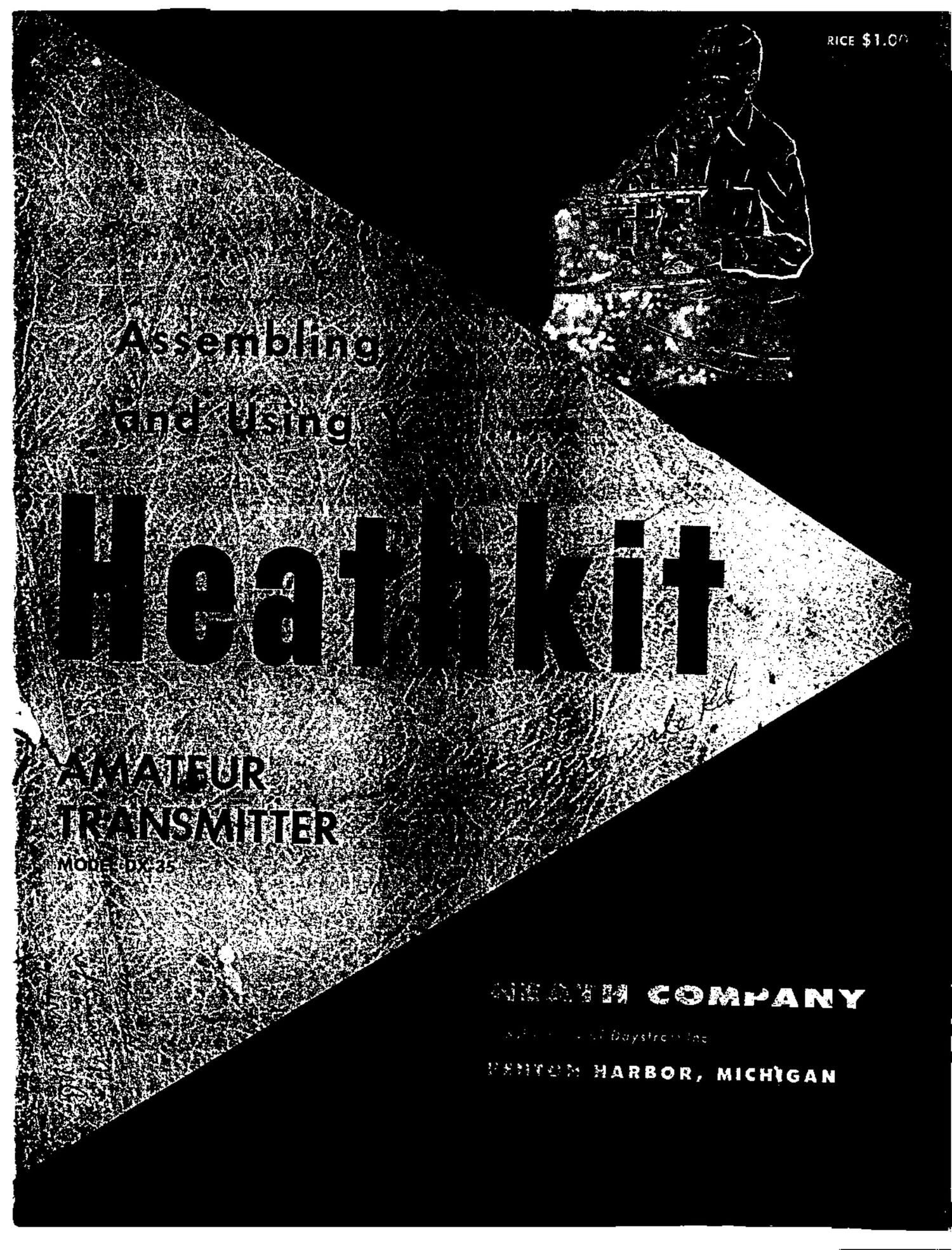

Heathkit DX 35 Assembly Manual
This is the 22 pages manual for Heathkit DX 35 Assembly Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Heathkit DX 35 Assembly Manual (Ocr-read)
Page 2
ASSEMBLY AND OPERATION OF THE
HEATHKIT AMATEUR TRANSMITTER
MODEL DX-35
SPECIFICATIONS
Power Input: ...... . . . . . . . . . . .. . . . . . . . . . . . . . 65 wattCW, 50 watt peak controlledcarrier phone
Output Impedancez. . . . . . . . . . .......... . ..... 50-1000 9 '
0utputCoupling:............................Pi network (coaxial)
Operation: .. . . . . . . . . . . .. ...... . . . . ........ Crystal-VFO, CW, Phone
andCoverage: ....... 80, 40, 20, 15,11, 10 meters
Tube Complementz. . . . . . . . . . . . . . . ....... . . . 5U4GB Rectifier
12AX7 Speech Amplifier
12AU7 Carrier Control, Modulator
12BY7 Crystal Oscillator
IZBY'? Buffer
6146 Final Amplifier _
Power Requirements:............. ......... . 115 volts AC, 60 cycles, 175 watt
CabinetSize:.............................. 13" wide x 8 1/2" high x 9" deep
NetWeight:........................... ..... 21 lbs.
ShippingWeight:............................26lbs.
