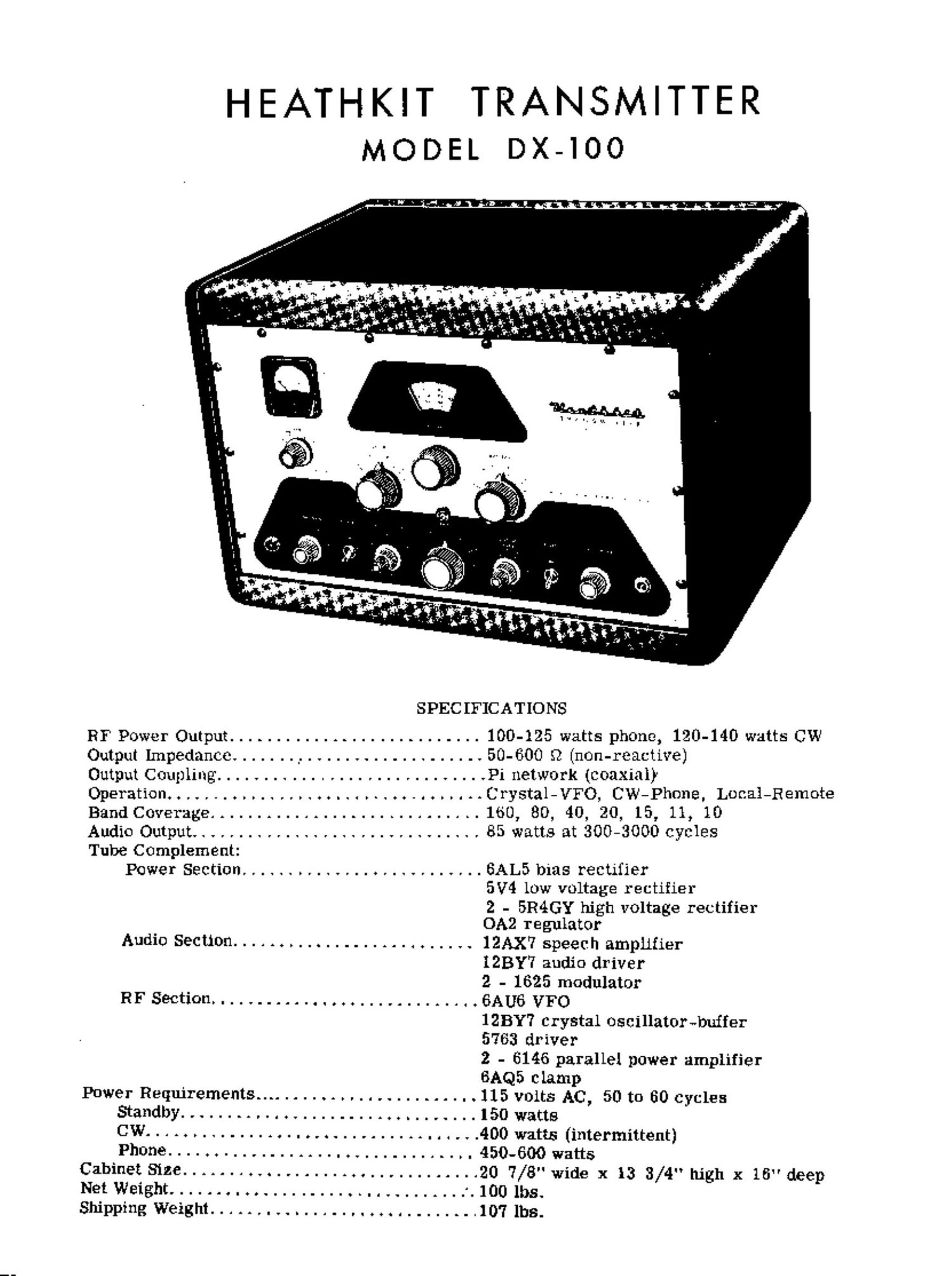

Page 1
HEATHKIT TRANSMITTER
MODEL DX-IOO
SPECIFICATIONS
RF Power Output ........................... 100-125 watts phone, 120-140 watts CW
Output Impedance ....... . .................... 50-600 Q [men-reactive)
Output Coupling ............................. Pi network (coaxial)
Operation .................................. Crystal-VFO, CW-Phone, Local-Remote
Band Coverage ............................. 160, 80, 40, 20, 15, 11, 10
Audio Output ............................... 85 watts at 300-3000 cycles
Tube COmplement:
Power Section ...... . ................... SALE) bias rectifier
5V4 low voltage rectifier
2 - 5R4GY high voltage rectifier
. 0A2 regulator
Audra Section ...... . . . . ................ 12AX7 speech amplifier
IZBY'? audio driver
2 - 1625 modulator
RF Saction. . ........... . ............... GAUG VFO
IZBY'? crystal Oscillator-buffer
5763 driver
2 - 6146 parallel power amplifier
BAQS clamp
Power Requirements ....................... . . 115 volts AC, 50 to 60 Cycles
Standby .......... . ..................... 150 watts
CW .............. . . . . . . .......... . . t . . .400 watts {intermittent}
Phone ............................... . . 450-600 watts
Cabmet Size ......... . ...................... 20 7/ " wide x 13 3/4" high x 16" deep
Net Weight ...... . . . . ...................... . 100 lbs.
Shipping Weight ...... . ........ . . . . . . ........ 107 lbs.
