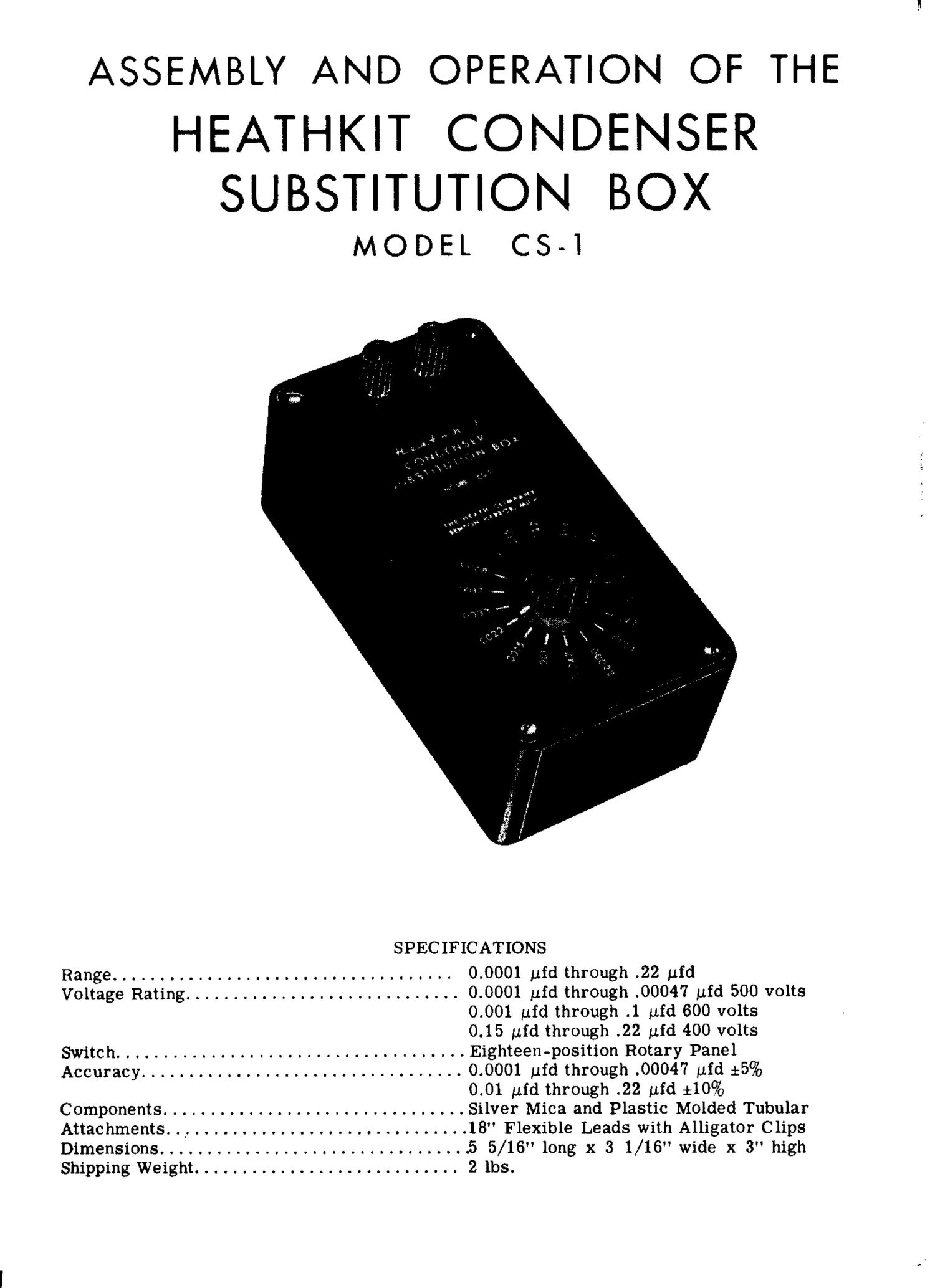

ASSEMBLY AND OPERATION OF THE
HEATHKIT CONDENSER
SUBSTITUTION BOX
MODEL CS-l
SPECIFICATIONS
Range .................................... 0.0001 ufd through .22 ufd
Voltage Rating ............................. 0.0001 ufd through .00047 Jufd 500 volts
0.001 ufd through .1 ufd 600 volts
0.15 ufd through .22 ufd 400 volts
Switch ..................................... Eighteen-position Rotary Panel
Accuracy .................................. 0.0001 ufd through .0004? ufd i5%
0.01 ufd through .22 did i10%
Components ................................ Silver Mica and Plastic Molded Tubular
Attachments. ., .............................. 18" Flexible Leads with Alligator Clips
Dimensions ................................ .5 5/16" long x 3 1/16" wide x 3 high
Shipping Weight ............................ 2 lbs.
Page 2
\ FIBER FLAT WASHER
FIBER SHOULDER
WASHER
CONTROL s / m
LOCKWASHER \i x;;;::/\g j;
PLASTIC...» l \
INSULATION '
SHEET II 1,!
I
LI,"
0) i
g
1
FIGURE I
