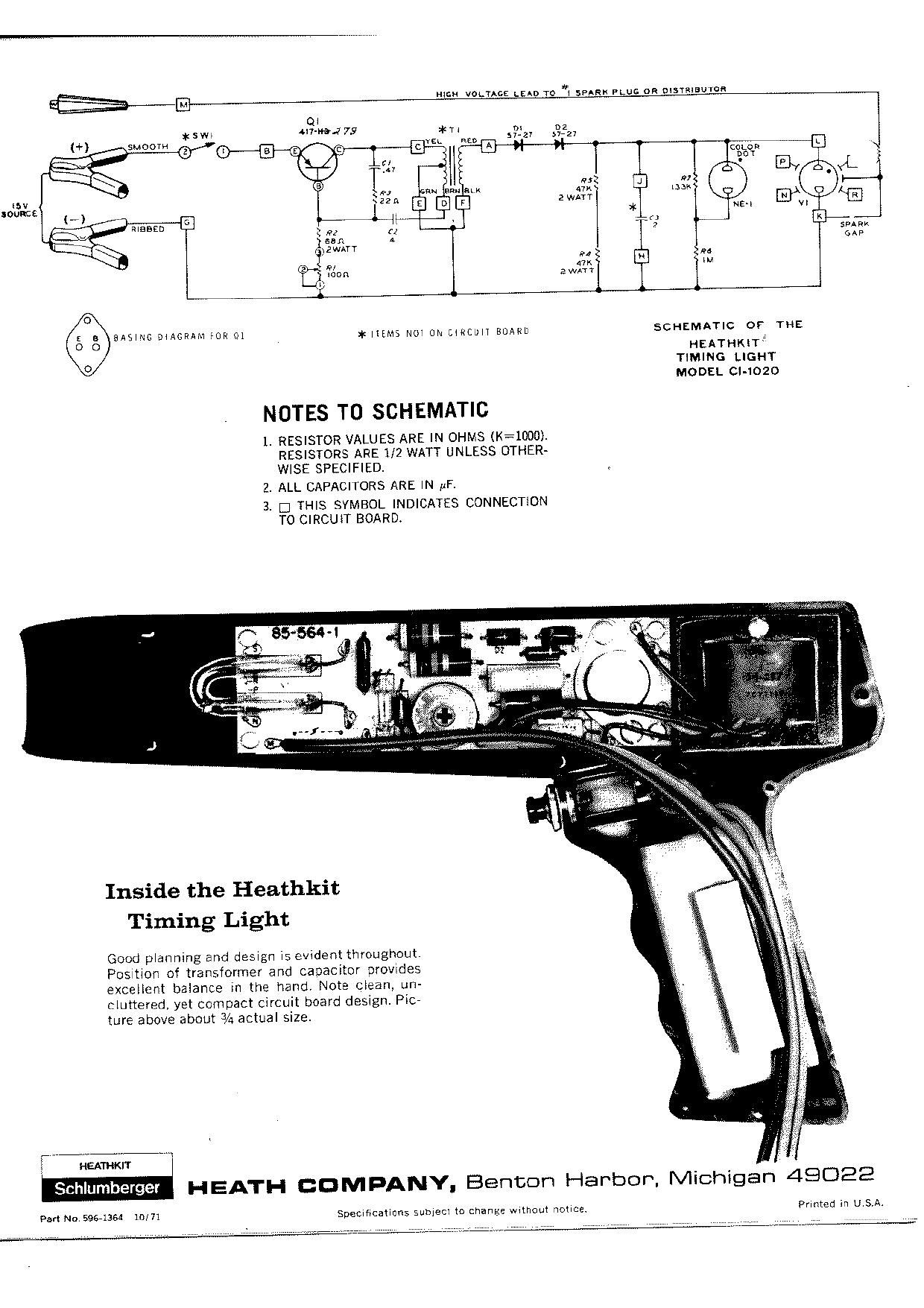

SCHEMATIC OF THE
HEATHKIT'I
o TIMING LIGHT
MODEL CI-rozo
NOTES TO SCHEMATIC
l. RESISTOR VALUES ARE IN OHMS (K=1000).
RESISTORS ARE 1/2 WATT UNLESS OTHER-
WISE SPECIFIED.
Z. ALL CAPACITORS ARE IN F.
3. D THIS SYMBOL INDICATES CONNECTION
T0 CIRCUIT BOARD.
E) a QASING DIAGRAMIOR 01 *IEEMS NOI ON CIRCUIT BDAMJ
Inside the Heathkit
Timing Light
Good warming and design Is ewdent throughom.
PosItIon of transformer and capacitor provides
excellenI balance in the hand. Note ctean, un-
cluttered, yet compact circuit board design. Pic-
ture above about 3/15 actual size
3 HEATHKIT
HEATH cDMPANY. Benton Harbor. Michigan 49022
Par! Nu, 59671364 10/71 Spemhcahons sumac! (0 change wvlhom notice. Printed in USA,
