Extracted text from Heathkit CI 1020 Schematic 2 (Ocr-read)
Page 1

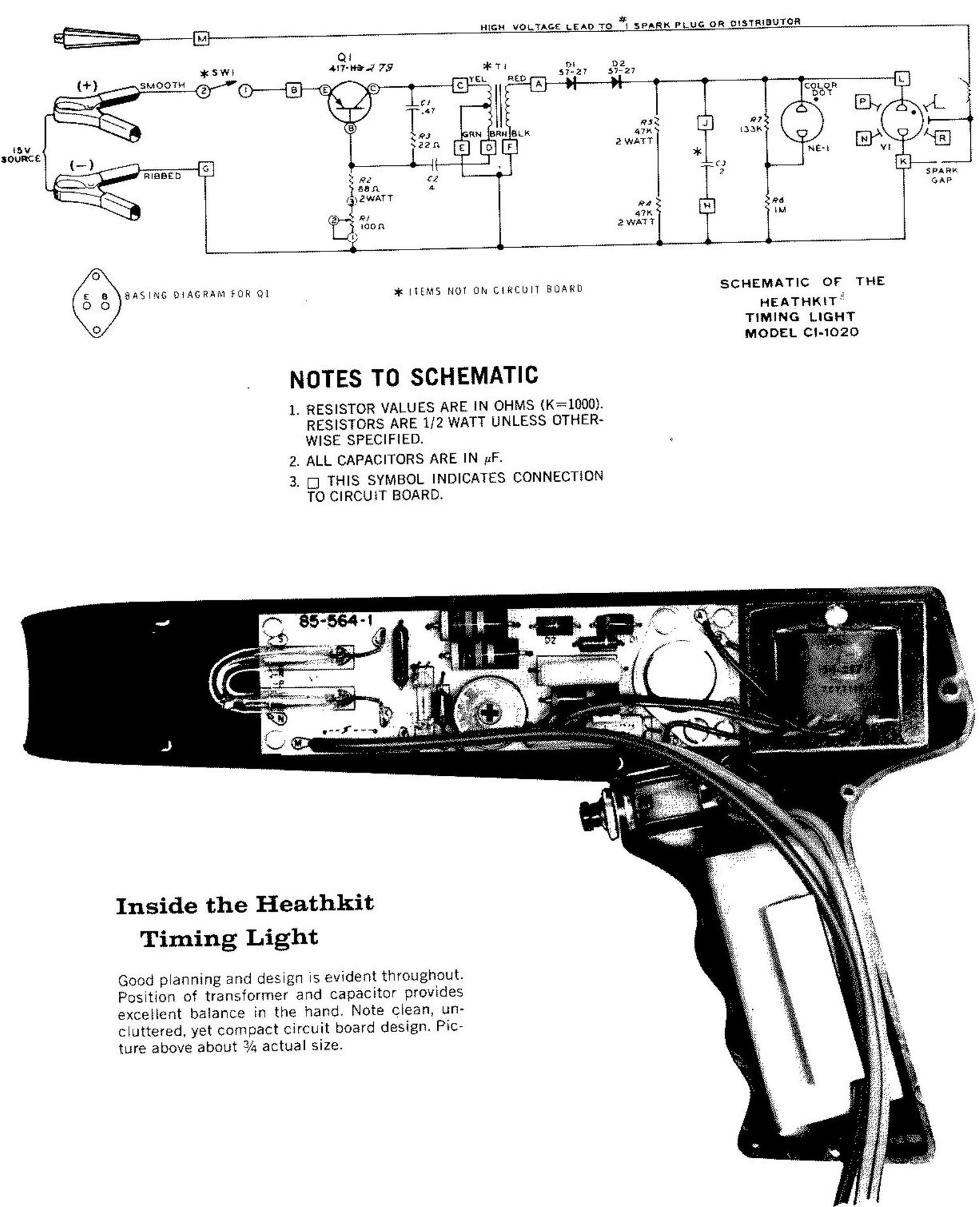

ix
HIGN VOLTAGE LEAD TO I SPARK PLUG 0R DISTRIBUTOR
Q1
4:7'H9J 7,9
o
z a ansmc DIAGRAM 50R 01 V at: rims Nor 0N CIRCUIT BOARD SCHEMATIC 0? THE
HEATHKITE
o TIMING LIGHT
MODEL (II-1020
NOTES TO SCHEMATIC
1. RESISTOR VALUES ARE IN OHMS (K=1000).
RESISTORS ARE U2 WATT UNLESS OTHER-
WISE SPECIFIED.
2. ALL CAPACITORS ARE IN pF.
3. [j "{HIS SYMBOL INDICATES CONNECTION
TO CIRCUIT BOARD.
Inside the Heathkit
Timing Light
Good planning and design is evident throughout.
Position of transformer and capacitor provides
exceIIent baiance in the hand. Note Qiean, un-
cluttered, yet compact circuit board design. Pic-
ture above about 3/4 actual size.
