Page 1

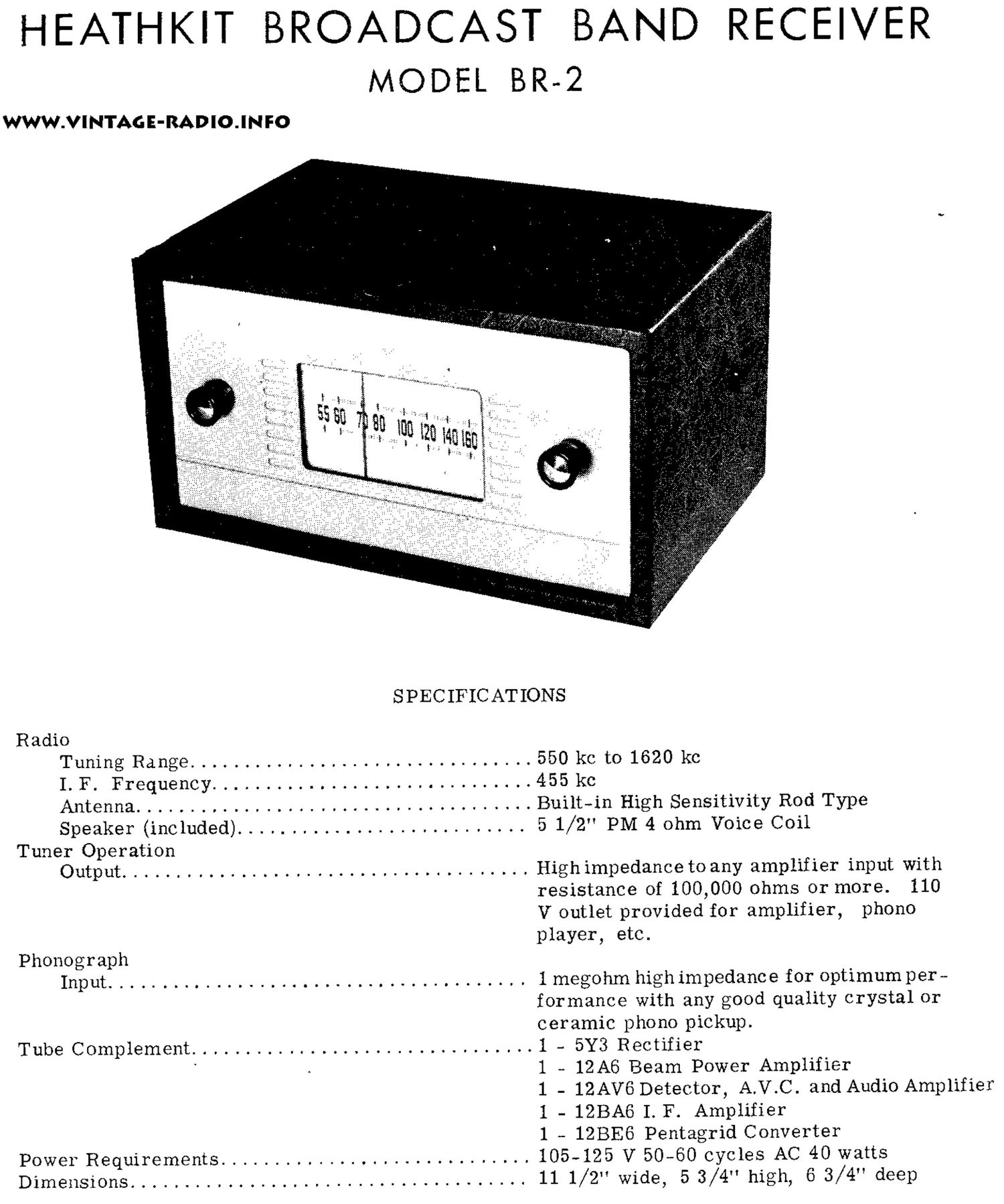

HEATHKIT BROADCAST BAND RECEIVER
MODEL BR-2
WWW.VINTAGE-RADIO.INFO
SPECIFICATIONS
Radio
Tuning Range ................................ 550 kc to 1620 kc
I. F. Frequency .............................. 455 kc
Antenna ..................................... Built-in High Sensitivity Rod Type
Speaker (included) ........................... 5 1/2 PM 4 ohm Voice Coil
Tuner Operation
Output ...................................... High impedance to any amplifier input with
resistance of 100,000 ohms or more. 110
V outlet provided for amplifier, phono
player, etc.
Phonograph
Input ....................................... 1 megohm high impedance for optimum per-
formance with any good quality crystal or
ceramic phono pickup.
Tube Complement ................................ 1 - 5Y3 Rectifier
' l - 12A6 Beam Power Amplifier
1 - 12AV6 Detector, A.V.C. and Audio Amplifier
I - 12BA6 I. F. Amplifier
1 - 12B136 Pentagrid Converter
Power Requirements ............................. 105-125 V 50-60 cycles AC 40 watts
Dimensions ..................................... 11 1/2 wide, 5 3/4 high, 6 3/4 deep
